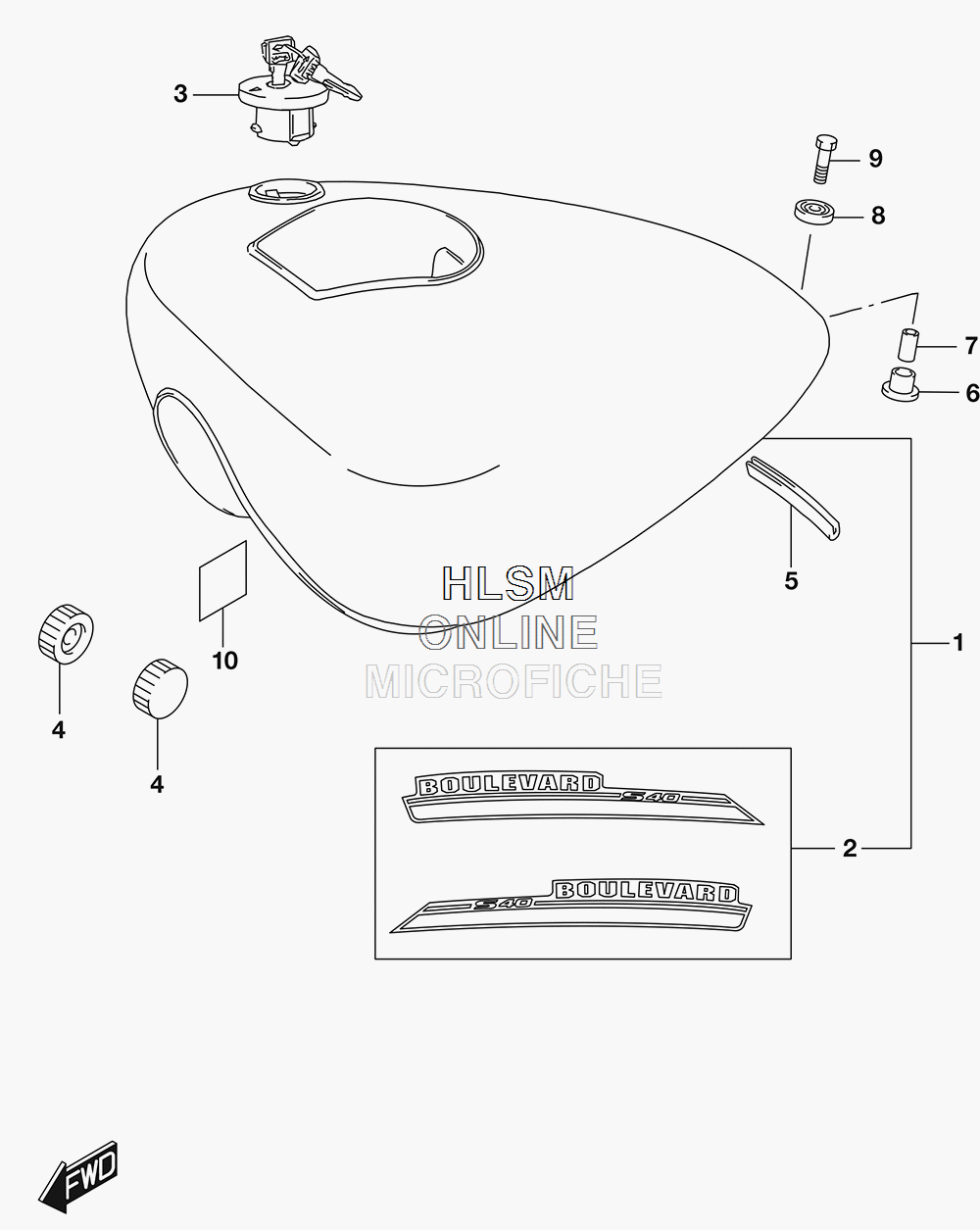

FUEL TANK (CANADA) для Suzuki LS650B S40 - 2017 года выпуска

  • №
    Артикул
    Название
  • 1-1
    44100-24C90-YUK TANK ASSY, FUEL (FOR YUK - ORANGE)
    TANK ASSY, FUEL (FOR YUK - ORANGE)
  • 1-2
    44100-24C90-YVB TANK ASSY, FUEL (FOR YVB - BLACK)
    TANK ASSY, FUEL (FOR YVB - BLACK)
  • 2-1
    68110-24C20-BE1 ...TAPE SET, FUEL TANK (BE1 - BLACK/GOLD FOR REF 1-1 YUK - ORANGE)
    ...TAPE SET, FUEL TANK (BE1 - BLACK/GOLD FOR REF 1-1 YUK - ORANGE)
  • 2-2
    68110-24C20-ELB ...TAPE SET, FUEL TANK (ELB - GRAY/SILVER FOR REF 1-2 YVB - BLACK)
    ...TAPE SET, FUEL TANK (ELB - GRAY/SILVER FOR REF 1-2 YVB - BLACK)
  • 3
    44200-24860 CAP SET, FUEL TANK
    CAP SET, FUEL TANK
  • 4
    09329-10016 CUSHION
    CUSHION
  • 5
    44552-24B10 MOLDING, FUEL TANK REAR
    MOLDING, FUEL TANK REAR
  • 6
    09320-10020 CUSHION
    CUSHION
  • 7
    09180-06271 SPACER (6.5X9X18)
    SPACER (6.5X9X18)
  • 8
    09320-14013 CUSHION
    CUSHION
  • 9
    01500-0630A BOLT
    BOLT
  • 10
    44283-40H00 PROTECTOR, FUEL TANK
    PROTECTOR, FUEL TANK
