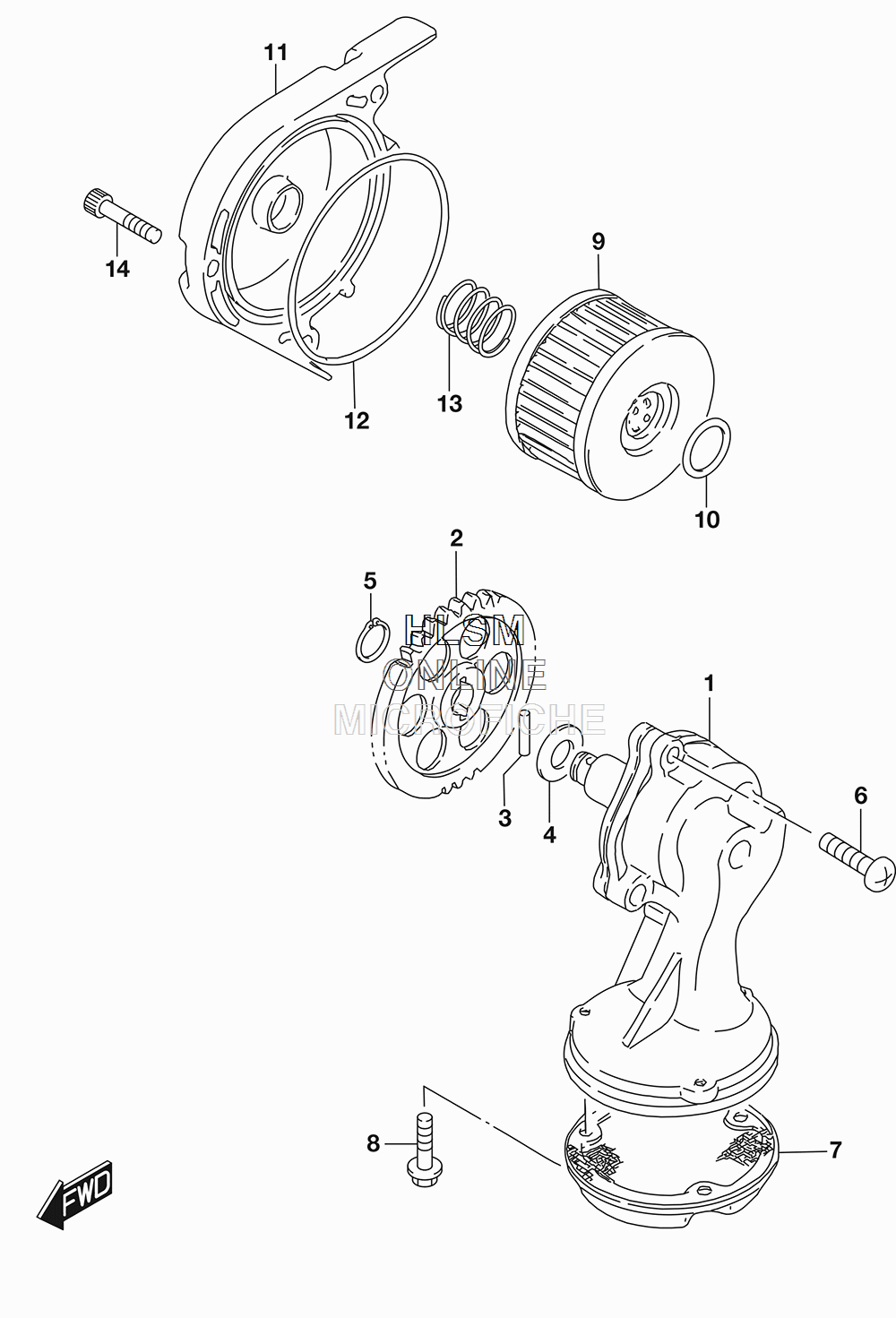

OIL PUMP для Suzuki LS650B S40 - 2017 года выпуска`
-
№АртикулНазвание
-
116400-24B00 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
216331-24B00 GEAR, DRIVEN (NT:35)GEAR, DRIVEN (NT:35)
-
309261-04009 PIN (4X15.8)PIN (4X15.8)
-
409181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
508331-31109 CIRCLIPCIRCLIP
-
602112-0625A SCREWSCREW
-
716520-24B00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
801580-0512A BOLTBOLT
-
916510-37450 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1009280-15007 O RING (D:2.4,ID:15.8)O RING (D:2.4,ID:15.8)
-
1116512-24B10 CAP, OIL FILTERCAP, OIL FILTER
-
1209280-72001 O RING (D:2.4,ID:73)O RING (D:2.4,ID:73)
-
1309440-21006 SPRINGSPRING
-
1409106-06090 BOLT (6X25)BOLT (6X25)
