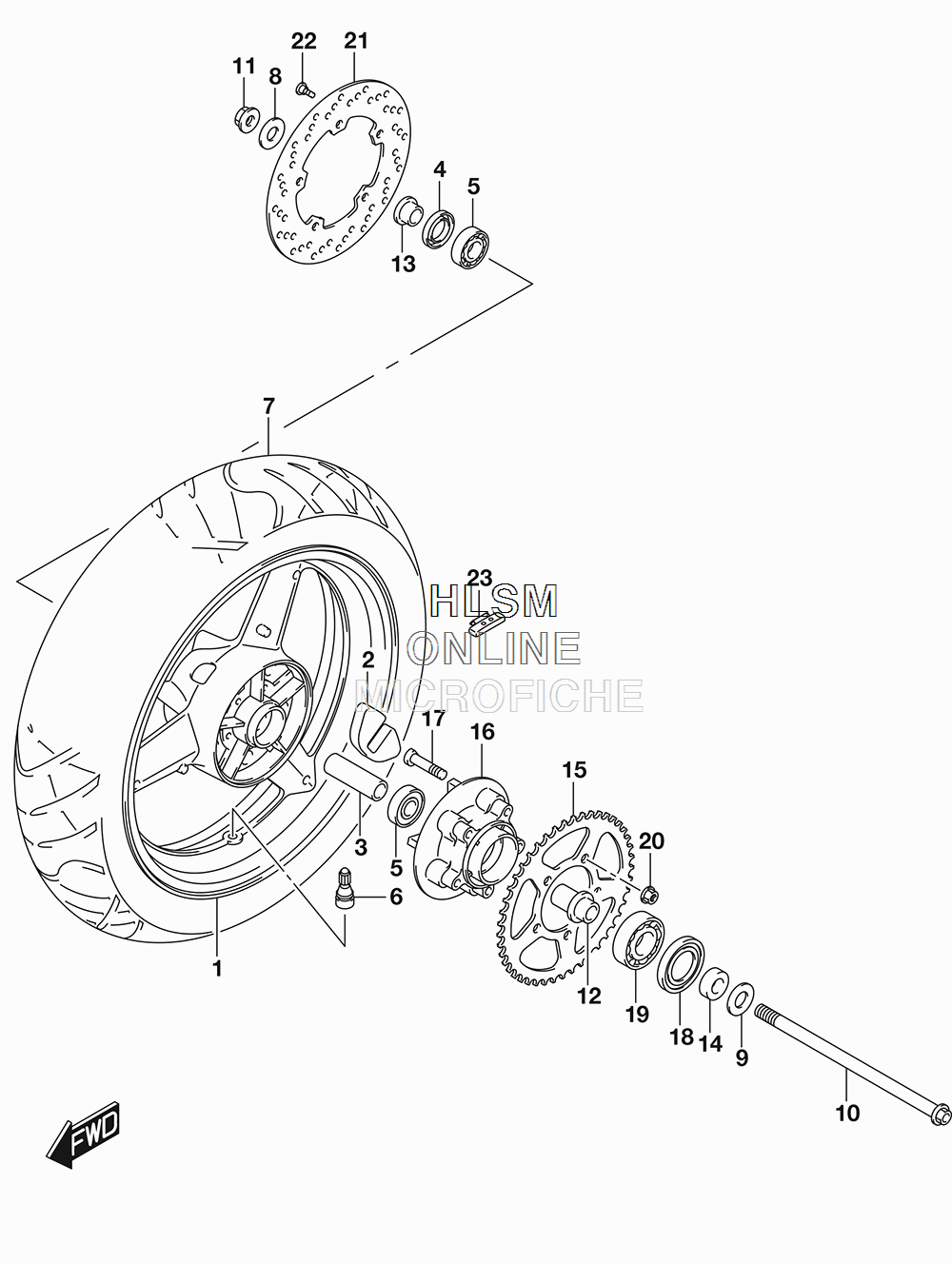

WHEEL - REAR для Suzuki GW250Z - 2017 года выпуска`
-
№АртикулНазвание
-
164111-48H00-YGA WHEEL, REAR (17M/CXMT4.00) (YGA - BLACK)WHEEL, REAR (17M/CXMT4.00) (YGA - BLACK)
-
264651-48H00 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
309180-17116 SPACER (17.5X25X78)SPACER (17.5X25X78)
-
409283-25L02 OIL SEAL (25X47X8)OIL SEAL (25X47X8)
-
508123-63037 BEARINGBEARING
-
643130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
765110-48H00 TIRE, REAR (140/70-17M/C 66H IRC RX-01R) (IRC)TIRE, REAR (140/70-17M/C 66H IRC RX-01R) (IRC)
-
861445-48H00 WASHER, REAR AXLE (RH)WASHER, REAR AXLE (RH)
-
961455-48H00 WASHER, REAR AXLE (LH)WASHER, REAR AXLE (LH)
-
1064711-48H10 AXLE, REARAXLE, REAR
-
1164721-48H00 NUT, REAR AXLENUT, REAR AXLE
-
1264733-10D00 RETAINER, REAR SPROCKET DRUMRETAINER, REAR SPROCKET DRUM
-
1364741-48H00 SPACER, REAR AXLE (RH)SPACER, REAR AXLE (RH)
-
1464751-48H00 SPACER, REAR AXLE (LH)SPACER, REAR AXLE (LH)
-
1564511-48H10 SPROCKET, REAR (NT:46)SPROCKET, REAR (NT:46)
-
1664611-17C10 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1709119-10088 BOLT (10X43.5)BOLT (10X43.5)
-
1809285-35L01 OIL SEALOIL SEAL
-
1909262-25073 BEARING (25X62X17)BEARING (25X62X17)
-
2008319-3110A NUTNUT
-
2169211-48H00 DISC, REAR BRAKEDISC, REAR BRAKE
-
2269222-48H00 BOLT, REAR BRAKE DISCBOLT, REAR BRAKE DISC
-
23-155411-22H00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
23-255412-22H00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
23-355413-22H00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
