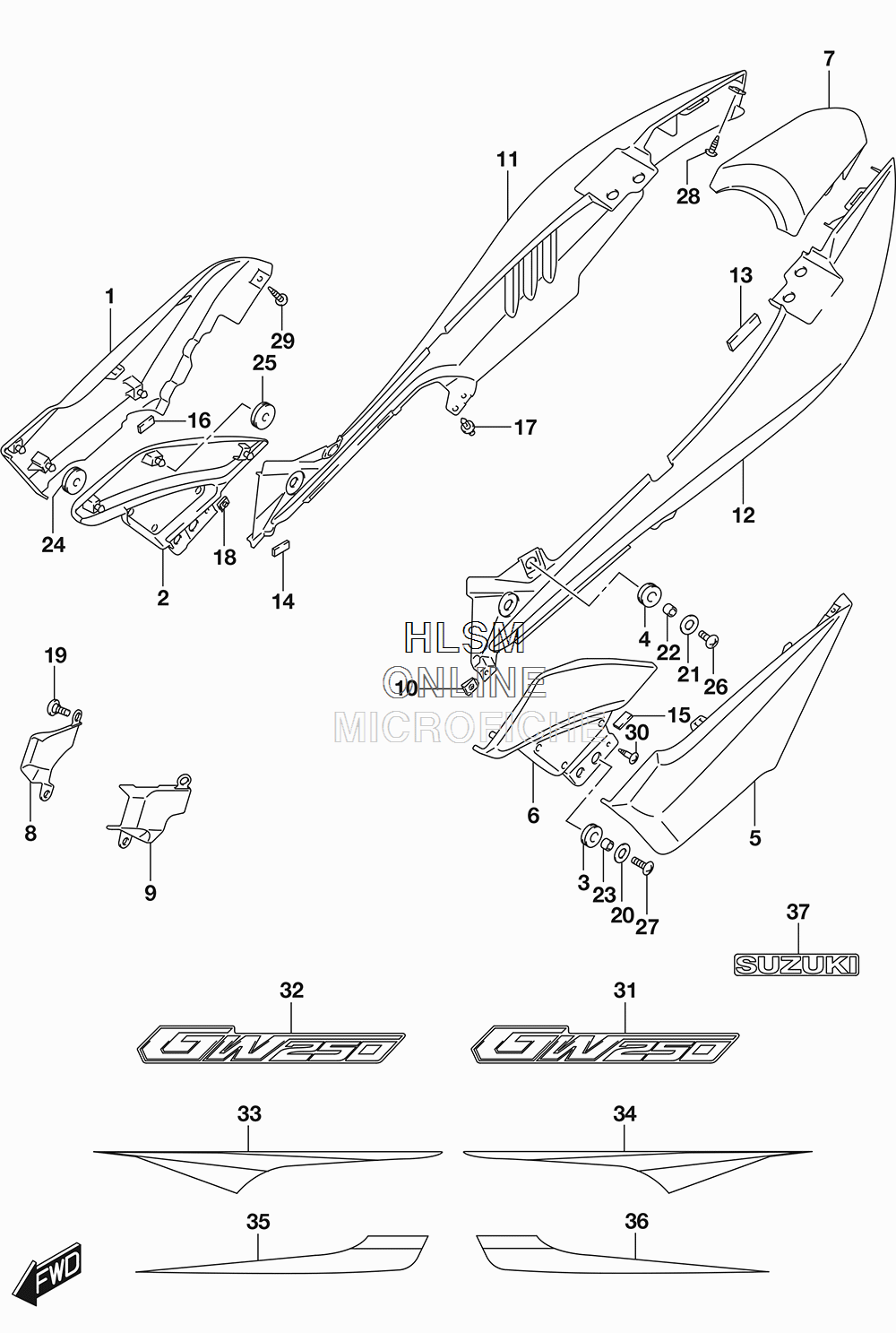

FRAME COVER (CANADA) для Suzuki GW250Z - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    47111-48H00-YAY COVER, FRAME (RH) (YAY - BLACK)
    COVER, FRAME (RH) (YAY - BLACK)
  • 2
    47121-48H00-AQ8 COVER, FRAME FRONT (RH) (AQ8 - BLACK/BLACK)
    COVER, FRAME FRONT (RH) (AQ8 - BLACK/BLACK)
  • 3
    47161-48H00 CUSHION, COVER FRONT
    CUSHION, COVER FRONT
  • 4
    47161-48H00 CUSHION, COVER UPPER
    CUSHION, COVER UPPER
  • 5
    47211-48H00-YAY COVER, FRAME (LH) (YAY - BLACK)
    COVER, FRAME (LH) (YAY - BLACK)
  • 6
    47221-48H00-AQ8 COVER, FRAME FRONT (LH) (AQ8 - BLACK/BLACK)
    COVER, FRAME FRONT (LH) (AQ8 - BLACK/BLACK)
  • 7
    47311-48H00-YSF COVER, FRAME UPPER CENTER (YSF - BLUE)
    COVER, FRAME UPPER CENTER (YSF - BLUE)
  • 8
    47351-48H00 COVER, FRAME HEAD (RH)
    COVER, FRAME HEAD (RH)
  • 9
    47361-48H00 COVER, FRAME HEAD (LH)
    COVER, FRAME HEAD (LH)
  • 10
    47399-48H00 NUT
    NUT
  • 11
    47831-48H00-YSF COVER, FRAME UPPER (RH) (YSF - BLUE)
    COVER, FRAME UPPER (RH) (YSF - BLUE)
  • 12
    47841-48H00-YSF COVER, FRAME UPPER (LH) (YSF - BLUE)
    COVER, FRAME UPPER (LH) (YSF - BLUE)
  • 13
    47845-48H00 CUSHION, COVER UPPER REAR
    CUSHION, COVER UPPER REAR
  • 14
    47846-48H00 CUSHION, COVER UPPER
    CUSHION, COVER UPPER
  • 15
    47846-48H00 CUSHION, COVER FRONT
    CUSHION, COVER FRONT
  • 16
    47846-48H00 CUSHION, FRAME COVER
    CUSHION, FRAME COVER
  • 17
    48292-32GH0 CLIP, COVER UPPER
    CLIP, COVER UPPER
  • 18
    93162-37G00 NUT, COVER FRAME FRONT
    NUT, COVER FRAME FRONT
  • 19
    47353-48H00 SCREW, FRAME HEAD COVER
    SCREW, FRAME HEAD COVER
  • 20
    09160-06077 WASHER (6.5X20X1.2)
    WASHER (6.5X20X1.2)
  • 21
    09160-06077 WASHER (6.5X20X1.2)
    WASHER (6.5X20X1.2)
  • 22
    09180-06283 SPACER (6.5X10X7)
    SPACER (6.5X10X7)
  • 23
    09180-06283 SPACER (6.5X10X7)
    SPACER (6.5X10X7)
  • 24
    09320-08018 CUSHION
    CUSHION
  • 25
    09320-08018 CUSHION
    CUSHION
  • 26
    02142-0620A SCREW
    SCREW
  • 27
    02142-0620A SCREW
    SCREW
  • 28
    03541-0516A SCREW
    SCREW
  • 29
    03541-0516A SCREW
    SCREW
  • 30
    03541-0516A SCREW
    SCREW
  • 31
    68131-48H60-JM4 EMBLEM, FRAME COVER (RH) (JM4 - GRAY/GRAY)
    EMBLEM, FRAME COVER (RH) (JM4 - GRAY/GRAY)
  • 32
    68141-48H60-JM4 EMBLEM, FRAME COVER (LH) (JM4 - GRAY/GRAY)
    EMBLEM, FRAME COVER (LH) (JM4 - GRAY/GRAY)
  • 33
    68135-48H00-AGQ TAPE, FRAME COVER (RH) (AGQ - BLUE/WHITE)
    TAPE, FRAME COVER (RH) (AGQ - BLUE/WHITE)
  • 34
    68145-48H00-AGQ TAPE, FRAME COVER (LH) (AGQ - BLUE/WHITE)
    TAPE, FRAME COVER (LH) (AGQ - BLUE/WHITE)
  • 35
    68136-48H00-AGQ TAPE, FRAME COVER FRONT (RH) (AGQ - BLUE/WHITE)
    TAPE, FRAME COVER FRONT (RH) (AGQ - BLUE/WHITE)
  • 36
    68146-48H00-AGQ TAPE, FRAME COVER FRONT (LH) (AGQ - BLUE/WHITE)
    TAPE, FRAME COVER FRONT (LH) (AGQ - BLUE/WHITE)
  • 37
    68281-48H00-YMD EMBLEM, "SUZUKI" (YMD - SILVER)
    EMBLEM, "SUZUKI" (YMD - SILVER)
