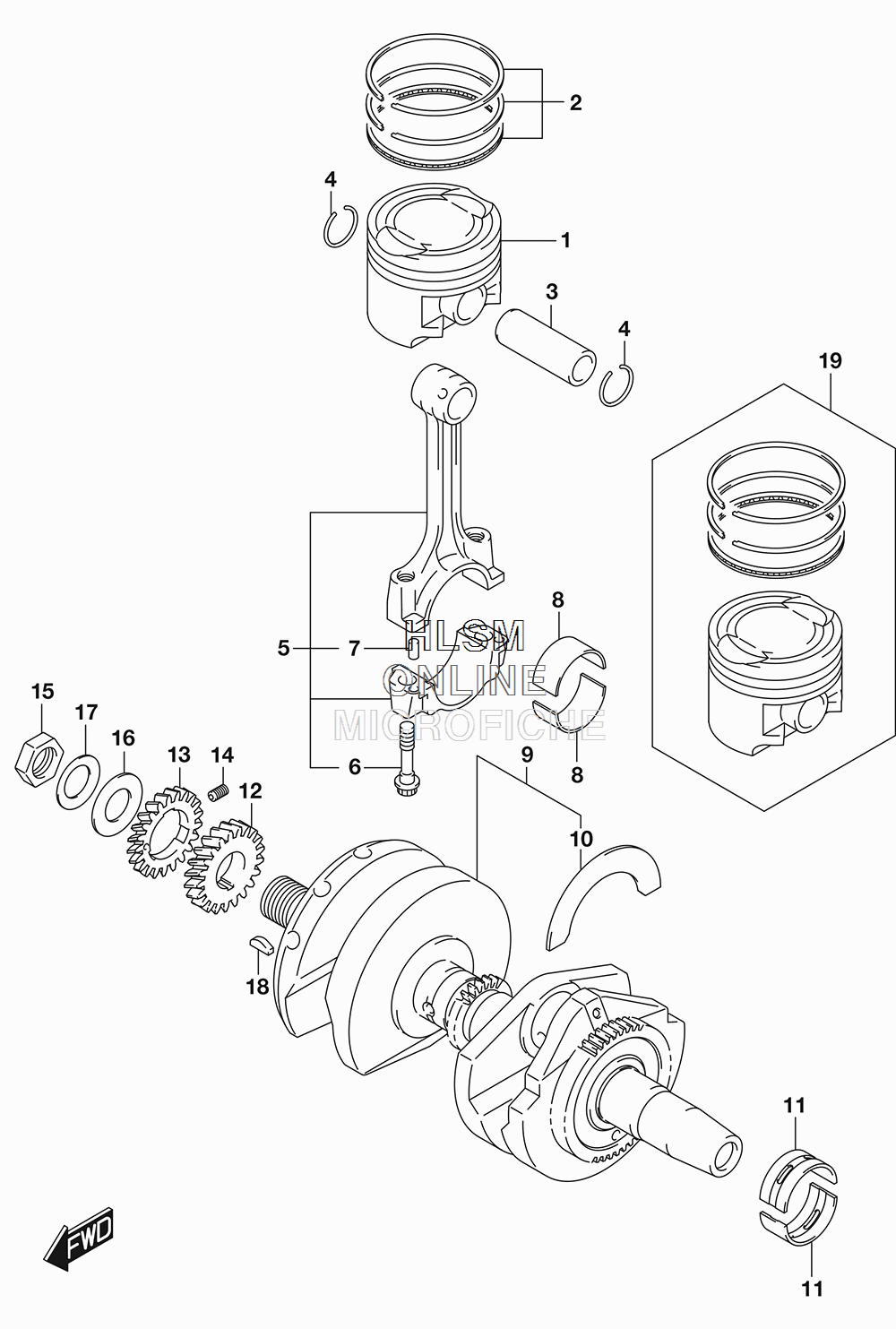

CRANKSHAFT W/ PISTON для Suzuki GW250Z - 2017 года выпуска`
-
№АртикулНазвание
-
112111-48H00-0F0 PISTON (YELLOW)PISTON (YELLOW)
-
212140-48H00 RING SET, PISTONRING SET, PISTON
-
312151-48H00 PIN, PISTONPIN, PISTON
-
409381-15001 CIRCLIPCIRCLIP
-
512160-48H00 CONNROD ASSYCONNROD ASSY
-
612163-35F00 ...BOLT, CONNROD...BOLT, CONNROD
-
704221-04089 ...PIN...PIN
-
8-112164-39F00-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
8-212164-39F00-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
8-312164-39F00-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
8-412164-39F00-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
912200-48842 CRANKSHAFT SETCRANKSHAFT SET
-
10-112228-17E00-0E0 ...BEARING, CRANK THRUST (YELLOW)...BEARING, CRANK THRUST (YELLOW)
-
10-212228-17E00-0F0 ...BEARING, CRANK THRUST (WHITE...BEARING, CRANK THRUST (WHITE
-
10-312228-17E00-0G0 ...BEARING, CRANK THRUST (ORANGE)...BEARING, CRANK THRUST (ORANGE)
-
10-412228-17E00-0H0 ...BEARING, CRANK THRUST (PINK)...BEARING, CRANK THRUST (PINK)
-
10-512228-17E00-0J0 ...BEARING, CRANK THRUST (BROWN...BEARING, CRANK THRUST (BROWN
-
10-612228-17E00-0K0 ...BEARING, CRANK THRUST (PURPLE)...BEARING, CRANK THRUST (PURPLE)
-
10-712228-17E00-0L0 ...BEARING, CRANK THRUST (NO COLOR)...BEARING, CRANK THRUST (NO COLOR)
-
11-112229-48H10-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
11-212229-48H10-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
11-312229-48H10-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
11-412229-48H10-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
1221111-48H01 GEAR, PRIMARY DRIVE (NT:21)GEAR, PRIMARY DRIVE (NT:21)
-
1321112-48H00 GEAR, PRIMARY DRIVE NO.2 (NT:21)GEAR, PRIMARY DRIVE NO.2 (NT:21)
-
1421114-35C00 SPRING, PRI DRIVE GEARSPRING, PRI DRIVE GEAR
-
1509140-18023 NUTNUT
-
1609160-18039 WASHER (18X36X1.5)WASHER (18X36X1.5)
-
1709164-18012 WASHERWASHER
-
1809420-04008 KEYKEY
-
1912100-48H00-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
