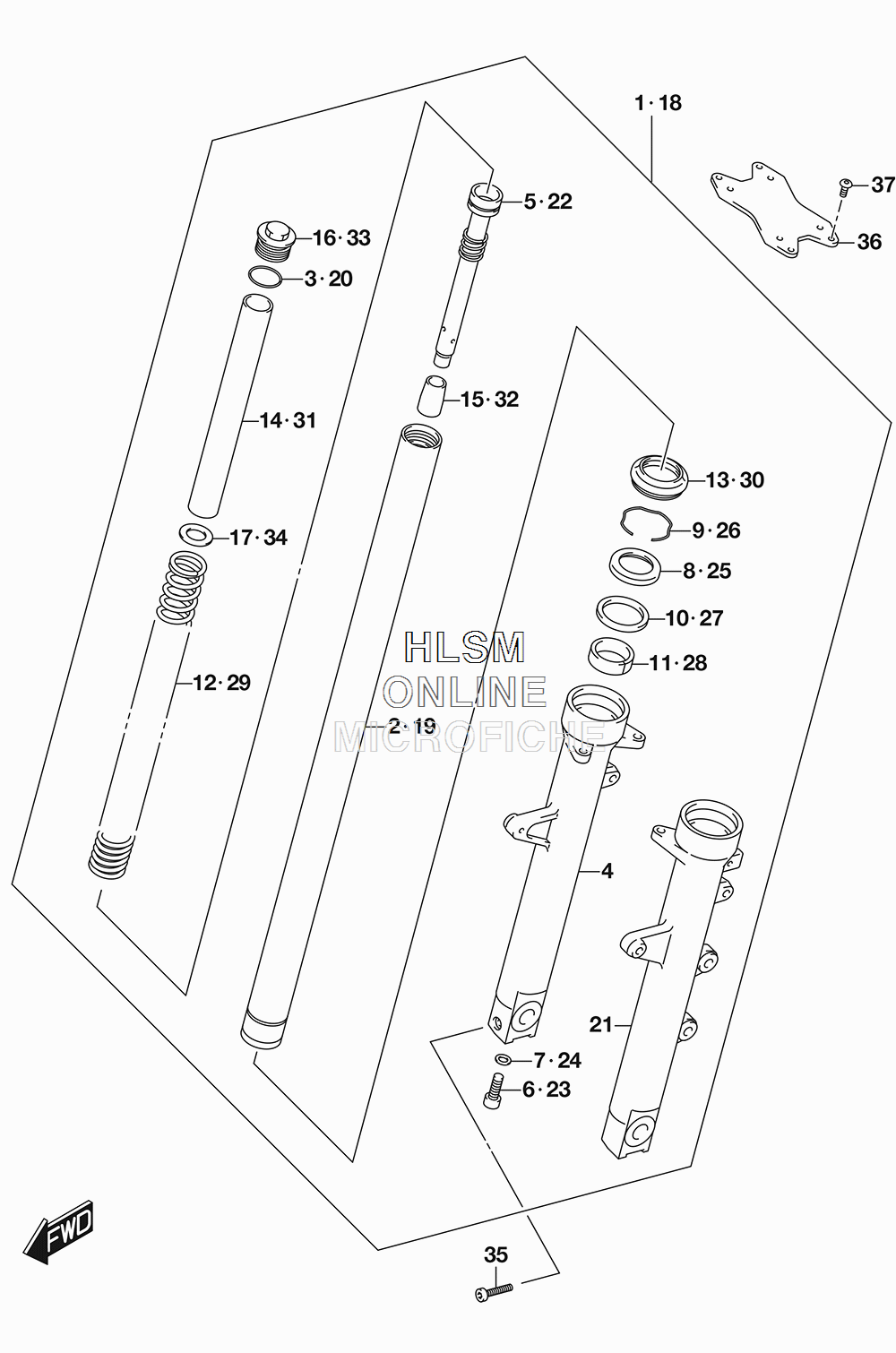

SUSPENSION - FRONT FORK DAMPER для Suzuki GW250Z - 2017 года выпуска`
-
№АртикулНазвание
-
151103-48H40 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-48H40 ...TUBE, INNER...TUBE, INNER
-
351117-38260 ...O RING...O RING
-
451130-48H10 ...TUBE, OUTER...TUBE, OUTER
-
551146-48H00 ...CYLINDER...CYLINDER
-
651147-05H00 ...BOLT...BOLT
-
751148-41310 ...GASKET...GASKET
-
851153-26F00 ...OIL SEAL...OIL SEAL
-
951156-40301 ...RING, STOPPER...RING, STOPPER
-
1051158-48H00 ...WASHER...WASHER
-
1151167-01D00 ...METAL, SLIDE...METAL, SLIDE
-
1251171-48H00 ...SPRING...SPRING
-
1351173-48H00 ...SEAL, DUST...SEAL, DUST
-
1451176-48H00 ...SPACER...SPACER
-
1551195-48H00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1651351-48H00 ...CAP...CAP
-
1751356-48H00 ...WASHER...WASHER
-
1851104-48H40 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
1951110-48H40 ...TUBE, INNER...TUBE, INNER
-
2051117-38260 ...O RING...O RING
-
2151140-48H10 ...TUBE, OUTER...TUBE, OUTER
-
2251146-48H00 ...CYLINDER...CYLINDER
-
2351147-05H00 ...BOLT...BOLT
-
2451148-41310 ...GASKET...GASKET
-
2551153-26F00 ...OIL SEAL...OIL SEAL
-
2651156-40301 ...RING, STOPPER...RING, STOPPER
-
2751158-48H00 ...WASHER...WASHER
-
2851167-01D00 ...METAL, SLIDE...METAL, SLIDE
-
2951171-48H00 ...SPRING...SPRING
-
3051173-48H00 ...SEAL, DUST...SEAL, DUST
-
3151176-48H00 ...SPACER...SPACER
-
3251195-48H00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
3351351-48H00 ...CAP...CAP
-
3451356-48H00 ...WASHER...WASHER
-
3551328-48H00 BOLTBOLT
-
3651471-48H00 STABILIZER, FRONTSTABILIZER, FRONT
-
3709139-06030 SCREW (6X16)SCREW (6X16)
