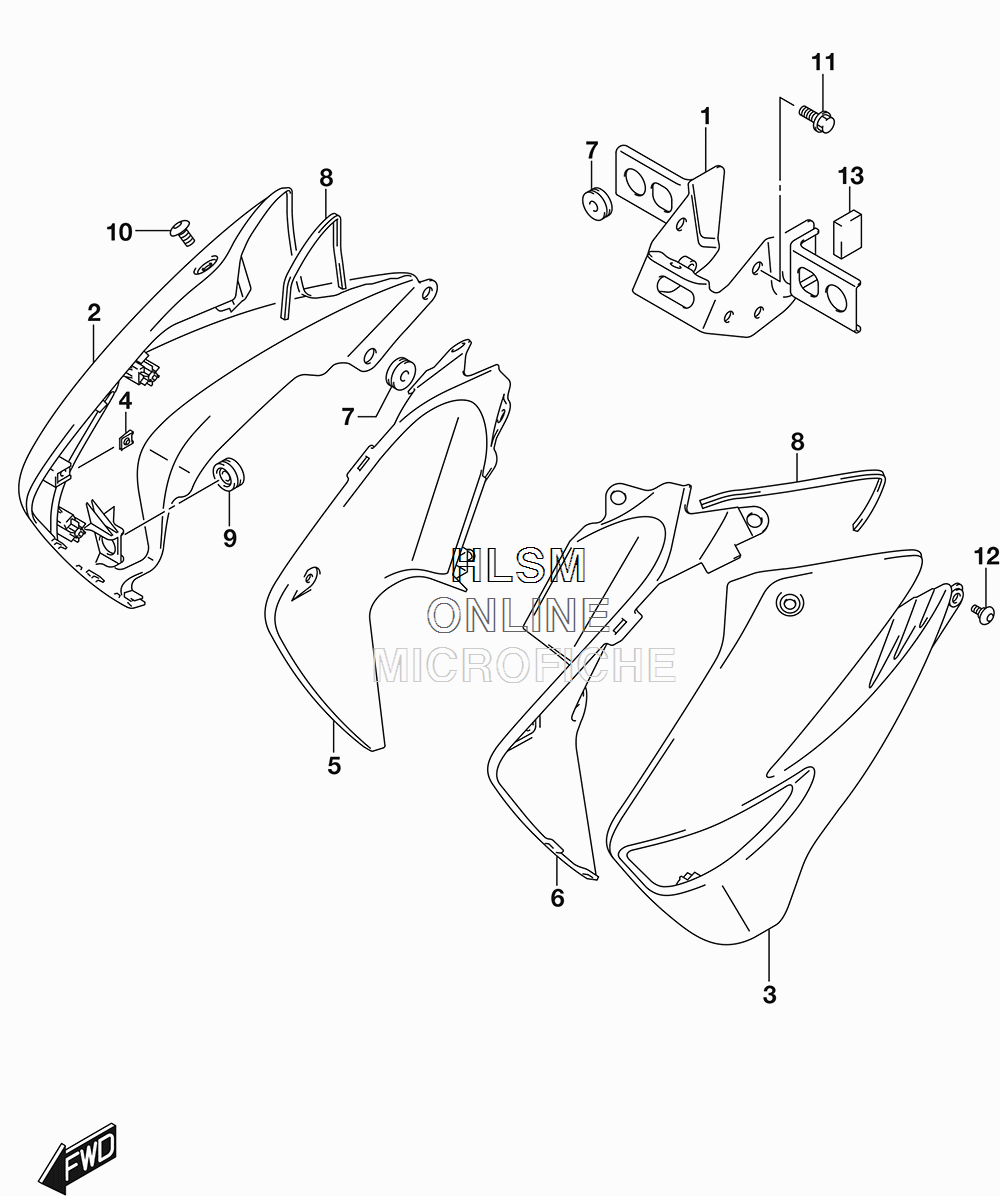

FUEL TANK COVER (CANADA) для Suzuki GW250 - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    44150-48H00 BRACKET, FRONT SIDE COVER
    BRACKET, FRONT SIDE COVER
  • 2
    44171-48H00-YAY COVER, FUEL TANK (RH) (YAY - BLACK)
    COVER, FUEL TANK (RH) (YAY - BLACK)
  • 3
    44181-48H00-YAY COVER, FUEL TANK (LH) (YAY - BLACK)
    COVER, FUEL TANK (LH) (YAY - BLACK)
  • 4
    44261-48H00 NUT, FUEL TANK COVER
    NUT, FUEL TANK COVER
  • 5
    44271-48H00 COVER, FUEL TANK FRONT (RH)
    COVER, FUEL TANK FRONT (RH)
  • 6
    44281-48H00 COVER, FUEL TANK FR (LH)
    COVER, FUEL TANK FR (LH)
  • 7
    44274-48H00 CUSHION, FUEL TANK COVER
    CUSHION, FUEL TANK COVER
  • 8
    44278-48H00 CUSHION, FUEL TANK COVER SIDE
    CUSHION, FUEL TANK COVER SIDE
  • 9
    44279-48H00 CUSHION, FUEL TANK COVER
    CUSHION, FUEL TANK COVER
  • 10
    09139-06172 SCREW (6X10)
    SCREW (6X10)
  • 11
    01550-0616B BOLT
    BOLT
  • 12
    44514-48H00 SCREW (6X12)
    SCREW (6X12)
  • 13
    44153-48H00 CUSHION, COVER BRACKET
    CUSHION, COVER BRACKET
