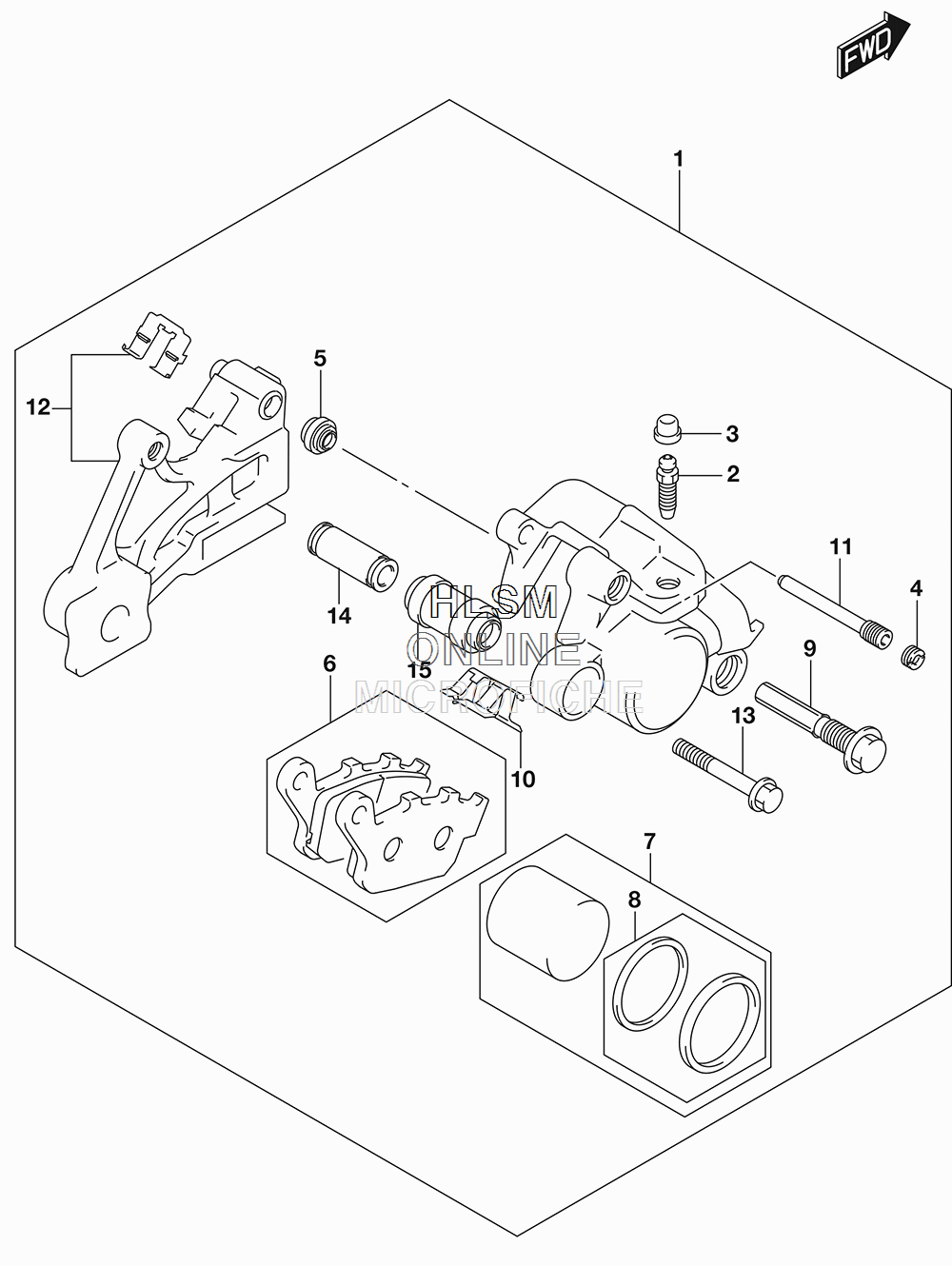

BRAKE - REAR CALIPER для Suzuki GW250 - 2017 года выпуска`
-
№АртикулНазвание
-
169100-48H01 CALIPER ASSY, REARCALIPER ASSY, REAR
-
259121-01A00 ...BLEEDER...BLEEDER
-
359122-46H00 ...CAP, BLEEDER...CAP, BLEEDER
-
459146-21E10 ...PLUG, PIN...PLUG, PIN
-
559303-14500 ...BOOT...BOOT
-
669100-48820 ...PAD SET...PAD SET
-
769101-44860 ...PISTON SET...PISTON SET
-
869100-04820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
969105-04F00 ...BOLT...BOLT
-
1069115-06G00 ...SPRING, PAD...SPRING, PAD
-
1169141-40F00 ...PIN, PAD...PIN, PAD
-
1269150-48H00 ...BRACKET...BRACKET
-
1369182-04F00 ...BOLT...BOLT
-
1469185-04F00 ...SLEEVE...SLEEVE
-
1569186-04F00 ...BOOT, SLEEVE...BOOT, SLEEVE
