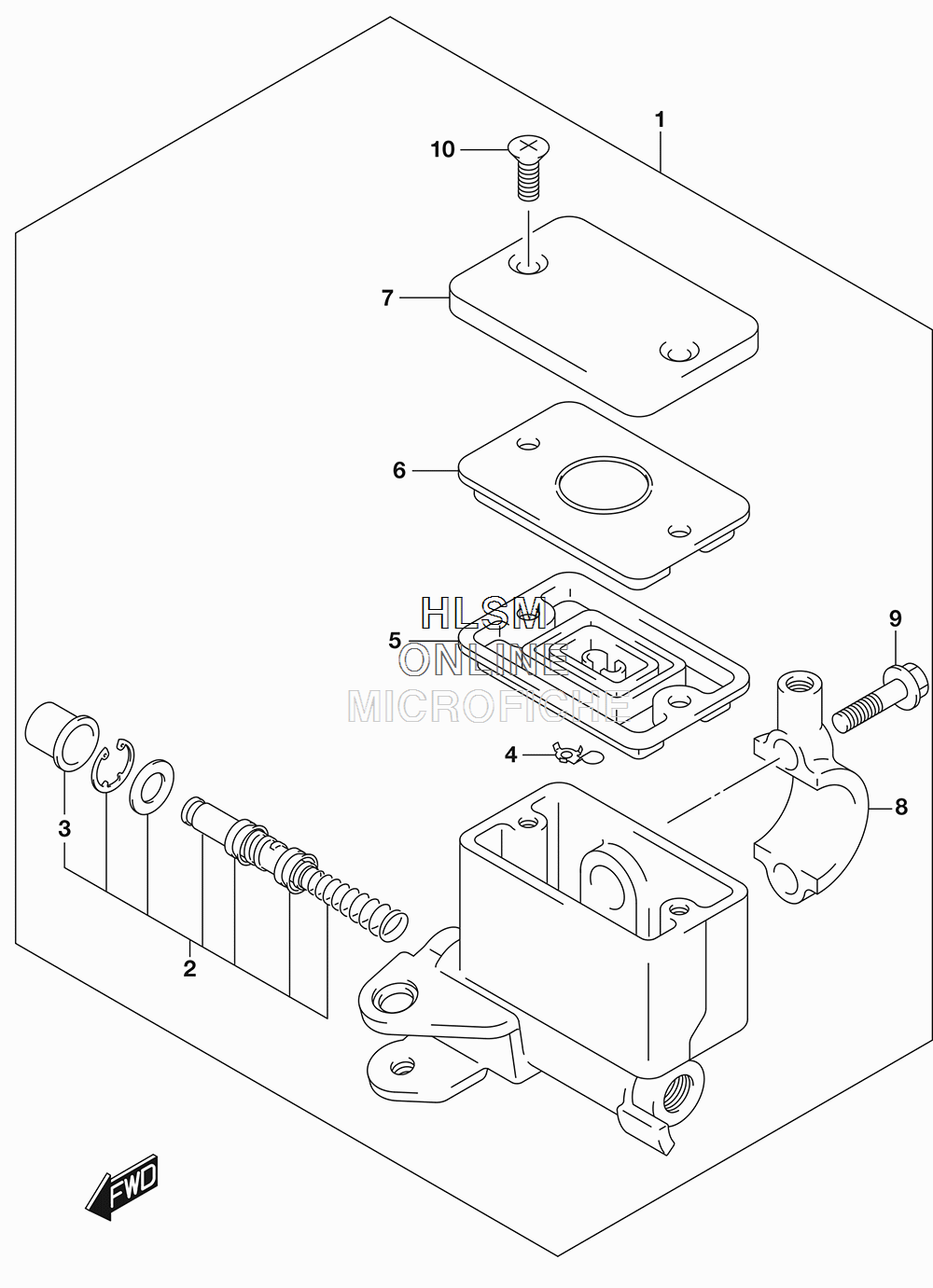

BRAKE - FRONT MASTER CYLINDER для Suzuki GW250 - 2017 года выпуска
-
№АртикулНазвание
-
159600-48H21 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-03820 ...PISTON & CUP SET...PISTON & CUP SET
-
359666-44300 ......BOOT......BOOT
-
459664-32F00 ...PROTECTOR...PROTECTOR
-
559667-49460 ...DIAPHRAGM...DIAPHRAGM
-
659668-41C00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
759669-10G00 ...CAP...CAP
-
859671-32F00 ...HOLDER...HOLDER
-
959675-02FA0 ...BOLT...BOLT
-
1069689-49300 ...SCREW...SCREW
