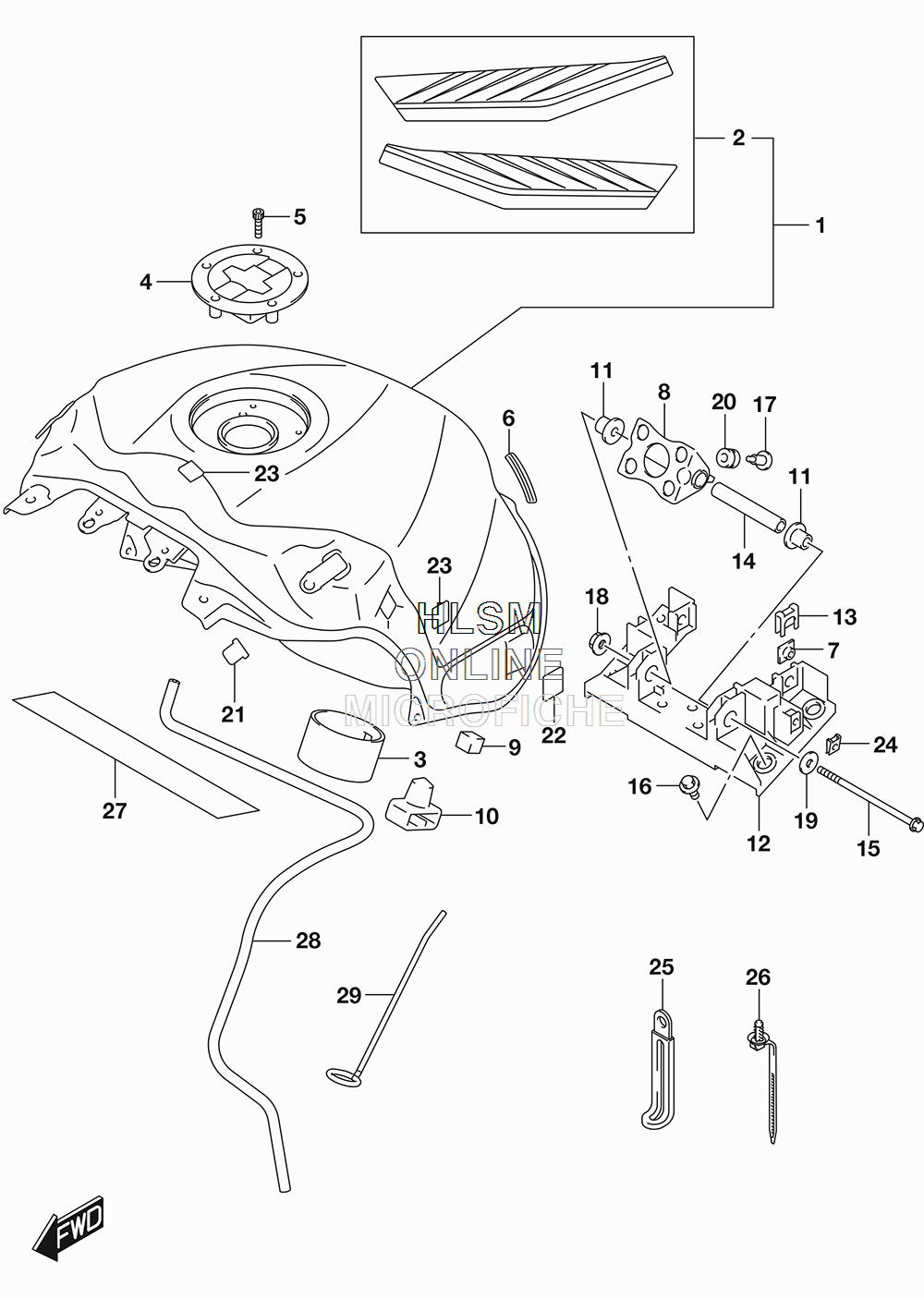

FUEL TANK (BLUE) (CALIF.) для Suzuki GSX-R1000 - 2017 года выпуска
-
№АртикулНазвание
-
144100-17KA0-YSF TANK ASSY, FUEL (YSF - BLUE)TANK ASSY, FUEL (YSF - BLUE)
-
268110-17K00-BDH ...TAPE SET, FUEL TANK (BDH - BLUE/WHITE/YELLOW/GRAY)...TAPE SET, FUEL TANK (BDH - BLUE/WHITE/YELLOW/GRAY)
-
344121-17K00 VESSEL, FUEL TANK INNERVESSEL, FUEL TANK INNER
-
444200-17820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
544244-11J00 BOLT, FUEL TANK FILLER CAPBOLT, FUEL TANK FILLER CAP
-
644552-24B10 MOLDING, FUEL TANK REARMOLDING, FUEL TANK REAR
-
744523-47H00 NUTNUT
-
844530-17K00 BRACKET, FUEL TANK NO.1BRACKET, FUEL TANK NO.1
-
944541-17K00 CUSHION, SIDECUSHION, SIDE
-
1044542-17K00 CUSHION, REARCUSHION, REAR
-
1144544-17K00 SPACER, FUEL TANK REAR BRACKESPACER, FUEL TANK REAR BRACKE
-
1244551-17K00 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
1344552-17K00 CLIP, NUTCLIP, NUT
-
1444561-18G00 SPACER, JOINTSPACER, JOINT
-
1509103-06033 BOLT (6X125)BOLT (6X125)
-
1609111-06081 BOLT (6X18)BOLT (6X18)
-
1709139-06191 SCREW (6X22)SCREW (6X22)
-
1809159-06086 NUTNUT
-
1909160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
2009320-08071 CUSHIONCUSHION
-
2144543-17K00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
2244572-13G00 FASTENER, COVER SIDEFASTENER, COVER SIDE
-
2344572-44G00 FASTENER, COVER FRONTFASTENER, COVER FRONT
-
2409148-05052 NUTNUT
-
2509404-06433 CLAMP (L:80)CLAMP (L:80)
-
2609407-17403 CLAMP (L:154)CLAMP (L:154)
-
2744283-17K00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2844423-17K00 HOSE, DRAINHOSE, DRAIN
-
2944574-17K00 STAY, FUEL TANK (OPT)STAY, FUEL TANK (OPT)
