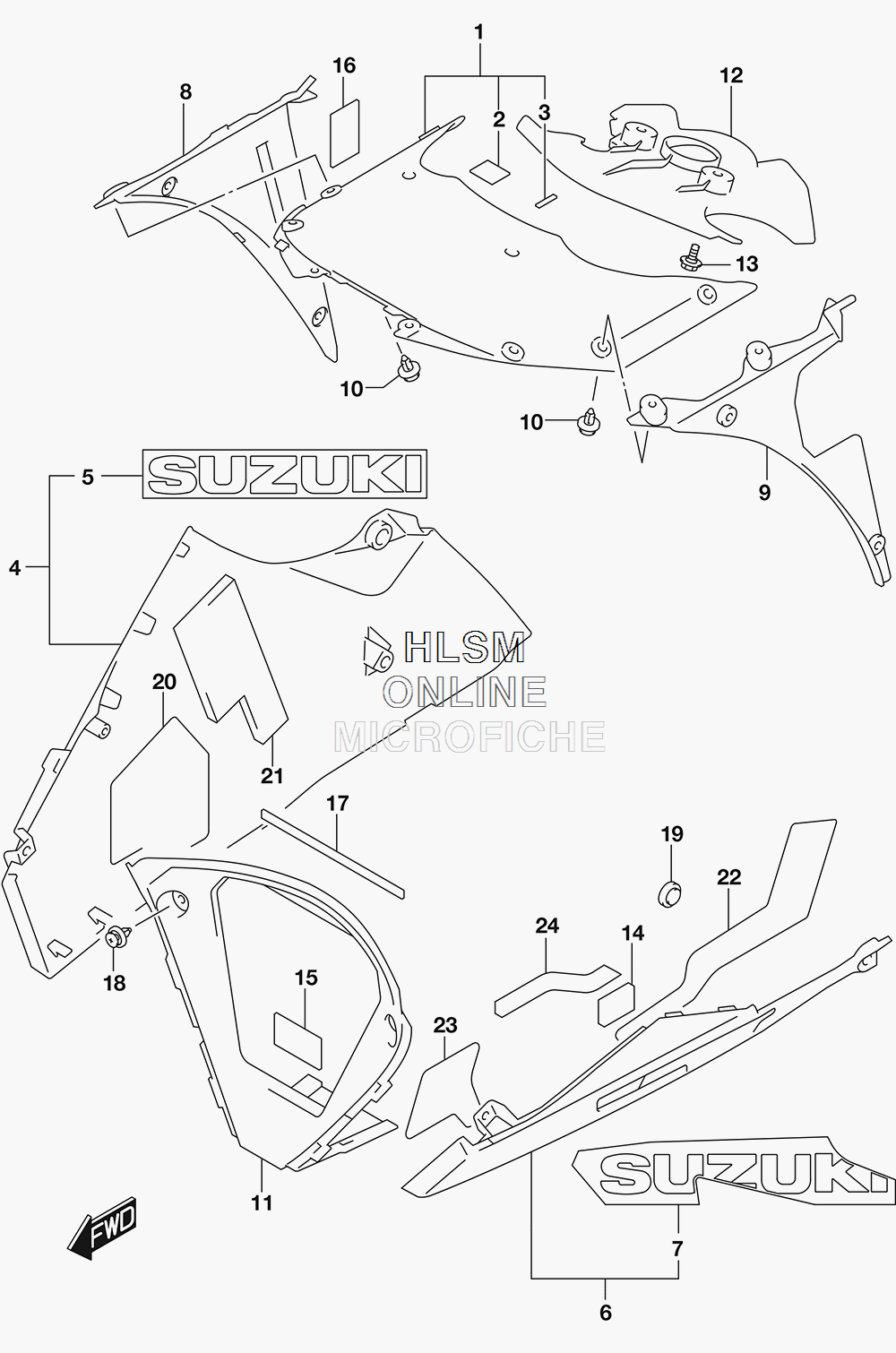

COWLING - UNDER BODY для Suzuki GSX-R1000 - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    94620-17K00 COVER, BODY COWL
    COVER, BODY COWL
  • 2
    36930-60A10 ...CUSHION, BODY COWL COVER
    ...CUSHION, BODY COWL COVER
  • 3
    94443-06G00 TAPE (6X25X0.13)
    TAPE (6X25X0.13)
  • 4-1
    94400-17K00-YKV COWLING, UNDER (RH) (YKV - BLACK)
    COWLING, UNDER (RH) (YKV - BLACK)
  • 4-2
    94400-17K00-YVZ COWLING, UNDER (RH) (YVZ - RED)
    COWLING, UNDER (RH) (YVZ - RED)
  • 4-3
    94400-17K00-4TX COWLING, UNDER (RH) (4TX - BLACK FOR YSF)
    COWLING, UNDER (RH) (4TX - BLACK FOR YSF)
  • 5-1
    68181-47HA1-19A ...EMBLEM, "SUZUKI" (19A - RED FOR YKV)
    ...EMBLEM, "SUZUKI" (19A - RED FOR YKV)
  • 5-2
    68181-47HA1-019 ...EMBLEM, "SUZUKI" (019 - BLACK FOR YVZ)
    ...EMBLEM, "SUZUKI" (019 - BLACK FOR YVZ)
  • 5-3
    68181-47HA1-YWW ...EMBLEM, "SUZUKI" (YWW - WHITE FOR YSF)
    ...EMBLEM, "SUZUKI" (YWW - WHITE FOR YSF)
  • 6-1
    94500-17K00-YKV COWLING, UNDER (LH) (YKV - BLACK)
    COWLING, UNDER (LH) (YKV - BLACK)
  • 6-2
    94500-17K00-YVZ COWLING, UNDER (LH) (YVZ - RED)
    COWLING, UNDER (LH) (YVZ - RED)
  • 6-3
    94500-17K00-4TX COWLING, UNDER (LH) (4TX - BLACK FOR YSF)
    COWLING, UNDER (LH) (4TX - BLACK FOR YSF)
  • 7-1
    68191-17K00-AX2 ...EMBLEM, "SUZUKI" (AX2 - RED/BLACK FOR YKV)
    ...EMBLEM, "SUZUKI" (AX2 - RED/BLACK FOR YKV)
  • 7-2
    68191-17K00-ABV ...EMBLEM, "SUZUKI" (ABV - RED/BLACK FOR YVZ)
    ...EMBLEM, "SUZUKI" (ABV - RED/BLACK FOR YVZ)
  • 7-3
    68191-17K00-AHB ...EMBLEM, "SUZUKI" (AHB - WHITE/BLACK FOR YSF)
    ...EMBLEM, "SUZUKI" (AHB - WHITE/BLACK FOR YSF)
  • 8
    94461-17K00 COWLING, UNDER INNER (RH)
    COWLING, UNDER INNER (RH)
  • 9
    94462-17K00 COWLING, UNDER INNER (LH)
    COWLING, UNDER INNER (LH)
  • 10
    09409-06314 CLIP
    CLIP
  • 11
    94491-17K00 COWLING, UNDER CTR
    COWLING, UNDER CTR
  • 12
    94458-17K00 COVER, LOWER BRACKET
    COVER, LOWER BRACKET
  • 13
    09111-06107 BOLT (6X12)
    BOLT (6X12)
  • 14
    33652-13G00 CUSHION, UNDER (RH)
    CUSHION, UNDER (RH)
  • 15
    33652-35400 CUSHION, UNDER COWL NO.2
    CUSHION, UNDER COWL NO.2
  • 16
    36930-60A10 CUSHION, SIDE FRONT
    CUSHION, SIDE FRONT
  • 17
    47121-31J00 CUSHION, UNDER COWL NO.1
    CUSHION, UNDER COWL NO.1
  • 18
    94479-35F00 CLIP
    CLIP
  • 19
    09321-10018 CUSHION
    CUSHION
  • 20
    94476-17K00 SHIELD, UNDER COWL HEAT (RH)
    SHIELD, UNDER COWL HEAT (RH)
  • 21
    94477-17K10 CUSHION, SIDE REAR (RH) NO.2
    CUSHION, SIDE REAR (RH) NO.2
  • 22
    94486-17K00 SHIELD, UNDER COWL HEAT (LH)
    SHIELD, UNDER COWL HEAT (LH)
  • 23
    94486-17K10 SHIELD, UNDER COWL HEAT (LH)
    SHIELD, UNDER COWL HEAT (LH)
  • 24
    94487-17K10 CUSHION, SIDE REAR (LH) NO.2
    CUSHION, SIDE REAR (LH) NO.2
