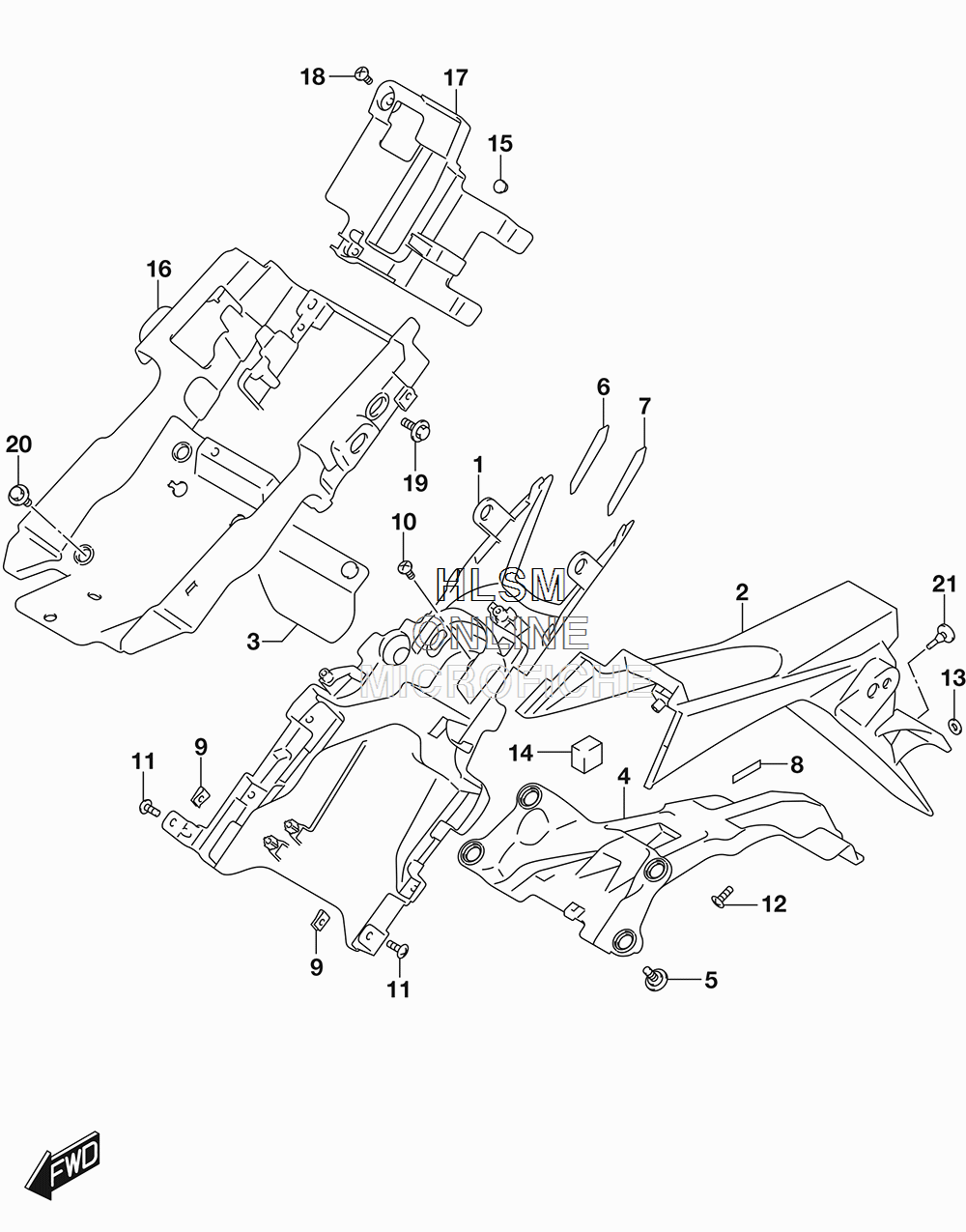

FENDER - REAR (EXCEPT CALIF.) для Suzuki GSX-R1000 - 2017 года выпуска`
-
№АртикулНазвание
-
163111-17K00 FENDER, REAR FRONTFENDER, REAR FRONT
-
263113-17K00 FENDER, REARFENDER, REAR
-
363114-17K00 MUDGUARD, REAR FENDERMUDGUARD, REAR FENDER
-
463116-17K00 FENDER, REAR REAR INNERFENDER, REAR REAR INNER
-
563117-17K00 BOLT, REAR FENDER REARBOLT, REAR FENDER REAR
-
663121-17K00 TAPE, REAR COMB (RH)TAPE, REAR COMB (RH)
-
763122-17K00 TAPE, REAR COMB (LH)TAPE, REAR COMB (LH)
-
894443-06G00 TAPE (6X25X0.13)TAPE (6X25X0.13)
-
909148-05038 NUTNUT
-
1003541-0512A SCREWSCREW
-
1103541-0516A SCREWSCREW
-
1203541-0516B SCREWSCREW
-
1308322-0106A WASHERWASHER
-
1433652-05G20 CUSHIONCUSHION
-
1545148-27J00 PLUG, ELECTRIC PARTS HOLDERPLUG, ELECTRIC PARTS HOLDER
-
1647431-17K00 HOLDER, BATTERYHOLDER, BATTERY
-
1747441-17K00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
1809111-06081 BOLT (6X18)BOLT (6X18)
-
1903541-0516A SCREWSCREW
-
2009111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
2109321-06026 CUSHIONCUSHION
