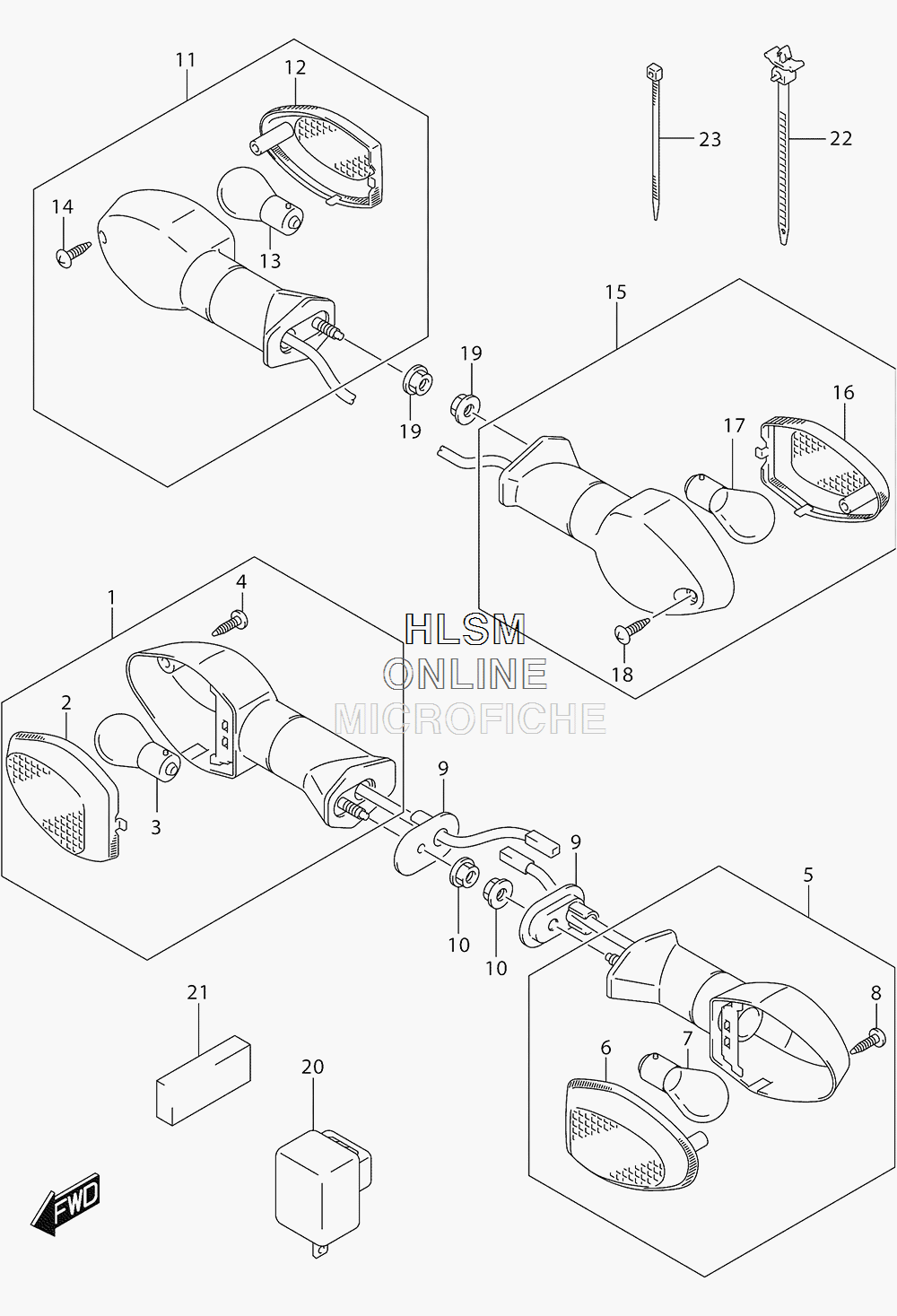

TURN SIGNAL ASSY. для Suzuki GSX-S1000 L6 - 2016 года выпуска`
-
№АртикулНазвание
-
135601-08J11 LAMP ASSY, FRONT TURN RHLAMP ASSY, FRONT TURN RH
-
235612-08J01 ...LENS...LENS
-
309471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
403211-0414B ...SCREW...SCREW
-
535602-08J11 LAMP ASSY, FRONT TURN LHLAMP ASSY, FRONT TURN LH
-
635632-08J01 ...LENS...LENS
-
709471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
803211-0414B ...SCREW...SCREW
-
935629-31F40 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135603-08J20 LAMP ASSY, REAR TURN RHLAMP ASSY, REAR TURN RH
-
1235632-08J01 ...LENS...LENS
-
1309471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1403211-0414B ...SCREW...SCREW
-
1535604-08J20 LAMP ASSY, REAR TURN LHLAMP ASSY, REAR TURN LH
-
1635612-08J01 ...LENS...LENS
-
1709471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1803211-0414B ...SCREW...SCREW
-
1908316-1005A NUTNUT
-
2038610-06F10 RELAY ASSY, TURNRELAY ASSY, TURN
-
2136652-04K00 CUSHION, TURNSIGNAL RELAYCUSHION, TURNSIGNAL RELAY
-
2209407-14408 CLAMP (L:120)CLAMP (L:120)
-
2309407-10404 CLAMP (L:100)CLAMP (L:100)
