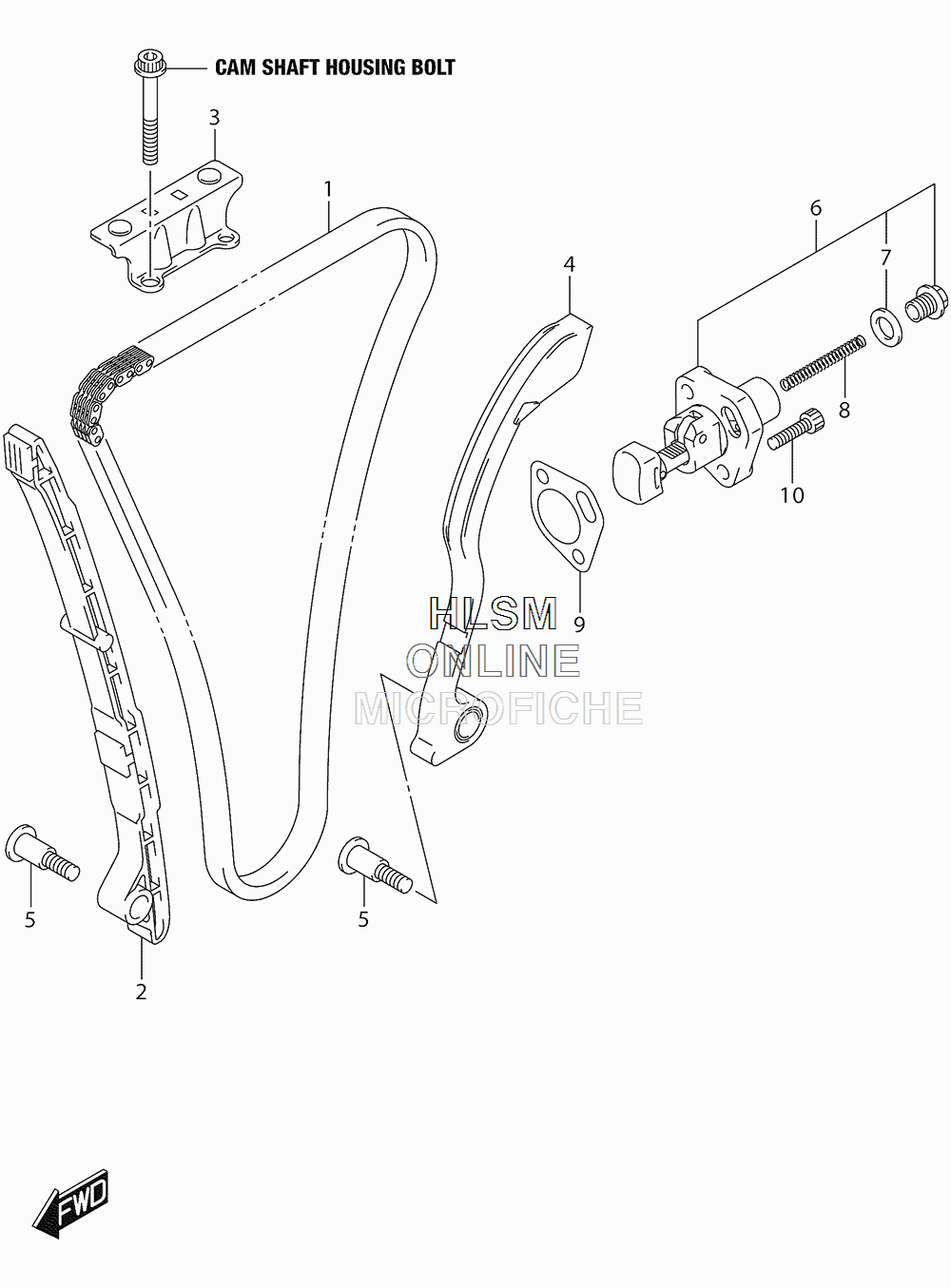

CAM CHAIN ASSY. W/ TENSIONER для Suzuki GSX-S1000 L6 - 2016 года выпуска

№

Артикул

Название
1

12760-04K00 CHAIN, CAM SHAFT DRIVE

CHAIN, CAM SHAFT DRIVE
2

12771-21H00 GUIDE, CAM CHAIN NO.1

GUIDE, CAM CHAIN NO.1
3

12782-35F10 GUIDE, CAM CHAIN NO.2

GUIDE, CAM CHAIN NO.2
4

12811-21H00 TENSIONER, CAM CHAIN

TENSIONER, CAM CHAIN
5

12812-31G00 BOLT, CAM CHAIN TENSIONER

BOLT, CAM CHAIN TENSIONER
6

12830-41G11 ADJUSTER ASSY, TENSIONER

ADJUSTER ASSY, TENSIONER
7

12837-24F10 ...GASKET

...GASKET
8

12831-41G00 SPRING

SPRING
9

12837-18G00 GASKET, ADJUSTER

GASKET, ADJUSTER
10

07130-0625A BOLT

BOLT
