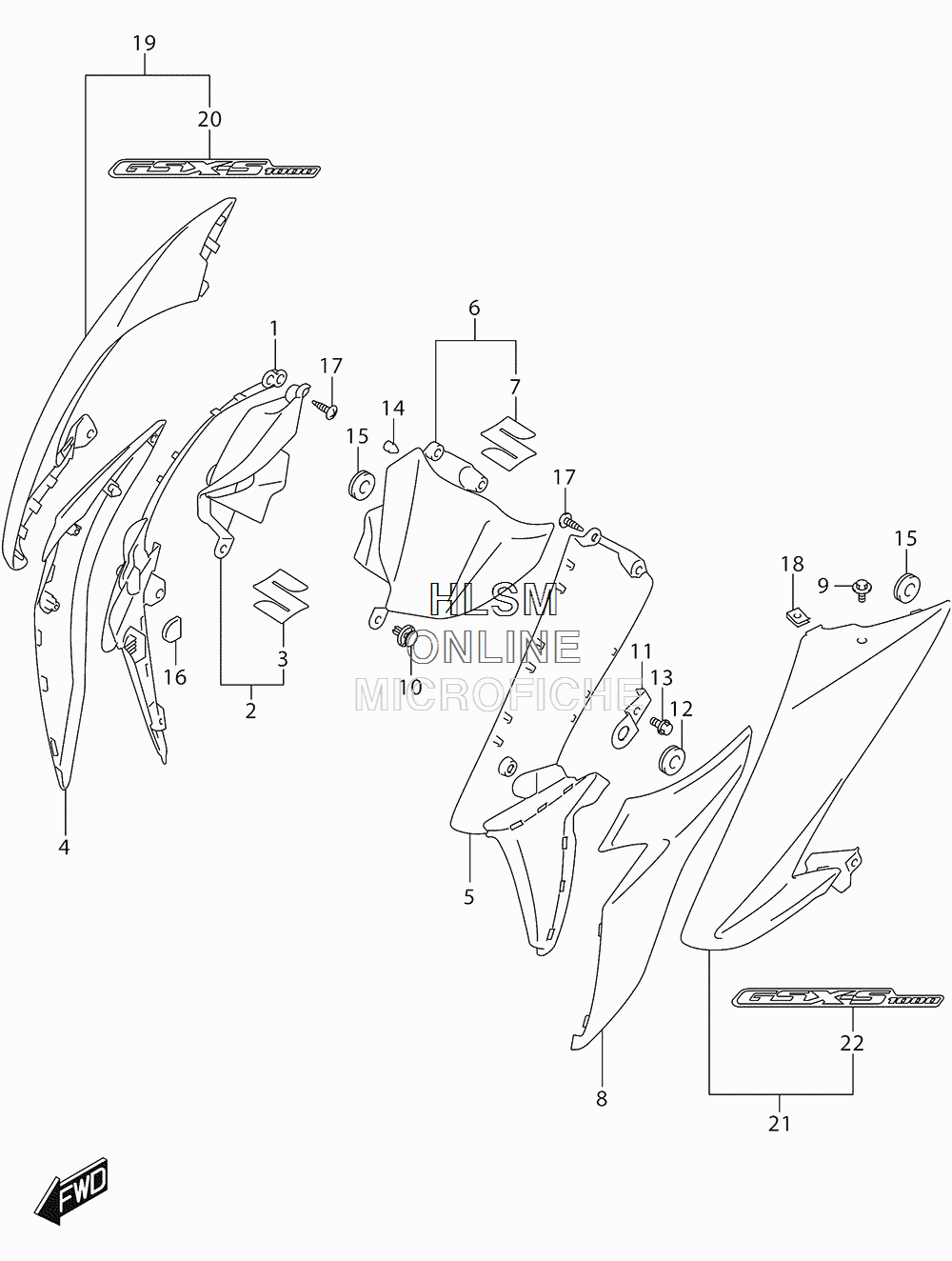

FRAME BODY COVER (PGZ-AV4) для Suzuki GSX-S1000 L6 - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    47531-04K00 COVER, FRAME BODY INNER RH
    COVER, FRAME BODY INNER RH
  • 2
    47570-04K00 COVER ASSY, INTAKE RH
    COVER ASSY, INTAKE RH
  • 3
    68111-47HA0 ...EMBLEM, S
    ...EMBLEM, S
  • 4
    47533-04K00-PGZ COVER, FRAME BODY LOWER RIGHT HAND (GRAY) (FOR PGZ)
    COVER, FRAME BODY LOWER RIGHT HAND (GRAY) (FOR PGZ)
  • 4
    47533-04K00-YYG COVER, FRAME BODY LOWER RIGHT HAND (RED) (FOR AV4)
    COVER, FRAME BODY LOWER RIGHT HAND (RED) (FOR AV4)
  • 5
    47541-04K00 COVER, FRAME BODY INNER LH
    COVER, FRAME BODY INNER LH
  • 6
    47580-04K00 COVER ASSY, INTAKE LH
    COVER ASSY, INTAKE LH
  • 7
    68111-47HA0 ...EMBLEM, S
    ...EMBLEM, S
  • 8
    47543-04K00-PGZ COVER, FRAME BODY LOWER LEFT HAND (GRAY) (FOR PGZ)
    COVER, FRAME BODY LOWER LEFT HAND (GRAY) (FOR PGZ)
  • 8
    47543-04K00-YYG COVER, FRAME BODY LOWER LEFT HAND (RED) (FOR AV4)
    COVER, FRAME BODY LOWER LEFT HAND (RED) (FOR AV4)
  • 9
    09139-05064 SCREW (5X13)
    SCREW (5X13)
  • 10
    94479-35F00 CLIP
    CLIP
  • 11
    47539-04K00 BRACKET, FRAME BODY COVER
    BRACKET, FRAME BODY COVER
  • 12
    09320-08018 CUSHION
    CUSHION
  • 13
    01547-0612B BOLT
    BOLT
  • 14
    09321-06013 CUSHION
    CUSHION
  • 15
    09320-06504 CUSHION
    CUSHION
  • 16
    09329-18001 CUSHION
    CUSHION
  • 17
    03541-0516A SCREW
    SCREW
  • 18
    09148-05052 NUT
    NUT
  • 19
    47510-04K00-PGZ COVER, FRAME BODY RIGHT HAND (GRAY) (FOR PGZ)
    COVER, FRAME BODY RIGHT HAND (GRAY) (FOR PGZ)
  • 19
    47510-04K00-YVB COVER, FRAME BODY RIGHT HAND (BLACK) (FOR AV4)
    COVER, FRAME BODY RIGHT HAND (BLACK) (FOR AV4)
  • 20
    68131-04K00-A76 ...EMBLEM, FRAME BODY COVER (FOR PGZ)
    ...EMBLEM, FRAME BODY COVER (FOR PGZ)
  • 20
    68131-04K00-A77 ...EMBLEM, FRAME BODY COVER (FOR YVB)
    ...EMBLEM, FRAME BODY COVER (FOR YVB)
  • 21
    47520-04K00-PGZ COVER, FRAME BODY LEFT HAND (GRAY) (FOR PGZ)
    COVER, FRAME BODY LEFT HAND (GRAY) (FOR PGZ)
  • 21
    47520-04K00-YVB COVER, FRAME BODY LEFT HAND (BLACK) (FOR AV4)
    COVER, FRAME BODY LEFT HAND (BLACK) (FOR AV4)
  • 22
    68131-04K00-A76 ...EMBLEM, FRAME BODY COVER (FOR PGZ)
    ...EMBLEM, FRAME BODY COVER (FOR PGZ)
  • 22
    68131-04K00-A77 ...EMBLEM, FRAME BODY COVER (FOR YVB)
    ...EMBLEM, FRAME BODY COVER (FOR YVB)
