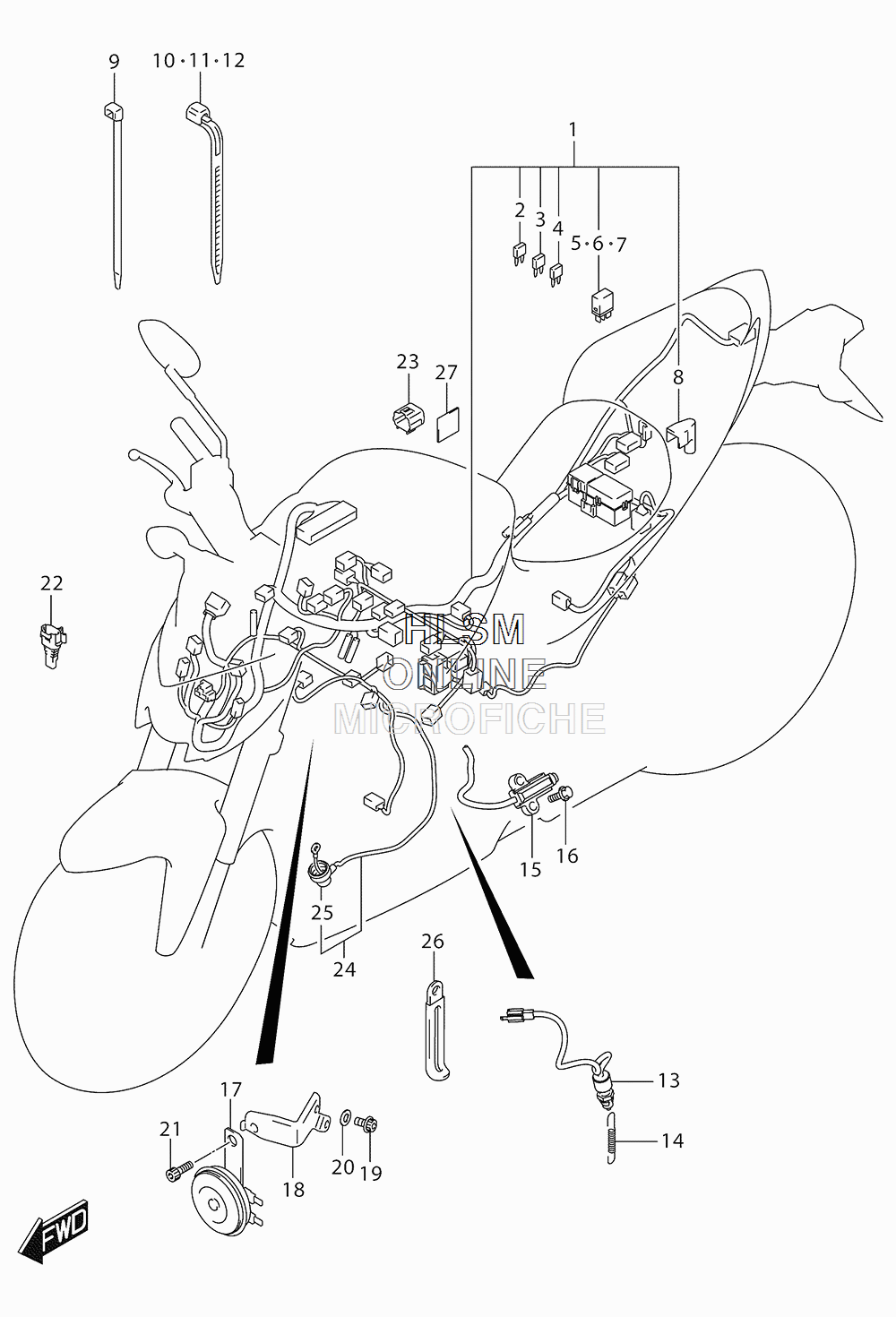

ELECTRICAL - WIRING HARNESS (CALIF) для Suzuki GSX-S1000 L6 - 2016 года выпуска`
-
№АртикулНазвание
-
136610-04KN0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10504 ...FUSE (10A)...FUSE (10A)
-
309481-15504 ...FUSE (15A)...FUSE (15A)
-
409481-20504 ...FUSE (20A)...FUSE (20A)
-
538860-76F01 ...RELAY ASSY (FOR FUEL PUMP)...RELAY ASSY (FOR FUEL PUMP)
-
638860-76F01 ...RELAY ASSY (FOR FAN MOTOR)...RELAY ASSY (FOR FAN MOTOR)
-
738860-76F01 ...RELAY ASSY (FOR SIDE STAND)...RELAY ASSY (FOR SIDE STAND)
-
833624-04K00 ...CAP, BATTERY PLUS TERMINAL...CAP, BATTERY PLUS TERMINAL
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1009407-18402 CLAMP (L:165)CLAMP (L:165)
-
1109407-19401 CLAMP (L:190)CLAMP (L:190)
-
1209407-14403 CLAMP (L:125)CLAMP (L:125)
-
1337740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1409443-06054 SPRINGSPRING
-
1537840-35F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1601550-0620A BOLTBOLT
-
1738500-48G10 HORN ASSYHORN ASSY
-
1838590-04K00 PLATE, HORNPLATE, HORN
-
1907120-0620A BOLTBOLT
-
2009160-06129 WASHER (6.5X16X1)WASHER (6.5X16X1)
-
2107130-0812A BOLTBOLT
-
2236654-04K00 CAP, CONNECTORCAP, CONNECTOR
-
2336654-06J20 CAP, TSCAP, TS
-
2436851-44G01 WIRE, OIL PRESSURE SWITCH LEADWIRE, OIL PRESSURE SWITCH LEAD
-
2536618-31J00 ...CAP, OIL PRESSURE SWITCH...CAP, OIL PRESSURE SWITCH
-
2609404-06429 CLAMP (L:45)CLAMP (L:45)
-
2792213-33G00 CUSHION, WIRING HARNESSCUSHION, WIRING HARNESS
