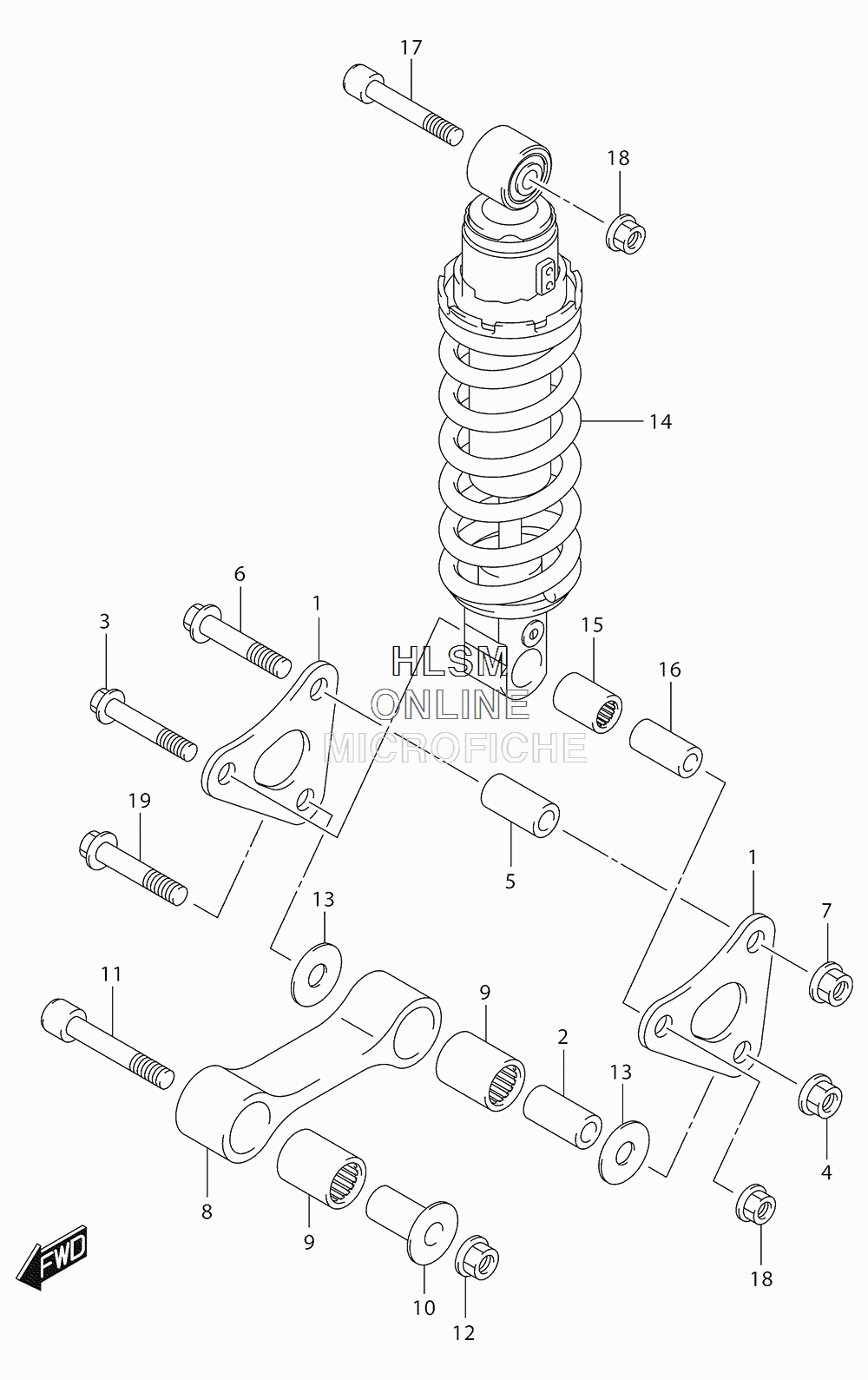

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска`
-
№АртикулНазвание
-
162611-04K00 LEVER, REAR CUSHIONLEVER, REAR CUSHION
-
262317-27C10 SPACER, LOWERSPACER, LOWER
-
362668-42A02 BOLT, LOWERBOLT, LOWER
-
409159-12056 NUTNUT
-
562317-44B00 SPACER, UPPERSPACER, UPPER
-
662668-42A02 BOLT, UPPERBOLT, UPPER
-
709159-12056 NUTNUT
-
862641-31J00 ROD, REAR CUSHIONROD, REAR CUSHION
-
909263-20074 BEARING (20X27X32)BEARING (20X27X32)
-
1062647-47H00 SPACER, RODSPACER, ROD
-
1162658-04K00 BOLT, RODBOLT, ROD
-
1209159-12056 NUTNUT
-
1309160-12037 WASHER (12X34X1)WASHER (12X34X1)
-
1462100-04K10-17U ABSORBER ASSY, REAR SHOCK (GRAY)ABSORBER ASSY, REAR SHOCK (GRAY)
-
1509263-17046 BEARING (17X24X32)BEARING (17X24X32)
-
1662317-47H00 SPACER, SHOCK ABS LOWERSPACER, SHOCK ABS LOWER
-
1762658-04K10 BOLT, REAR SHOCK ABS UPPERBOLT, REAR SHOCK ABS UPPER
-
1809159-10115 NUTNUT
-
1909103-10428 BOLT (10X58)BOLT (10X58)
