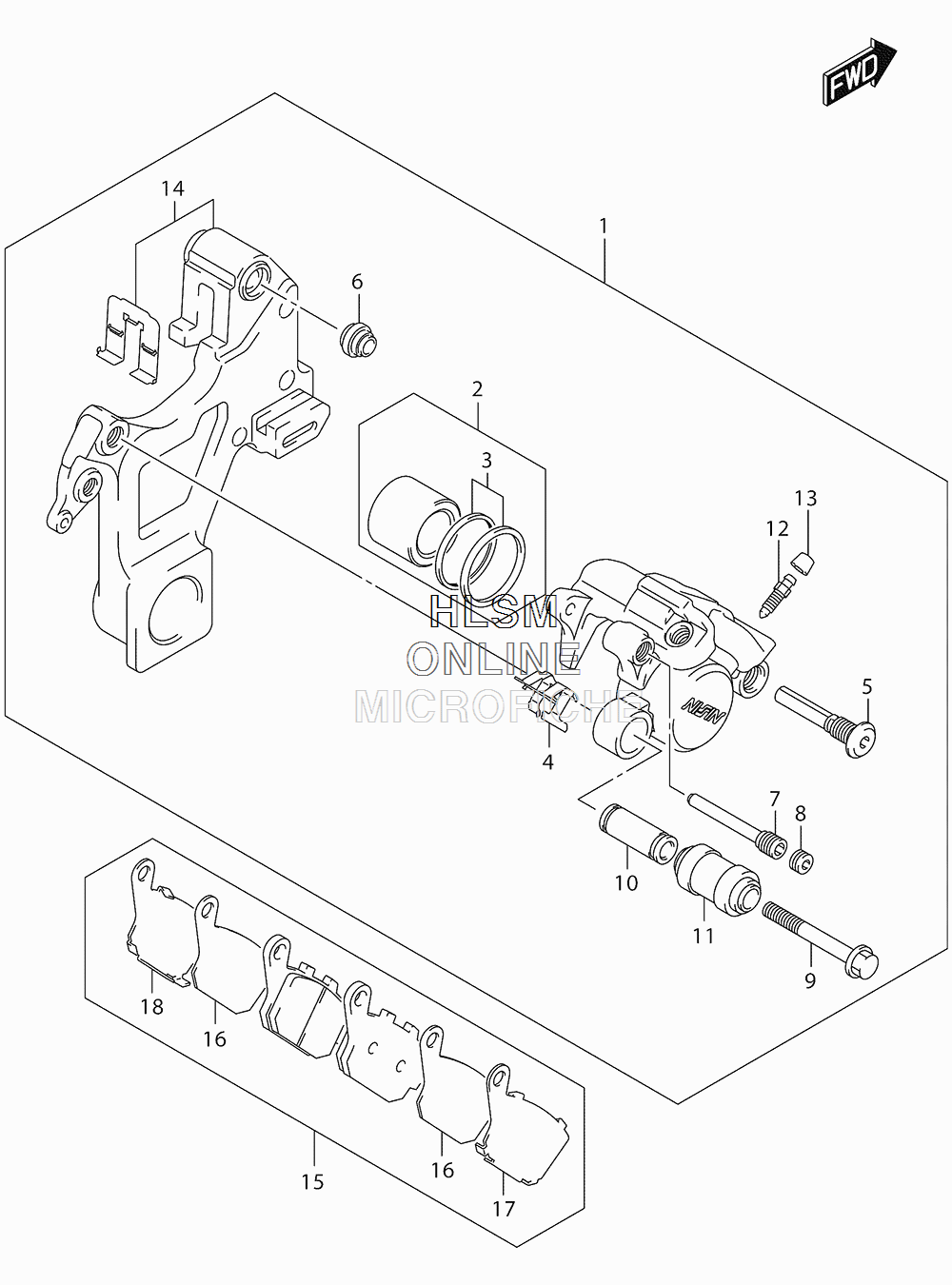

BRAKE - REAR CALIPER для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска`
-
№АртикулНазвание
-
169100-04K00-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
269100-04810 ...PISTON SET...PISTON SET
-
369100-04820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
469115-04F00 ...SPRING, PAD...SPRING, PAD
-
559305-36E00 ...PIN, BOLT...PIN, BOLT
-
659303-14500 ...BOOT...BOOT
-
769141-40F00 ...PIN, PAD...PIN, PAD
-
859146-08J00 ...PIN, PLUG...PIN, PLUG
-
969182-04F00 ...BOLT...BOLT
-
1069185-04F00 ...SLEEVE...SLEEVE
-
1169186-04F00 ...BOOT, SLEEVE...BOOT, SLEEVE
-
1259121-01A00 ...BLEEDER...BLEEDER
-
1359122-46H00 ...CAP, BLEEDER...CAP, BLEEDER
-
1469150-04K00 ...BRACKET...BRACKET
-
1569100-08860 PAD AND RETAINER SETPAD AND RETAINER SET
-
1669132-08J00 ...INSULATOR...INSULATOR
-
1769133-16G00 ...RETAINER...RETAINER
-
1869134-16G00 ...RETAINER...RETAINER
