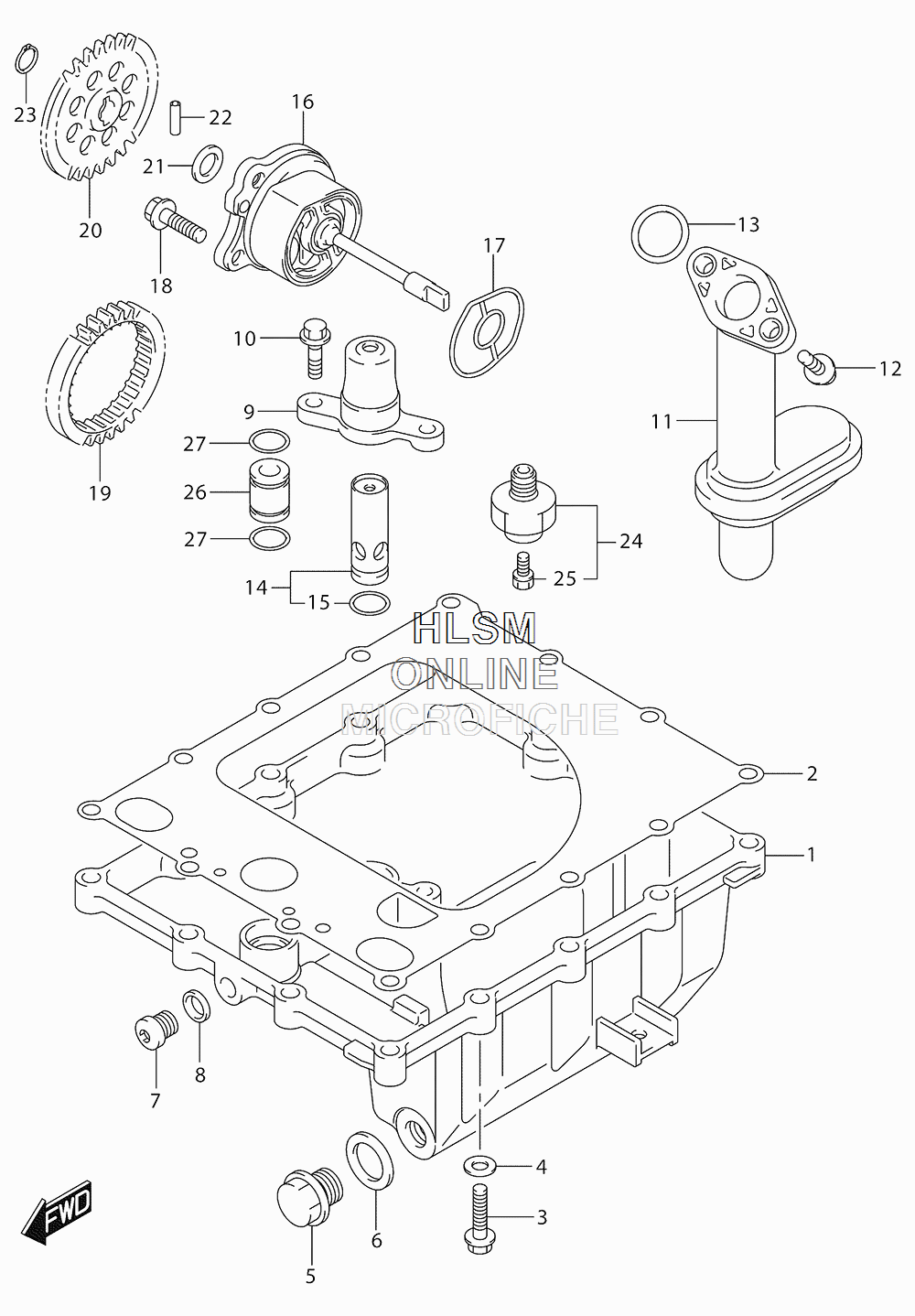

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска`
-
№АртикулНазвание
-
111511-21H01 PAN, OILPAN, OIL
-
211489-21H00 GASKET, OIL PANGASKET, OIL PAN
-
301547-0625A BOLTBOLT
-
409168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
509247-14036 PLUG (14X20) (OIL DRAIN)PLUG (14X20) (OIL DRAIN)
-
609168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
709248-10010 PLUG (10X10)PLUG (10X10)
-
809168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
911512-44G00 CAP, OIL RELIEF VALVECAP, OIL RELIEF VALVE
-
1001547-0620A BOLTBOLT
-
1116520-04K00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
1201550-0620A BOLTBOLT
-
1309280-19008 O RING (D:2.62,ID:20.3)O RING (D:2.62,ID:20.3)
-
1416440-24F00 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
1509280-13004 ...O RING (D:1.9,ID:13)...O RING (D:1.9,ID:13)
-
1616400-21H00 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
1716491-35F00 O RINGO RING
-
1801547-0620A BOLTBOLT
-
1916321-35F01 GEAR, OIL PUMP DRIVE (NT:33)GEAR, OIL PUMP DRIVE (NT:33)
-
2016331-35F00 GEAR, OIL PUMP DRIVEN (NT:35)GEAR, OIL PUMP DRIVEN (NT:35)
-
2109181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
2209261-04009 PIN (4X15.8)PIN (4X15.8)
-
2308331-31109 CIRCLIPCIRCLIP
-
2437820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
2537822-33D00 ...BOLT...BOLT
-
2611281-44G00 PIPE, OIL GALLERYPIPE, OIL GALLERY
-
2709280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
