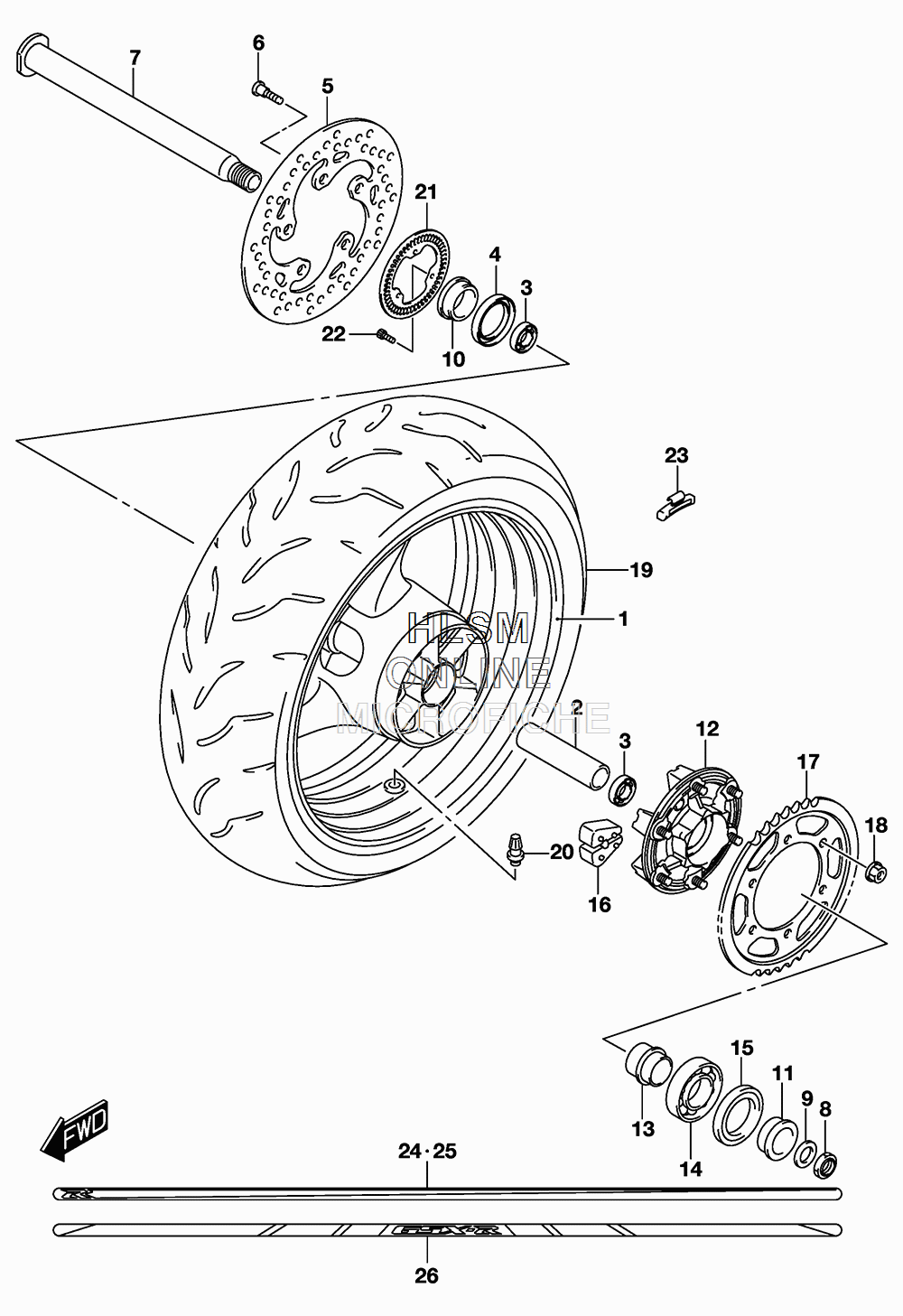

WHEEL - REAR для Suzuki GSX-R1000A L6 ABS - 2016 года выпуска

№

Артикул

Название
1

64111-47H30-019 WHEEL, REAR (17M/CXMT6.00) (BLACK)

WHEEL, REAR (17M/CXMT6.00) (BLACK)
2

64731-35F10 SPACER, HUB BEARING

SPACER, HUB BEARING
3

09262-28052 BEARING (28X52X12)

BEARING (28X52X12)
4

09284-37001 OIL SEAL (37X52X8) (RH)

OIL SEAL (37X52X8) (RH)
5

69211-47H00 DISC, REAR BRAKE

DISC, REAR BRAKE
6

09106-08160 BOLT (8X21)

BOLT (8X21)
7

64711-49G00 AXLE, REAR

AXLE, REAR
8

09159-25003 NUT

NUT
9

09160-25070 WASHER (25.2X42X3.2)

WASHER (25.2X42X3.2)
10

64741-35F00 SPACER, AXLE RH

SPACER, AXLE RH
11

64751-47H00 SPACER, AXLE LH

SPACER, AXLE LH
12

64610-47H00 DRUM, REAR SPROCKET

DRUM, REAR SPROCKET
13

64733-35F00 RETAINER, SPROCKET DRUM

RETAINER, SPROCKET DRUM
14

09262-32022 BEARING (32X65X17)

BEARING (32X65X17)
15

09285-39001 OIL SEAL (39X65X7)

OIL SEAL (39X65X7)
16

64651-47H10 ABSORBER, HUB SHOCK

ABSORBER, HUB SHOCK
17

64511-47H10 SPROCKET, REAR

SPROCKET, REAR
18

08319-3110A NUT

NUT
19

65110-47H10 TIRE, REAR, 190/50ZR17 M/C (73W) S20R BRIDGESTONE

TIRE, REAR, 190/50ZR17 M/C (73W) S20R BRIDGESTONE
20

43130-24A00 VALVE ASSY, WHEEL RIM (TR412)

VALVE ASSY, WHEEL RIM (TR412)
21

64162-47H00 RING, SPEED SENSOR REAR (50T)

RING, SPEED SENSOR REAR (50T)
22

07130-0512A BOLT

BOLT
23

55411-22H00 BALANCER (10G) (10G)

BALANCER (10G) (10G)
23

55412-22H00 BALANCER (20G) (20G)

BALANCER (20G) (20G)
23

55413-22H00 BALANCER (30G) (30G)

BALANCER (30G) (30G)
24

68251-47H00-A29 TAPE, RH (FOR YSF)

TAPE, RH (FOR YSF)
25

68252-47H00-A29 TAPE, LH (FOR YSF)

TAPE, LH (FOR YSF)
26

68251-47H10-BAJ TAPE, WHEEL (FOR AJP,JSP)

TAPE, WHEEL (FOR AJP,JSP)
