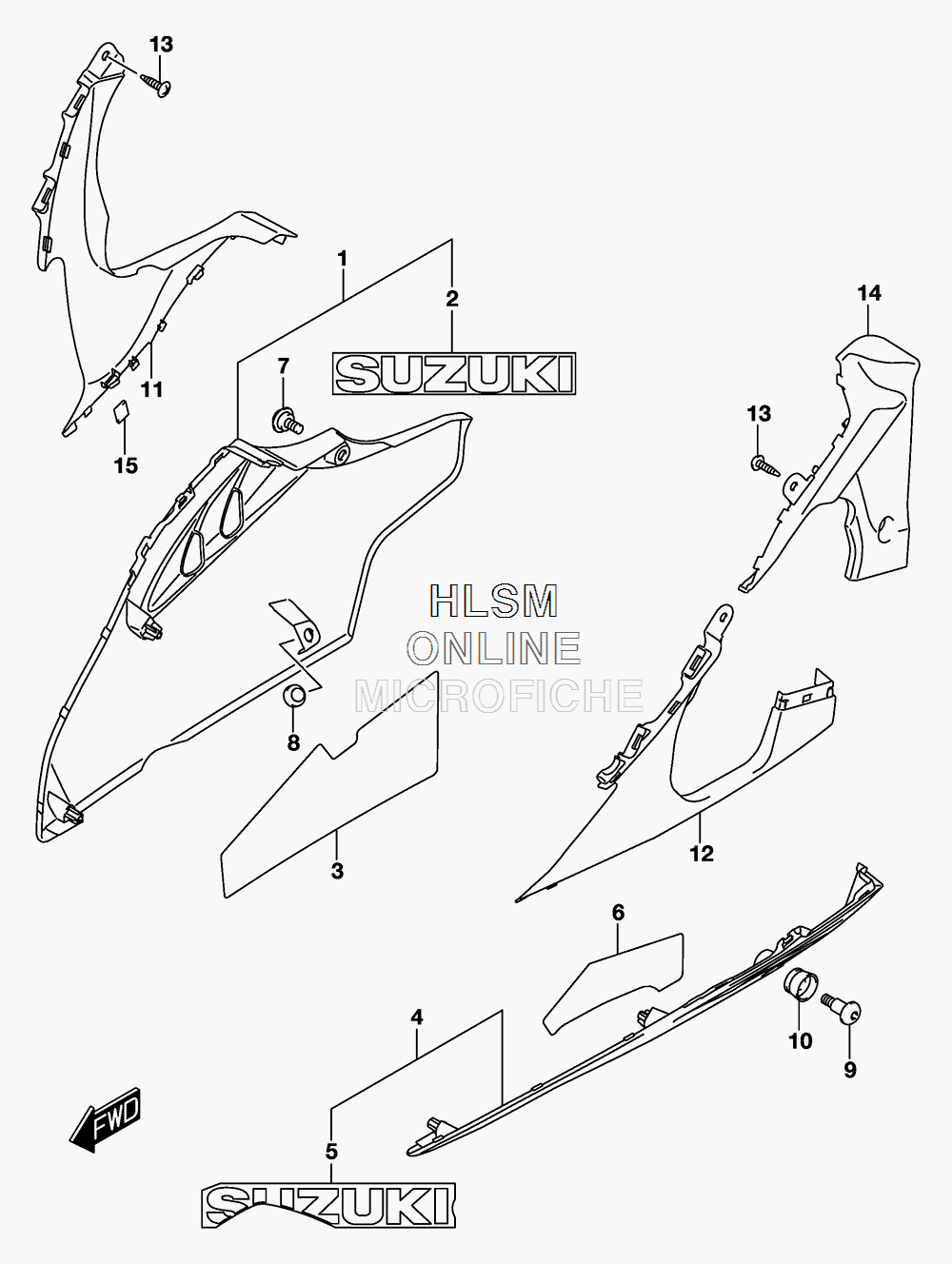

COWLING - UNDER BODY для Suzuki GSX-R1000A L6 ABS - 2016 года выпуска

№

Артикул

Название
1

94470-47H00-ASX COWL, UNDER RH (RED) (FOR YSF)

COWL, UNDER RH (RED) (FOR YSF)
1

94470-47H00-AHX COWL, UNDER RH (WHITE) (FOR AJP)

COWL, UNDER RH (WHITE) (FOR AJP)
1

94470-47H00-YVB COWL, UNDER RH (BLACK) (FOR JSP)

COWL, UNDER RH (BLACK) (FOR JSP)
2

68181-33C20-YWW ...EMBLEM, ''SUZUKI'' RH (WHITE) (FOR ASX)

...EMBLEM, ''SUZUKI'' RH (WHITE) (FOR ASX)
2

68181-33C20-YVZ ...EMBLEM, ''SUZUKI'' RH (RED) (FOR AHX,YVB)

...EMBLEM, ''SUZUKI'' RH (RED) (FOR AHX,YVB)
3

94476-47H00 SHIELD, HEAT FRONT RH

SHIELD, HEAT FRONT RH
4

94480-47H00-ASX COWL, UNDER LH (RED) (FOR YSF)

COWL, UNDER LH (RED) (FOR YSF)
4

94480-47H00-AHX COWL, UNDER LH (WHITE) (FOR AJP)

COWL, UNDER LH (WHITE) (FOR AJP)
4

94480-47H00-YVB COWL, UNDER LH (BLACK) (FOR JSP)

COWL, UNDER LH (BLACK) (FOR JSP)
5

68191-47H00-YWW ...EMBLEM, ''SUZUKI'' LH (WHITE) (FOR ASX)

...EMBLEM, ''SUZUKI'' LH (WHITE) (FOR ASX)
5

68191-47H00-YVZ ...EMBLEM, ''SUZUKI'' LH (RED) (FOR AHX,YVB)

...EMBLEM, ''SUZUKI'' LH (RED) (FOR AHX,YVB)
6

94486-47H00 SHIELD, HEAT LH

SHIELD, HEAT LH
7

09139-05064 SCREW (5X13)

SCREW (5X13)
8

09321-10018 CUSHION

CUSHION
9

09139-06190 BOLT (6X20)

BOLT (6X20)
10

94479-15H00 CUSHION

CUSHION
11

94474-47H00 COWL, SIDE LOWER RH

COWL, SIDE LOWER RH
12

94484-47H00 COWL, SIDE LOWER LH

COWL, SIDE LOWER LH
13

03541-0516A SCREW

SCREW
14

94482-47H00 COVER, SIDE COWL LH

COVER, SIDE COWL LH
15

63115-37H00 CUSHION, SIDE COWL

CUSHION, SIDE COWL
