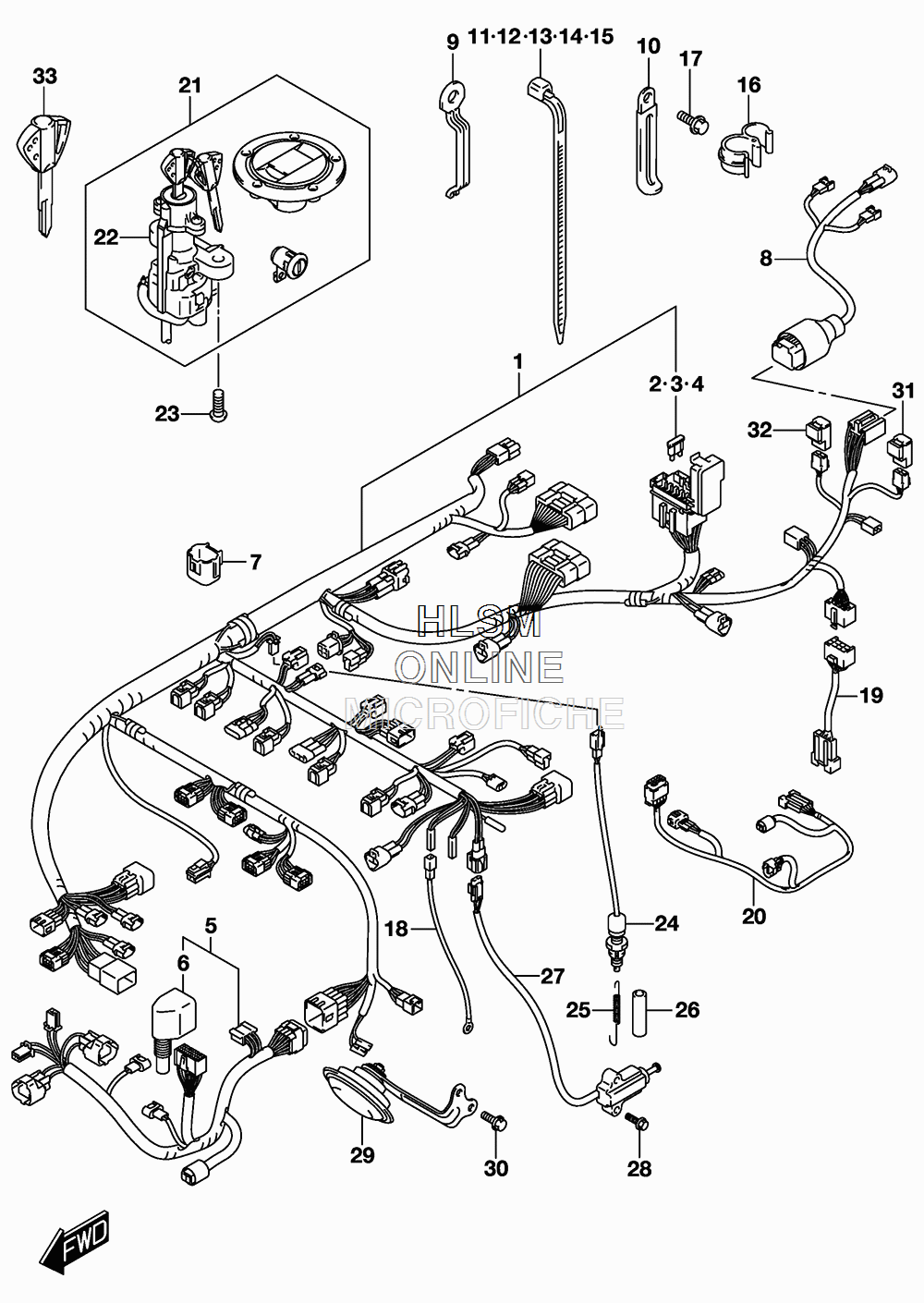

ELECTRICAL - WIRING HARNESS (CAN) для Suzuki GSX-R1000A L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
136610-47HE0 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 ...FUSE (10A)...FUSE (10A)
-
309481-15501 ...FUSE (15A)...FUSE (15A)
-
409481-30501 ...FUSE (30A)...FUSE (30A)
-
536620-47H20 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
636618-47H00 ...COVER, CONNECTOR...COVER, CONNECTOR
-
736654-06J20 CAP, TSCAP, TS
-
836855-47H00 WIRE, REARCOMBINATIONWIRE, REARCOMBINATION
-
909403-06322 CLAMPCLAMP
-
1009404-06429 CLAMP (L:45)CLAMP (L:45)
-
1109407-14403 CLAMP (L:125)CLAMP (L:125)
-
1209407-11401 CLAMP (L:95)CLAMP (L:95)
-
1309407-18402 CLAMP (L:165)CLAMP (L:165)
-
1409407-19401 CLAMP (L:190)CLAMP (L:190)
-
1509407-19401 CLAMP (L:190)CLAMP (L:190)
-
1609408-00242 CLAMPCLAMP
-
1701547-0612A BOLTBOLT
-
1836851-47H01 WIRE, OIL PRESSURE SWITCHWIRE, OIL PRESSURE SWITCH
-
1936857-47H00 WIRE, RELAY LEADWIRE, RELAY LEAD
-
2036859-47H10 WIRE, ISC LEADWIRE, ISC LEAD
-
2137103-41840 LOCK SETLOCK SET
-
2237100-41G90 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
2309139-08016 BOLT (8X20)BOLT (8X20)
-
2437740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2509443-06087 SPRINGSPRING
-
2609352-50823-600 HOSE (5X8.2X600) (L:600->60)HOSE (5X8.2X600) (L:600->60)
-
2737840-47H00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2809103-06286 BOLT (6X20)BOLT (6X20)
-
2938500-47H00 HORN ASSYHORN ASSY
-
3001550-0616B BOLTBOLT
-
3138740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
3238740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
3337146-41G00 KEY, BLANK (OPT)KEY, BLANK (OPT)
