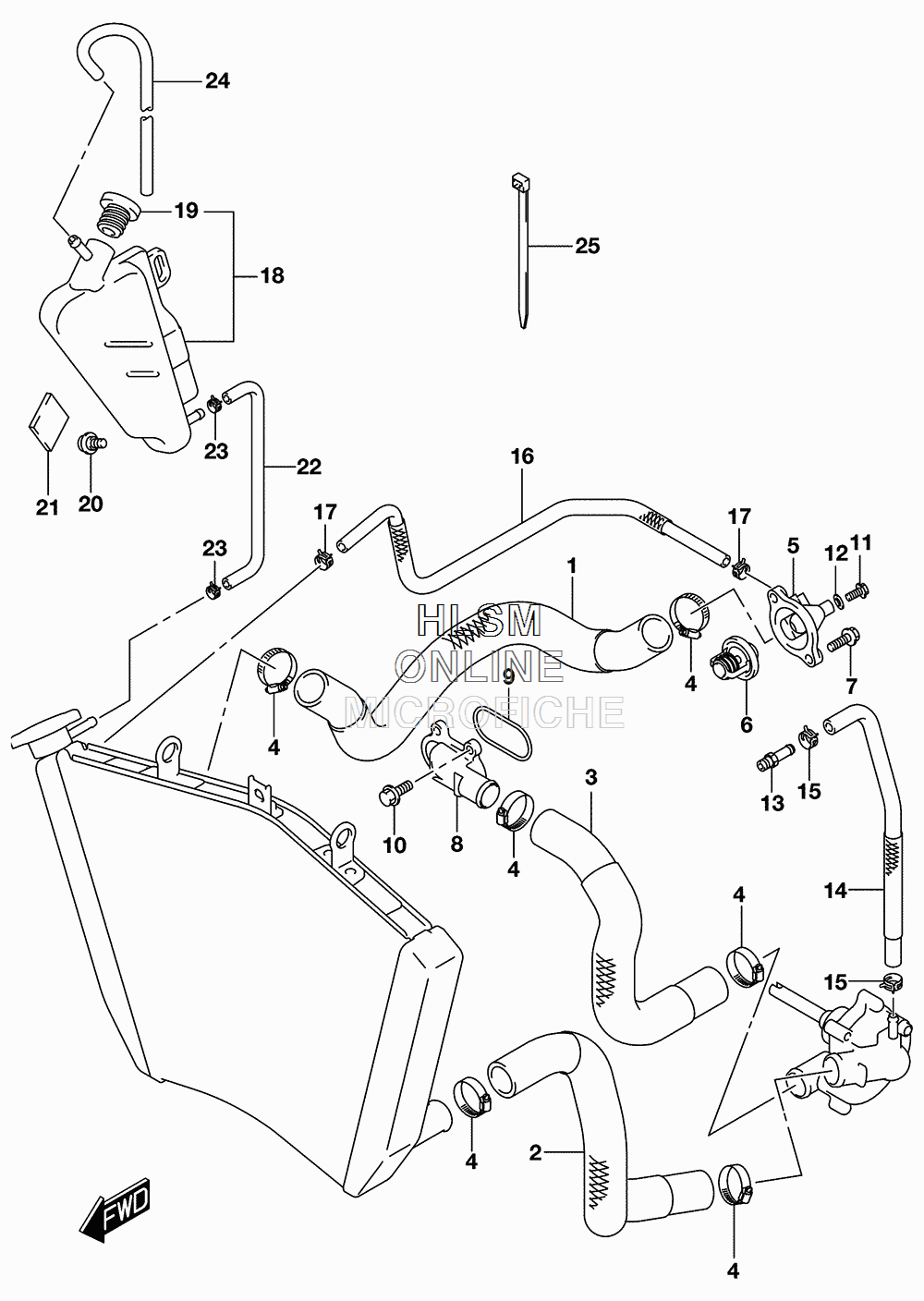

RADIATOR HOSE W/ RESERVOIR для Suzuki GSX-R1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
117851-47H10 HOSE, RADIATOR INLETHOSE, RADIATOR INLET
-
217852-47H10 HOSE, RADIATOR OUTLETHOSE, RADIATOR OUTLET
-
317853-47H10 HOSE, CYLINDER INLETHOSE, CYLINDER INLET
-
409402-35501 CLAMPCLAMP
-
517661-35F00 COVER, THERMOSTATCOVER, THERMOSTAT
-
617670-47H00 THERMOSTAT, WATERTHERMOSTAT, WATER
-
701547-0620A BOLTBOLT
-
817861-47H00 CONNECTOR, CYLINDER INLETCONNECTOR, CYLINDER INLET
-
917863-47H00 O RINGO RING
-
1001547-0620A BOLTBOLT
-
1117568-50F00 BOLT, THERMOSTAT COVER AIRBOLT, THERMOSTAT COVER AIR
-
1209168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
1309362-09011 UNIONUNION
-
1417854-47H20 HOSE, WATER BYPASSHOSE, WATER BYPASS
-
1509401-12414 CLAMPCLAMP
-
1617855-47H10 HOSE, WATER AIR BLEEDHOSE, WATER AIR BLEED
-
1709401-10409 CLIPCLIP
-
1817910-47H00 TANK ASSY, RESERVOIRTANK ASSY, RESERVOIR
-
1917931-02FA0 ...CAP...CAP
-
2009111-06085 BOLT (6X12)BOLT (6X12)
-
2163191-25C00 CUSHIONCUSHION
-
2217981-47H00 HOSE, RESERVOIR TANK INLETHOSE, RESERVOIR TANK INLET
-
2309401-08411 CLIPCLIP
-
2417982-47H00 HOSE, OVER FLOWHOSE, OVER FLOW
-
2509407-10404 CLAMP (L:100)CLAMP (L:100)
