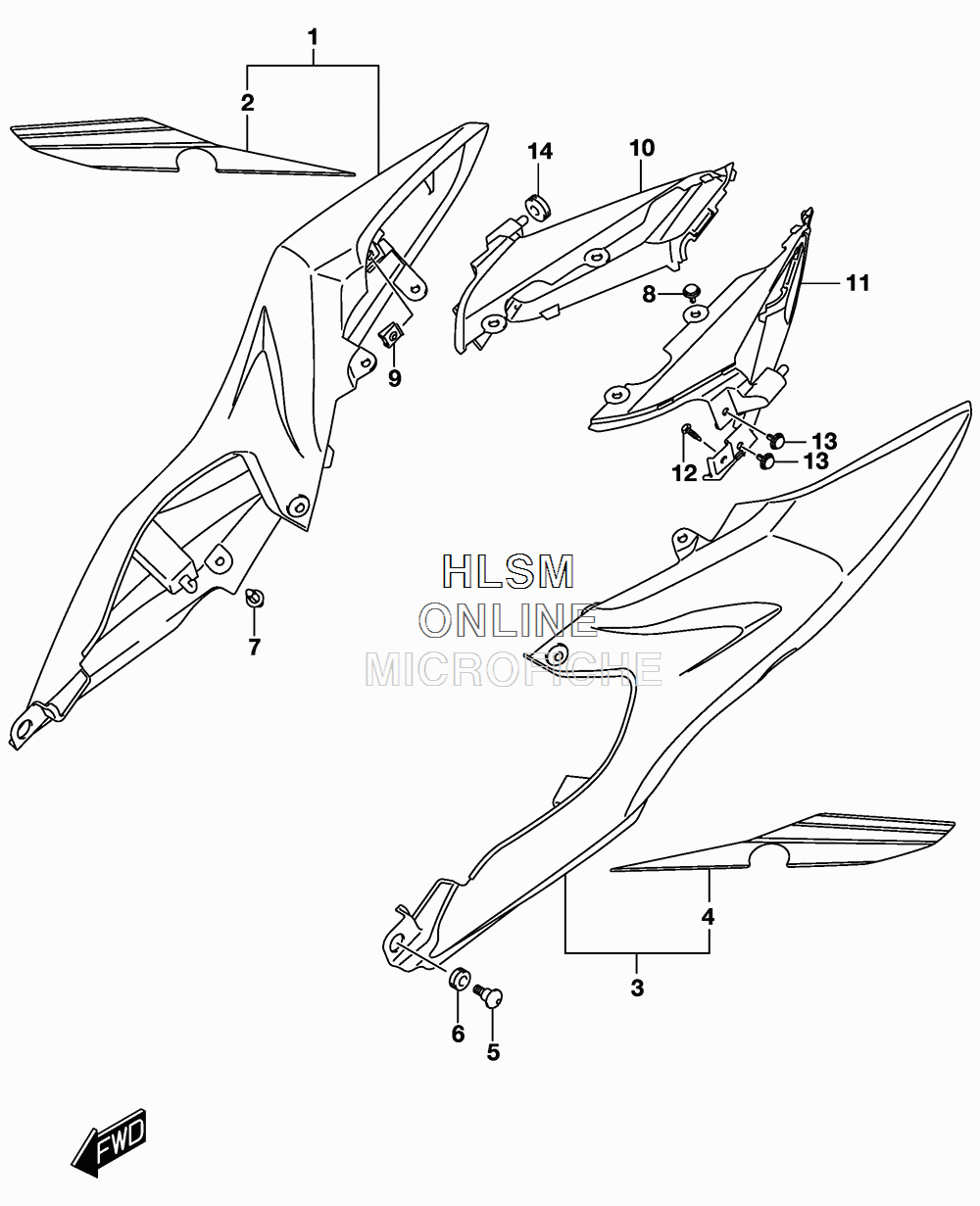

FRAME COVER (AJP-JSP) для Suzuki GSX-R1000 L6 - 2016 года выпуска`
-
№АртикулНазвание
-
147110-47H20-YWW COVER, FRAME RH (WHITE) (FOR AJP)COVER, FRAME RH (WHITE) (FOR AJP)
-
147110-47H20-YVB COVER, FRAME RH (BLACK) (FOR JSP)COVER, FRAME RH (BLACK) (FOR JSP)
-
268135-47H30-BAG ...TAPE, FRAME COVER RH (FOR YWW)...TAPE, FRAME COVER RH (FOR YWW)
-
268135-47H30-BAF ...TAPE, FRAME COVER RH (FOR YVB)...TAPE, FRAME COVER RH (FOR YVB)
-
347210-47H20-YWW COVER, FRAME LH (WHITE) (FOR AJP)COVER, FRAME LH (WHITE) (FOR AJP)
-
347210-47H20-YVB COVER, FRAME LH (BLACK) (FOR JSP)COVER, FRAME LH (BLACK) (FOR JSP)
-
468145-47H30-BAG ...TAPE, FRAME COVER RH (FOR YWW)...TAPE, FRAME COVER RH (FOR YWW)
-
468145-47H30-BAF ...TAPE, FRAME COVER RH (FOR YVB)...TAPE, FRAME COVER RH (FOR YVB)
-
547133-43H00 SCREW, FRONTSCREW, FRONT
-
609320-08021 CUSHIONCUSHION
-
709409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
809409-06328 CLIPCLIP
-
909148-05038 NUTNUT
-
1047611-47H00-YKV COVER, FRAME REAR RH (BLACK)COVER, FRAME REAR RH (BLACK)
-
1147621-47H00-YKV COVER, FRAME REAR LH (BLACK)COVER, FRAME REAR LH (BLACK)
-
1203541-0512A SCREWSCREW
-
1309409-06328 CLIPCLIP
-
1409320-06504 CUSHIONCUSHION
