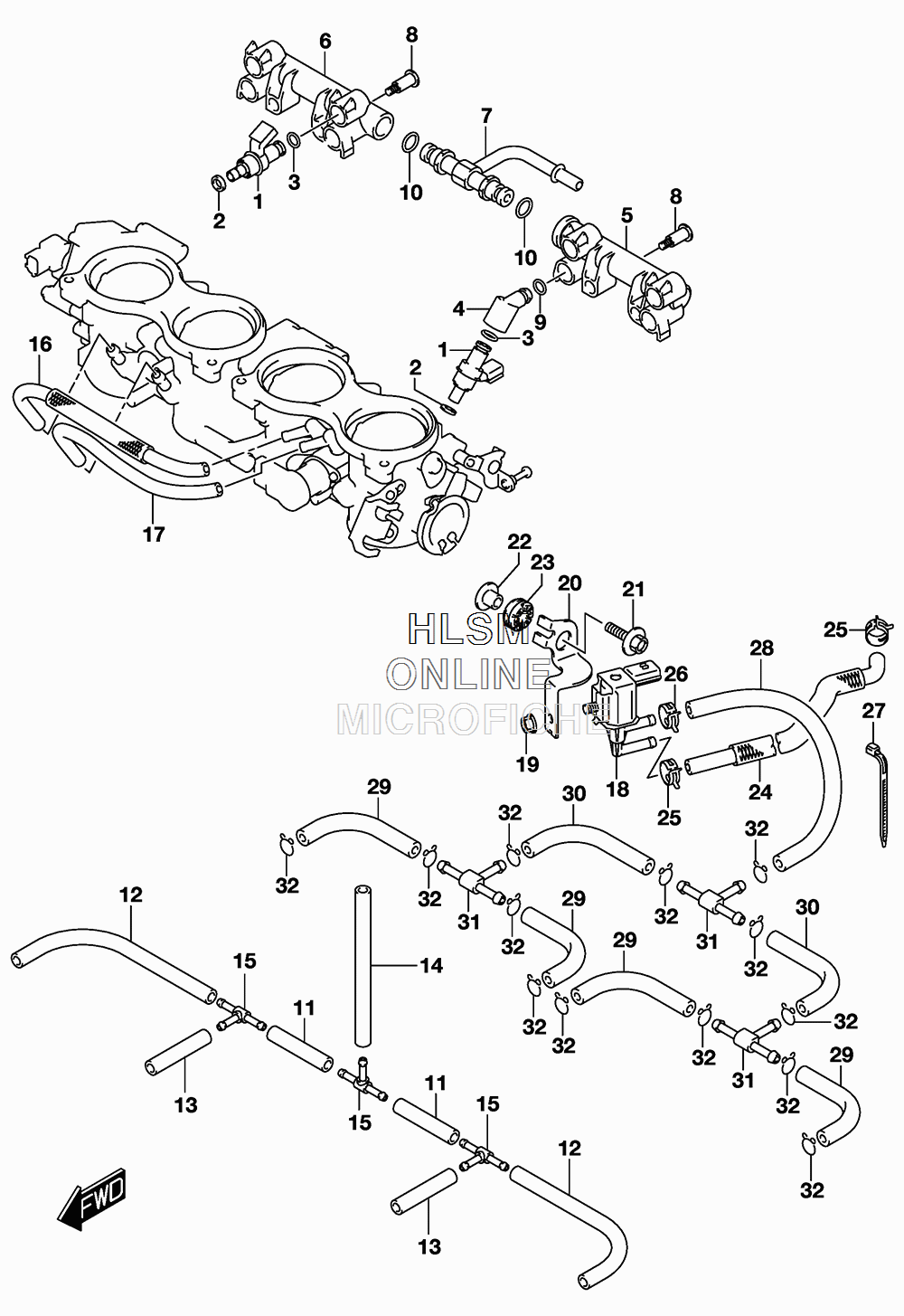

CARBURETOR - THROTTLE BODY HOSE/JOINT (CAL) для Suzuki GSX-R1000 L6 - 2016 года выпуска
-
№АртикулНазвание
-
115710-21H10 INJECTOR ASSYINJECTOR ASSY
-
215722-21H00 RING, SEALRING, SEAL
-
315721-21H00 O RINGO RING
-
413473-21H00 PIPE, FUELPIPE, FUEL
-
513474-47H00 PIPE, FUELPIPE, FUEL
-
613474-47H10 PIPE, FUELPIPE, FUEL
-
713473-15H10 JOINTJOINT
-
813601-35F00 SCREWSCREW
-
915721-24F00 O RINGO RING
-
1015721-10G00 O RINGO RING
-
1113684-47H20 HOSEHOSE
-
1213685-47H20 HOSEHOSE
-
1313686-47H20 HOSEHOSE
-
1413687-47H20 HOSEHOSE
-
1513471-24F30 T JOINTT JOINT
-
1613680-21H10 TUBE, RUBBERTUBE, RUBBER
-
1713698-21H00 TUBE, RUBBERTUBE, RUBBER
-
1818117-52G10 VALVE, CANISTER PURGEVALVE, CANISTER PURGE
-
1908316-1006A NUTNUT
-
2013165-47H00 BRACKETBRACKET
-
2109116-06171 BOLT (6X30)BOLT (6X30)
-
2209180-06319 SPACER (6.5X10X11.6)SPACER (6.5X10X11.6)
-
2309320-10055 CUSHIONCUSHION
-
2413680-47H00 HOSEHOSE
-
2509401-11413 CLIPCLIP
-
2609401-10411 CLIPCLIP
-
2709407-14403 CLAMP (L:125)CLAMP (L:125)
-
2813683-47H20 HOSEHOSE
-
2913683-21H10 HOSEHOSE
-
3013683-21H20 HOSEHOSE
-
3113685-36E50 JOINJOIN
-
3213693-24F00 CLIPCLIP
