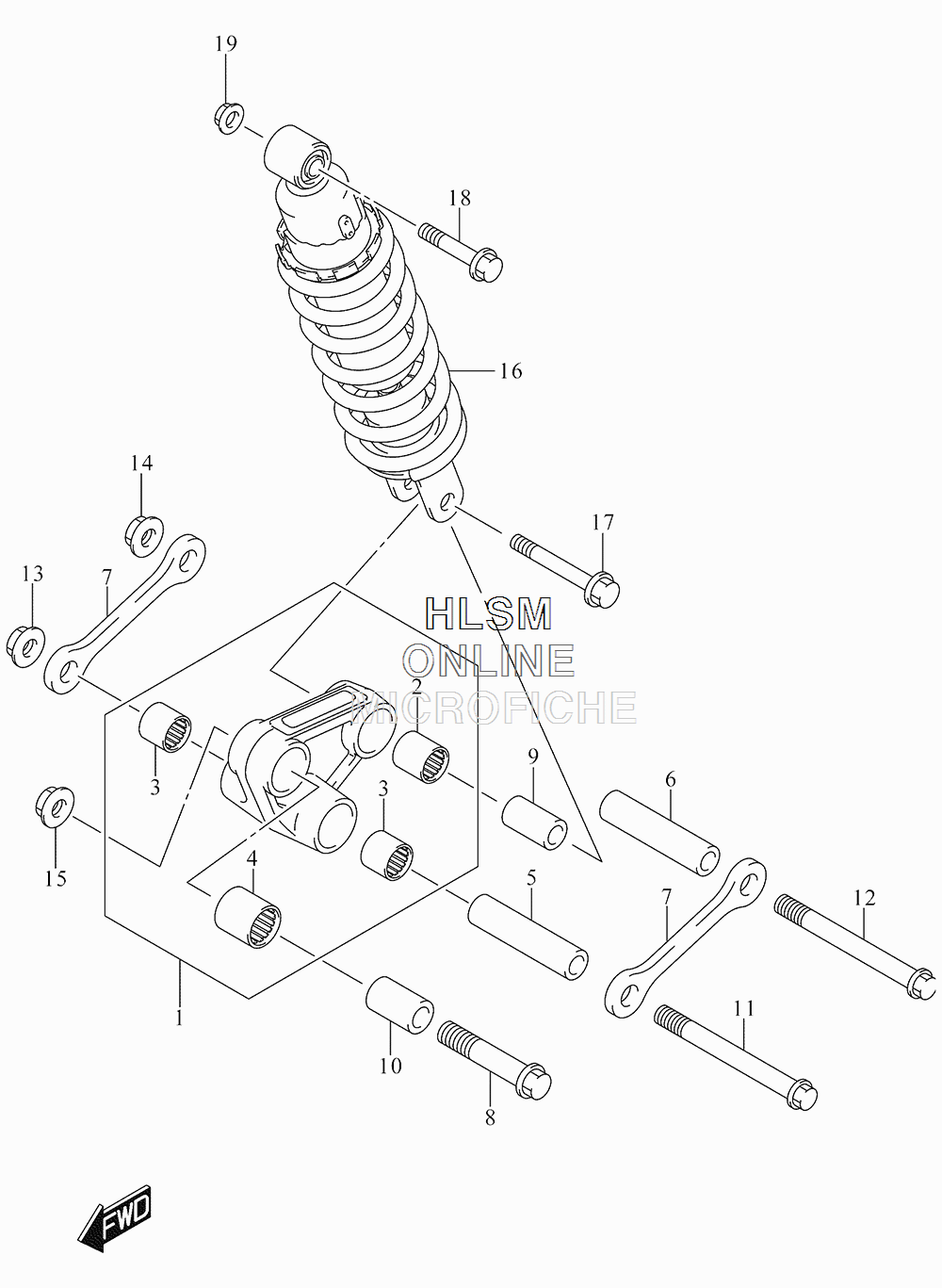

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki SFV650 L5 GLADIUS - 2015 года выпуска`
-
№АртикулНазвание
-
162600-44880 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-17034 ...BEARING (17X24X26)...BEARING (17X24X26)
-
309263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
409263-20073 ...BEARING (20X27X30)...BEARING (20X27X30)
-
562626-17G00 SPACER, RR CUSHION LEVERSPACER, RR CUSHION LEVER
-
662626-17G00 SPACER, RR CUSHION RODSPACER, RR CUSHION ROD
-
762641-44H00 ROD, RR CUSHION LEVERROD, RR CUSHION LEVER
-
862668-42A02 BOLT, RR CUSHION LEVERBOLT, RR CUSHION LEVER
-
962684-40A10 SPACER, RR CUSHION LEVERSPACER, RR CUSHION LEVER
-
1062684-12C00 SPACER, RR CUSHION LEVERSPACER, RR CUSHION LEVER
-
1109103-12034 BOLT (12X96)BOLT (12X96)
-
1209103-12034 BOLT (12X96)BOLT (12X96)
-
1309159-12056 NUTNUT
-
1409159-12056 NUTNUT
-
1509159-12056 NUTNUT
-
1662100-44HB0-019 ABSORBER, REAR SHOCK (BLACK)ABSORBER, REAR SHOCK (BLACK)
-
1709103-10126 BOLT (10X48) (LOWER)BOLT (10X48) (LOWER)
-
1809103-10213 BOLT (10X52) (UPPER)BOLT (10X52) (UPPER)
-
1909159-10115 NUTNUT
