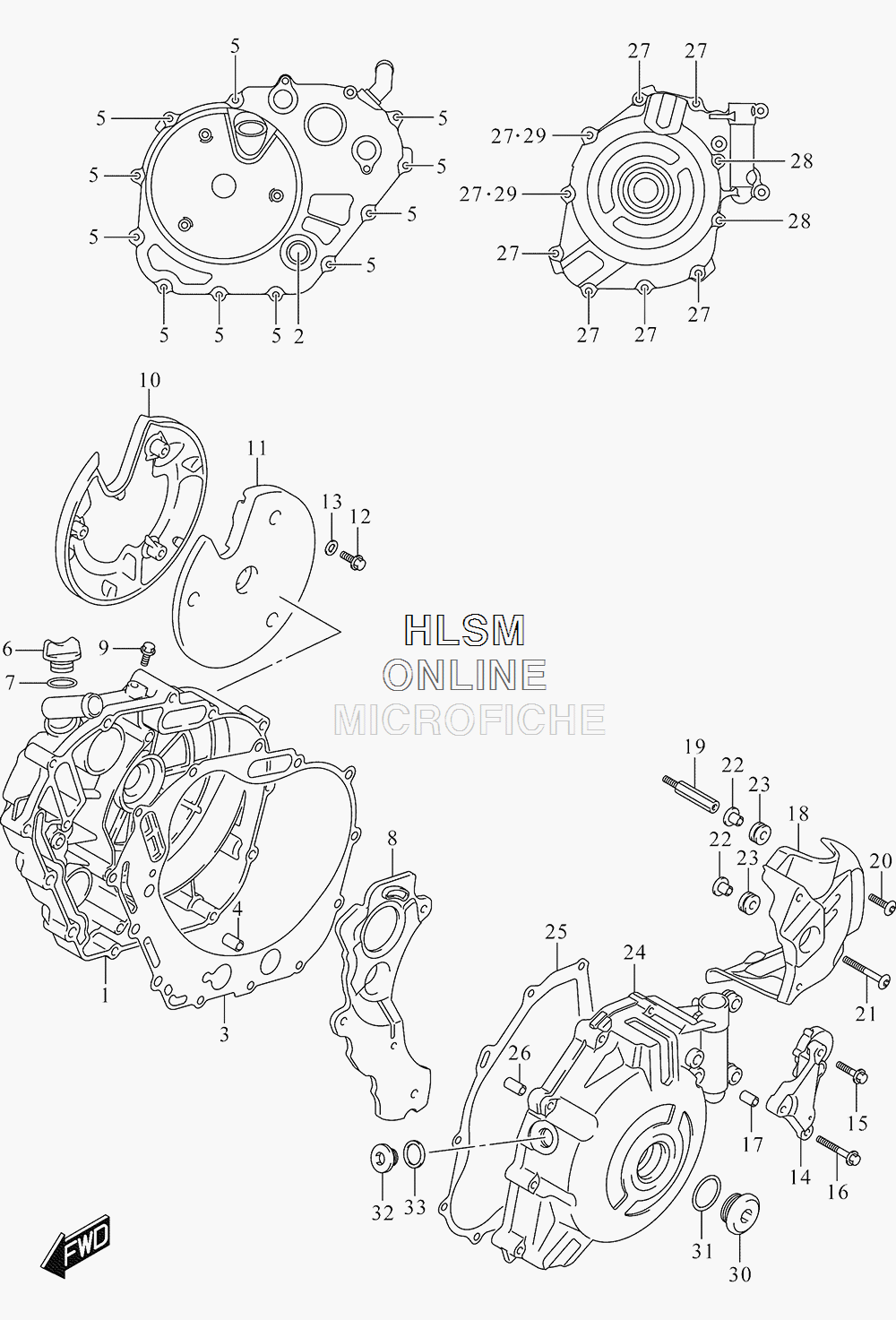

CRANKCASE COVER для Suzuki SFV650 L5 GLADIUS - 2015 года выпуска`
-
№АртикулНазвание
-
111340-44H10 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 ...LENS, OIL LEVEL CHECK...LENS, OIL LEVEL CHECK
-
311482-44H00 GASKET, CLUTCH COVER INNERGASKET, CLUTCH COVER INNER
-
404211-09149 PINPIN
-
509103-06214 BOLT (6X35)BOLT (6X35)
-
611971-25D00 PLUG, OIL FILLERPLUG, OIL FILLER
-
709280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
811343-44H00 SEPARATOR, OILSEPARATOR, OIL
-
909106-06098 BOLT (6X12)BOLT (6X12)
-
1011342-44H00 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
1111344-44H00 DAMPERDAMPER
-
1209103-06174 BOLT (6X16)BOLT (6X16)
-
1309168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1411361-44H00 COVER, ENGINE SPROCKET INNERCOVER, ENGINE SPROCKET INNER
-
1501547-0620A BOLTBOLT
-
1601547-0635A BOLTBOLT
-
1704211-09129 PINPIN
-
1811371-44H00 COVER, ENGINE SPROCKET OUTERCOVER, ENGINE SPROCKET OUTER
-
1911372-22H00 BOLTBOLT
-
2009139-06028 SCREW (6X20)SCREW (6X20)
-
2109139-06105 SCREW (6X40)SCREW (6X40)
-
2209169-06062 WASHERWASHER
-
2309320-09016 CUSHIONCUSHION
-
2411351-44H00 COVER, MAGNETOCOVER, MAGNETO
-
2511483-19F00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
2604211-09149 PINPIN
-
2709103-06214 BOLT (6X35)BOLT (6X35)
-
2809103-06239 BOLT (6X65)BOLT (6X65)
-
2909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
3009259-26011 PLUG (26X9)PLUG (26X9)
-
3109280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
3209248-16012 PLUG (16X8)PLUG (16X8)
-
3309168-16002 GASKET (16X22X2)GASKET (16X22X2)
