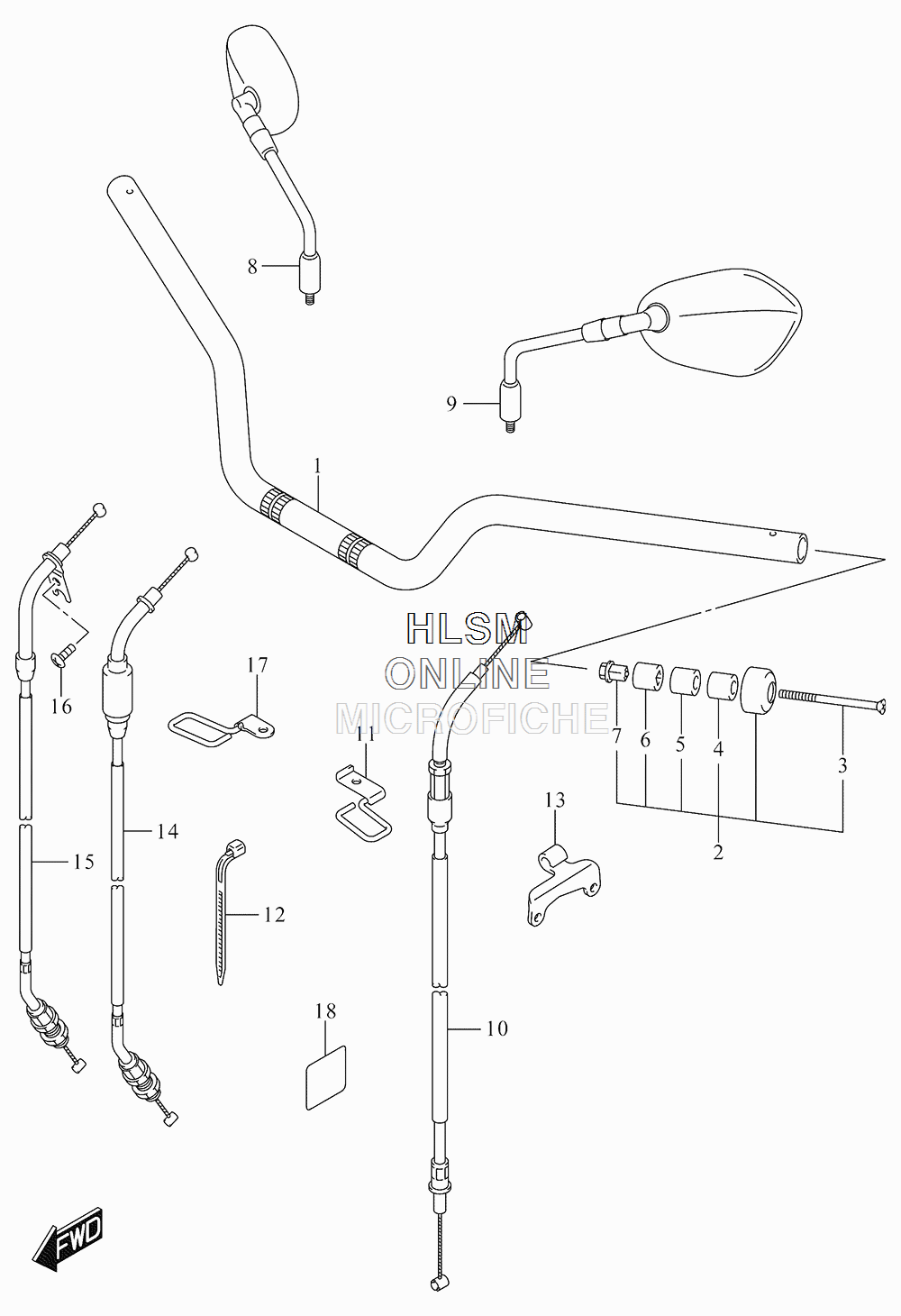

HANDLEBAR для Suzuki SFV650 L5 GLADIUS - 2015 года выпуска
-
№АртикулНазвание
-
156111-44H00 HANDLEBARHANDLEBAR
-
256200-41830 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
302122-0670B ...SCREW...SCREW
-
456272-42F00 ...EXPANDER, OUTER...EXPANDER, OUTER
-
509180-06161 ...SPACER (6.5X16X15)...SPACER (6.5X16X15)
-
656272-10G00 ...EXPANDER, INNER...EXPANDER, INNER
-
756273-10G10 ...NUT...NUT
-
856500-08J10 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
956600-08J10 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
1058200-44H00 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1158630-44H00 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1209407-18402 CLAMP (L:165)CLAMP (L:165)
-
1358634-44H00 STOPPER, CLUTCH CABLESTOPPER, CLUTCH CABLE
-
1458300-44H00 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1558300-44H10 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1609125-05042 SCREW (5X10)SCREW (5X10)
-
1758620-44H20 GUIDE, THROTTLE CABLE NO.1GUIDE, THROTTLE CABLE NO.1
-
1887873-56K50 TAPE, HEAD PIPETAPE, HEAD PIPE
