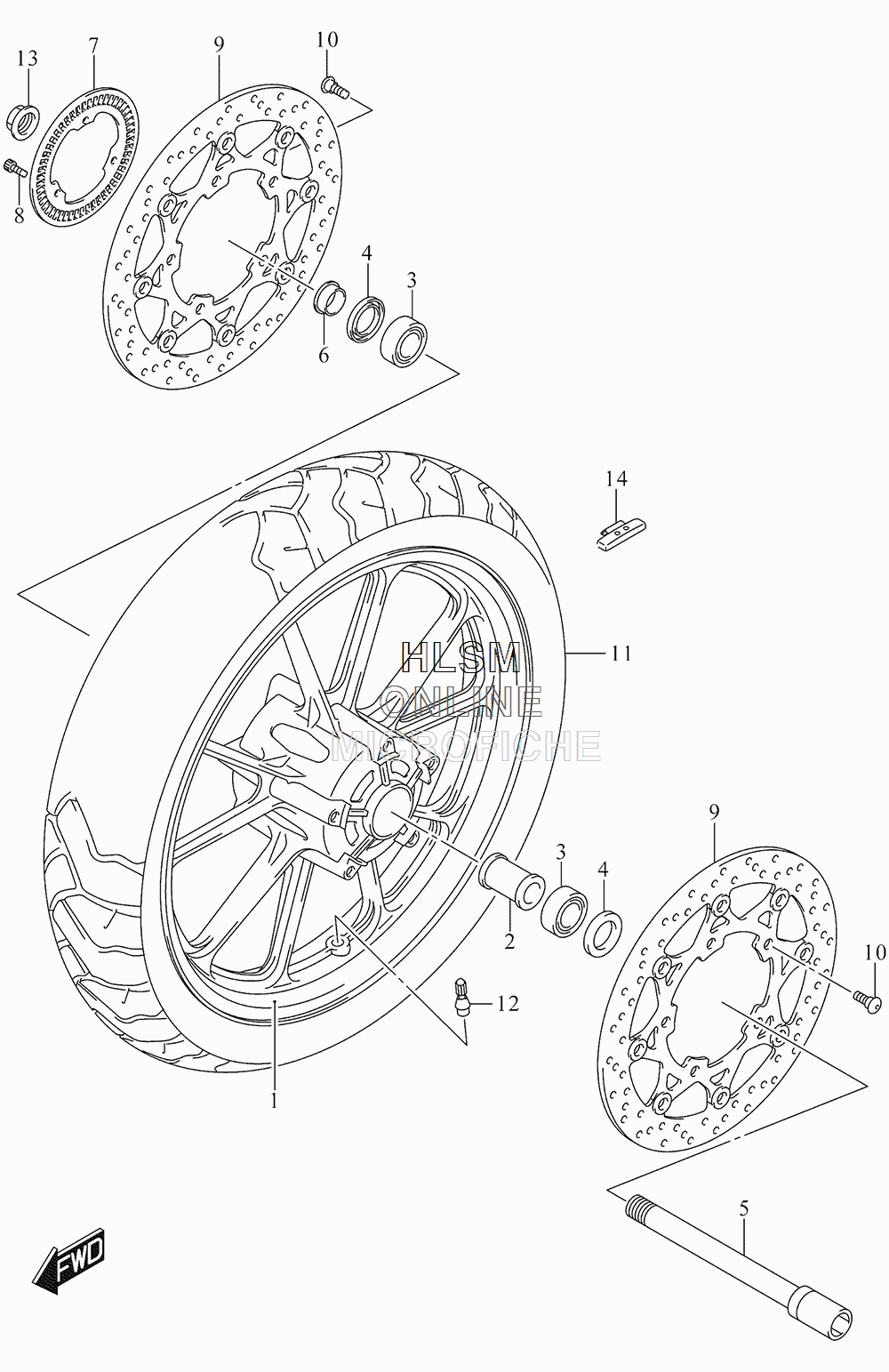

WHEEL - FRONT для Suzuki DL1000A L5 V-STROM 1000 ADVENTURE W/ABS - 2015 года выпуска
-
№АртикулНазвание
-
154111-31J00-019 WHEEL, FRONT (19M/CXMT2.50) (BLACK)WHEEL, FRONT (19M/CXMT2.50) (BLACK)
-
254731-33E20 SPACER, FRONT WHEEL BEARINGSPACER, FRONT WHEEL BEARING
-
309262-25167 BEARING (25X52X15)BEARING (25X52X15)
-
409285-32004 OIL SEAL (32X52X7)OIL SEAL (32X52X7)
-
554711-31J00 AXLE, FRONTAXLE, FRONT
-
654751-41G10 SPACER, FRONT AXLESPACER, FRONT AXLE
-
754162-27G00 RING, SPEED SENSOR FRONTRING, SPEED SENSOR FRONT
-
807130-0512A BOLTBOLT
-
959210-31J00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1009106-08160 BOLT (8X21)BOLT (8X21)
-
1155110-31J00 TIRE, FRONT (110/80R19M/C 59V)TIRE, FRONT (110/80R19M/C 59V)
-
1243130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
1354712-47H00 NUT, FRONT AXLENUT, FRONT AXLE
-
1455411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
1455412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
1455413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
