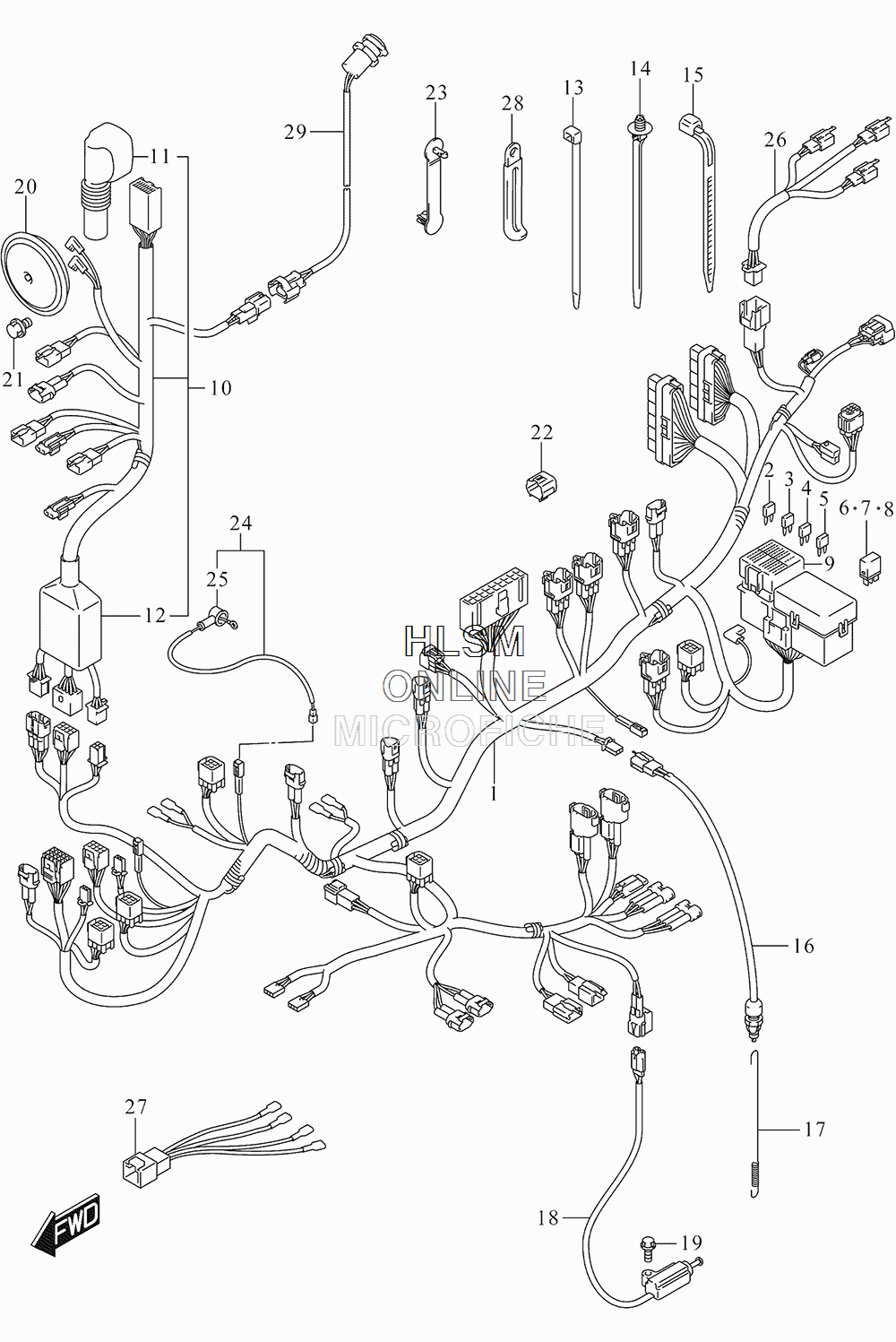

ELECTRICAL - WIRING HARNESS для Suzuki DL1000A L5 V-STROM 1000 ADVENTURE W/ABS - 2015 года выпуска

№

Артикул

Название
1

36610-31J80 HARNESS, WIRING NO.1

HARNESS, WIRING NO.1
2

09481-03501 ...FUSE (3A)

...FUSE (3A)
3

09481-10504 ...FUSE (10A)

...FUSE (10A)
4

09481-15504 ...FUSE (15A)

...FUSE (15A)
5

09481-25504 ...FUSE (25A)

...FUSE (25A)
6

38860-76F01 ...RELAY ASSY (FOR FUEL PUMP)

...RELAY ASSY (FOR FUEL PUMP)
7

38860-76F01 ...RELAY ASSY (FOR FAN MOTOR)

...RELAY ASSY (FOR FAN MOTOR)
8

38860-76F01 ...RELAY ASSY (FOR SIDE STAND)

...RELAY ASSY (FOR SIDE STAND)
9

36717-31J00 ...CAP ASSY,FUSE BOX

...CAP ASSY,FUSE BOX
10

36620-31J00 HARNESS, WIRING NO.2

HARNESS, WIRING NO.2
11

36618-41G00 ...COVER, SPEEDOMETER

...COVER, SPEEDOMETER
12

36618-18G10 ...COVER, SPEEDOMETER

...COVER, SPEEDOMETER
13

09407-14407 CLAMP (L:145)

CLAMP (L:145)
14

09407-17403 CLAMP (L:154)

CLAMP (L:154)
15

09407-14403 CLAMP (L:125)

CLAMP (L:125)
16

37740-31D00 SWITCH ASSY, STOP LAMP

SWITCH ASSY, STOP LAMP
17

43259-31J00 SPRING, STOP LAMP

SPRING, STOP LAMP
18

37840-24F00 SWITCH ASSY, SIDE STAND

SWITCH ASSY, SIDE STAND
19

09103-08357 BOLT (8X35)

BOLT (8X35)
20

38500-41F50 HORN ASSY

HORN ASSY
21

01550-0612B BOLT

BOLT
22

36654-06J20 CAP, TS

CAP, TS
23

36651-48E00 CLAMP

CLAMP
24

36851-31J02 WIRE, OIL PRESSURE SWITCH LEAD

WIRE, OIL PRESSURE SWITCH LEAD
25

36618-31J00 ...CAP, OIL PRESSURE SWITCH

...CAP, OIL PRESSURE SWITCH
26

36856-31J00 WIRE, REAR TURNSIGNAL LEAD

WIRE, REAR TURNSIGNAL LEAD
27

36854-31J00 WIRE, IGNITION COIL LEAD

WIRE, IGNITION COIL LEAD
28

09404-06429 CLAMP (L:45)

CLAMP (L:45)
29

38850-31J00 TERMINAL, POWER SOURCE

TERMINAL, POWER SOURCE
