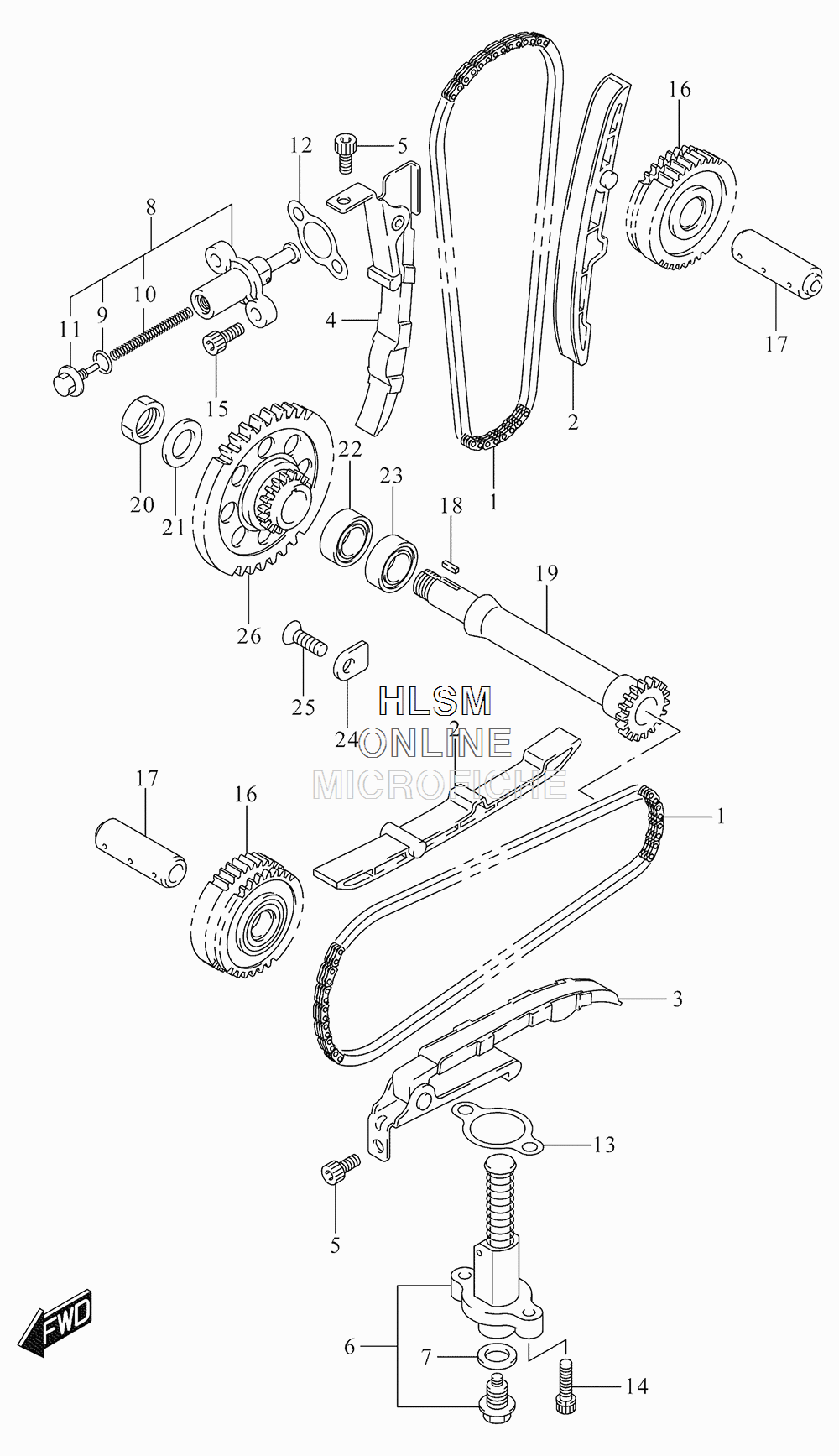

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DL1000A L5 V-STROM 1000 ADVENTURE W/ABS - 2015 года выпуска`
-
№АртикулНазвание
-
112760-23F20 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-06G00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312810-06G00 TENSIONER, FRONT CAM CHAINTENSIONER, FRONT CAM CHAIN
-
412815-06G00 TENSIONER, REAR CAM CHAINTENSIONER, REAR CAM CHAIN
-
507120-0612A BOLTBOLT
-
612832-05A10 ADJUSTER ASSY, FRONT TENSIONERADJUSTER ASSY, FRONT TENSIONER
-
709168-12018 ...GASKET (12X21X2)...GASKET (12X21X2)
-
812830-30A01 ADJUSTER ASSY, REAR TENSIONERADJUSTER ASSY, REAR TENSIONER
-
912832-02A00 ...O RING...O RING
-
1012833-30A01 ...SPRING...SPRING
-
1112834-02A00 ...PLUG...PLUG
-
1212837-19B10 GASKETGASKET
-
1312837-24A10 GASKETGASKET
-
1407130-0625A BOLTBOLT
-
1507130-0620A BOLTBOLT
-
1612750-31J00 GEAR, CAM CHAIN IDLER NO.2 (NT:31/41)GEAR, CAM CHAIN IDLER NO.2 (NT:31/41)
-
1712755-31J00 SHAFT, IDLER NO...2SHAFT, IDLER NO...2
-
1809421-04004 KEYKEY
-
1912716-06G00 SHAFT, IDLERSHAFT, IDLER
-
2009140-16001 NUTNUT
-
2109181-16212 SHIM (16X26X1.5)SHIM (16X26X1.5)
-
2208112-63030 BEARING (RIGHT HAND)BEARING (RIGHT HAND)
-
2309262-25006 BEARING (25X47X8) (LEFT HAND)BEARING (25X47X8) (LEFT HAND)
-
2424741-20A00 RETAINER, BEARINGRETAINER, BEARING
-
2509126-06011 SCREW (6X12)SCREW (6X12)
-
2612731-06G01 SPROCKET, IDLER NO.1 (NT:36)SPROCKET, IDLER NO.1 (NT:36)
