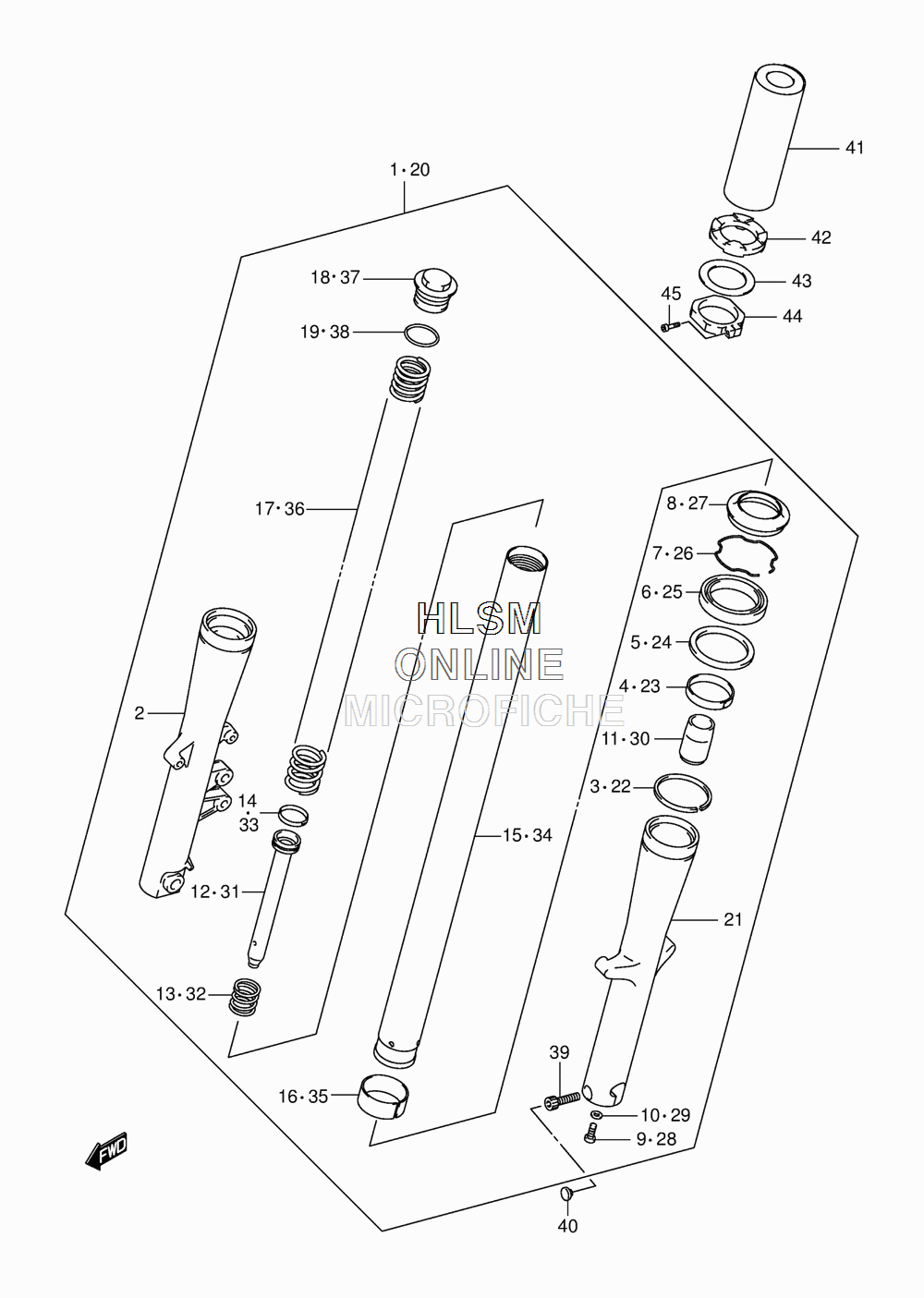

SUSPENSION - FRONT FORK для Suzuki VL800 L4 B.O.S.S. - 2014 года выпуска
-
№АртикулНазвание
-
151103-41F70 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251131-41F70 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
351469-41F21 GUIDE, CASEGUIDE, CASE
-
451152-11D60 BUSH, GUIDEBUSH, GUIDE
-
551168-38B00 SPACER, SEALSPACER, SEAL
-
651153-08D00 SEAL, OILSEAL, OIL
-
751556-38B00 RINGRING
-
851571-47D50 SEAL, DUSTSEAL, DUST
-
951147-06F10 BOLTBOLT
-
1051148-31030 GASKETGASKET
-
1151195-10F00 PIECE, OIL LOCKPIECE, OIL LOCK
-
1251146-10F00 SEAT, PIPESEAT, PIPE
-
1351177-10F00 SPRING, REBOUNDSPRING, REBOUND
-
1451196-47D00 RINGRING
-
1551110-41F40 TUBE, INNERTUBE, INNER
-
1651121-42E00 BUSH, SLIDEBUSH, SLIDE
-
1751171-41F40 SPRING, FRONTSPRING, FRONT
-
1851189-41F70 BOLT, FORKBOLT, FORK
-
1951117-12C00 O RINGO RING
-
2051104-41F70 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
2151141-41F70 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
2251469-41F21 GUIDE, CASEGUIDE, CASE
-
2351152-11D60 BUSH, GUIDEBUSH, GUIDE
-
2451168-38B00 SPACER, SEALSPACER, SEAL
-
2551153-08D00 SEAL, OILSEAL, OIL
-
2651556-38B00 RINGRING
-
2751571-47D50 SEAL, DUSTSEAL, DUST
-
2851147-06F10 BOLTBOLT
-
2951148-31030 GASKETGASKET
-
3051195-10F00 PIECE, OIL LOCKPIECE, OIL LOCK
-
3151146-10F00 SEAT, PIPESEAT, PIPE
-
3251177-10F00 SPRING, REBOUNDSPRING, REBOUND
-
3351196-47D00 RINGRING
-
3451110-41F40 TUBE, INNERTUBE, INNER
-
3551121-42E00 BUSH, SLIDEBUSH, SLIDE
-
3651171-41F40 SPRING, FRONTSPRING, FRONT
-
3751189-41F70 BOLT, FORKBOLT, FORK
-
3851117-12C00 O RINGO RING
-
3907130-10357 BOLTBOLT
-
4009250-08014 CAP (OD:12)CAP (OD:12)
-
4151464-41F70 CASE, UNDERCASE, UNDER
-
4251468-10F00 SEAT, RUBBERSEAT, RUBBER
-
4351467-10F70 WASHERWASHER
-
4451465-41F20 SPACERSPACER
-
4551466-10F00 BOLTBOLT
