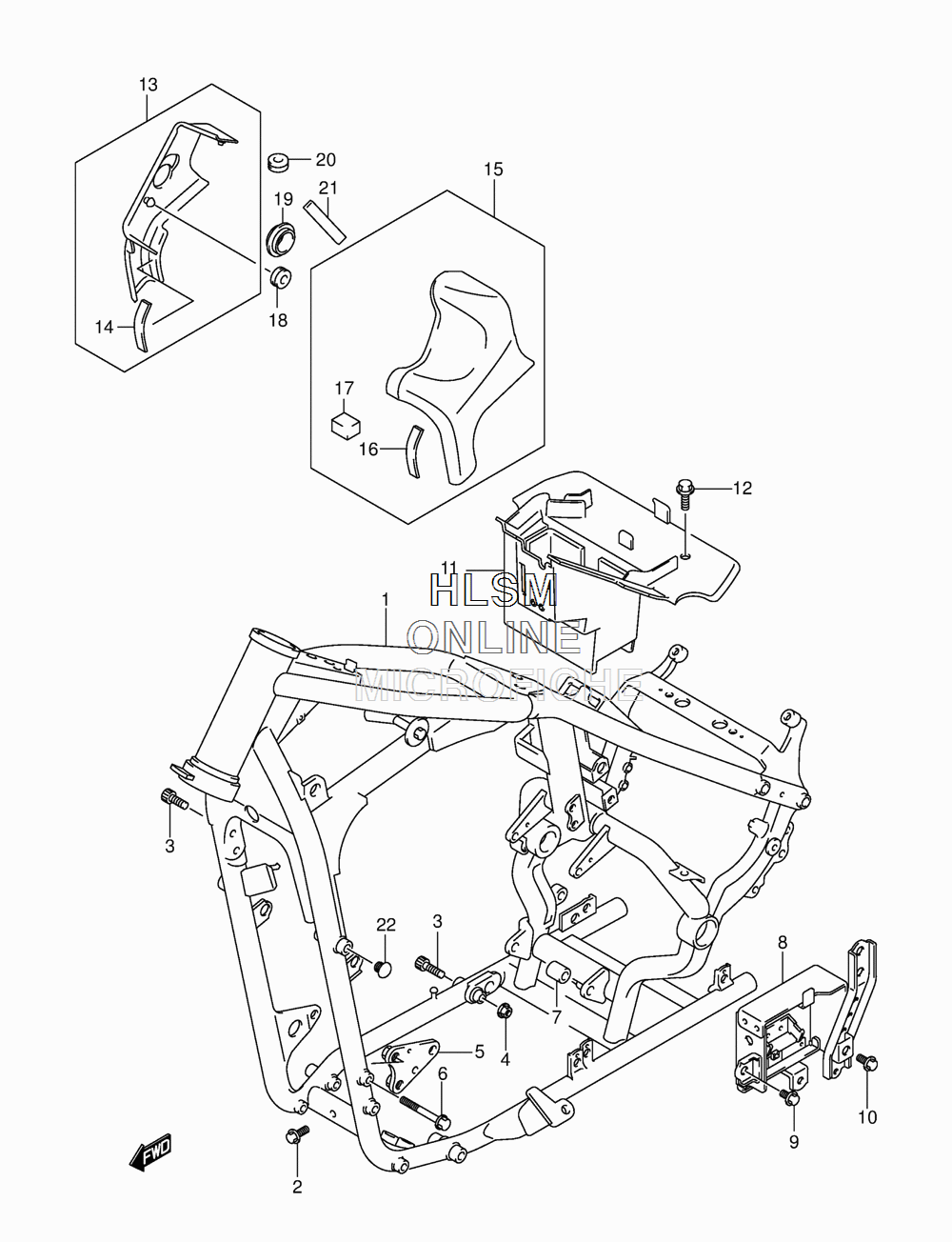

FRAME (CALIF.) для Suzuki VL800 L4 B.O.S.S. - 2014 года выпуска`
-
№АртикулНазвание
-
141100-41F80-019 FRAME (BLACK)FRAME (BLACK)
-
201550-0816B BOLTBOLT
-
307130-1035B BOLTBOLT
-
408319-3110B NUTNUT
-
541920-41F00 PLATE, ENGINE MOUNT LEFT HANDPLATE, ENGINE MOUNT LEFT HAND
-
609112-08013 BOLT (8X65)BOLT (8X65)
-
741941-41F00 SPACER, LOWERSPACER, LOWER
-
841540-41F30 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
901547-0612A BOLTBOLT
-
1001550-0816A BOLTBOLT
-
1147410-41F02 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
1209113-06001 BOLT (6X16)BOLT (6X16)
-
1347350-41F10-019 COVER, FRAME HEAD RIGHT HAND (BLACK)COVER, FRAME HEAD RIGHT HAND (BLACK)
-
1453145-40A00 CUSHIONCUSHION
-
1547360-41F12-019 COVER, FRAME HEAD LEFT HAND (BLACK)COVER, FRAME HEAD LEFT HAND (BLACK)
-
1653145-40A00 CUSHIONCUSHION
-
1753146-05G00 CUSHION, LEFT HAND LOWERCUSHION, LEFT HAND LOWER
-
1809320-08018 CUSHIONCUSHION
-
1947355-41F01 CAP, HEAD COVER RIGHT HANDCAP, HEAD COVER RIGHT HAND
-
2009320-09501 CUSHIONCUSHION
-
2117798-39G00 CUSHION, FRAME HEAD COVER LOWCUSHION, FRAME HEAD COVER LOW
-
2209250-09001 CAP (OD:14)CAP (OD:14)
