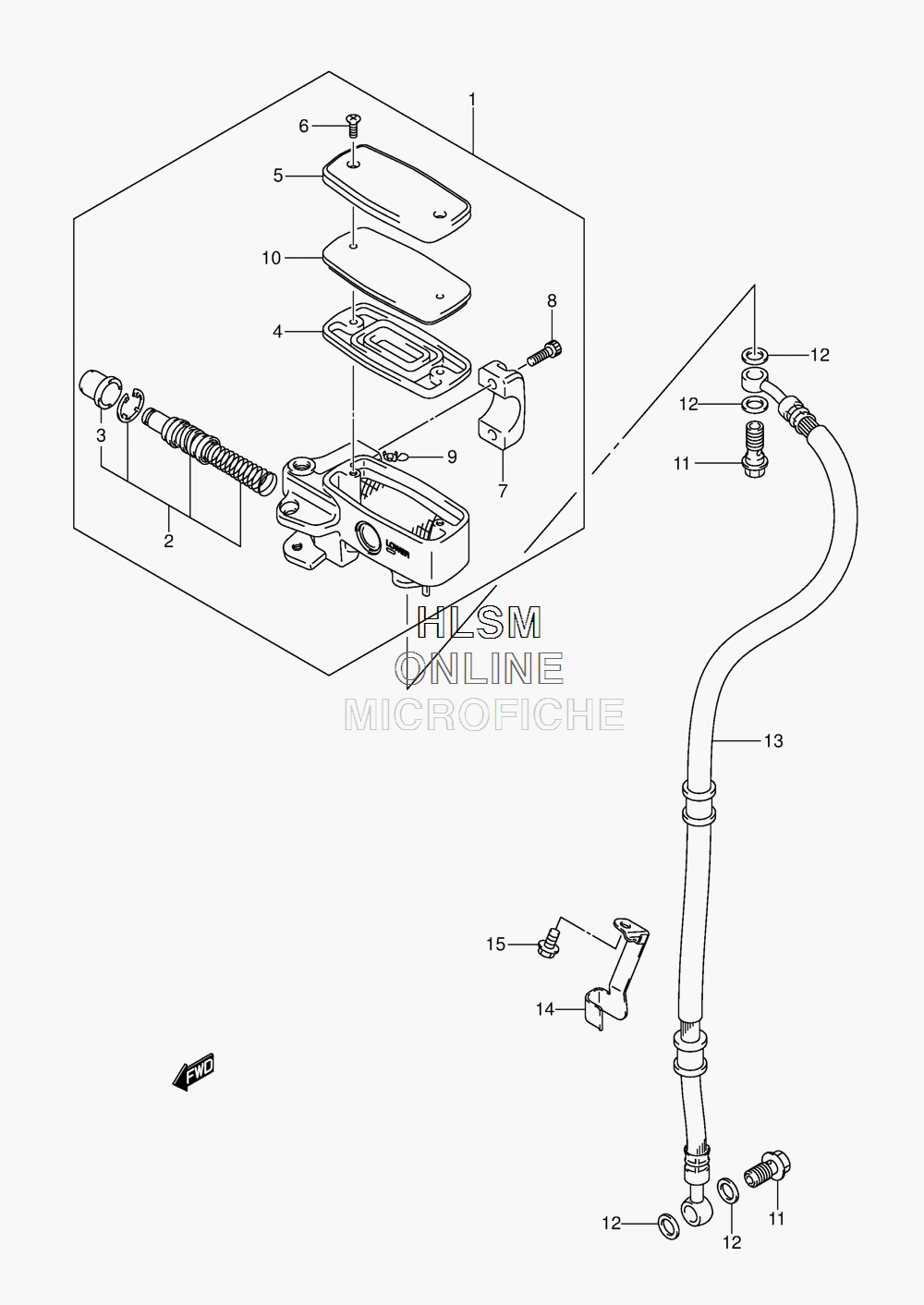

BRAKE - FRONT MASTER CYLINDER для Suzuki VL800 L4 B.O.S.S. - 2014 года выпуска
-
№АртикулНазвание
-
159600-10FF0 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-04810 PISTON/CUP SETPISTON/CUP SET
-
359666-44300 BOOTBOOT
-
459667-10F00 DIAPHRAGMDIAPHRAGM
-
559669-10F40 CAPCAP
-
669689-49300 SCREWSCREW
-
759671-10F20 HOLDERHOLDER
-
807130-06207 BOLTBOLT
-
959664-32F00 PROTECTORPROTECTOR
-
1057437-10F00 PLATEPLATE
-
1109360-10062 UNIONUNION
-
1209161-10009 WASHER (10X15X1.5)WASHER (10X15X1.5)
-
1359480-41F10 HOSE, FRONT BRAKEHOSE, FRONT BRAKE
-
1459266-43H00 CLAMP, BRAKE HOSE UPPERCLAMP, BRAKE HOSE UPPER
-
1501550-0612B BOLTBOLT
