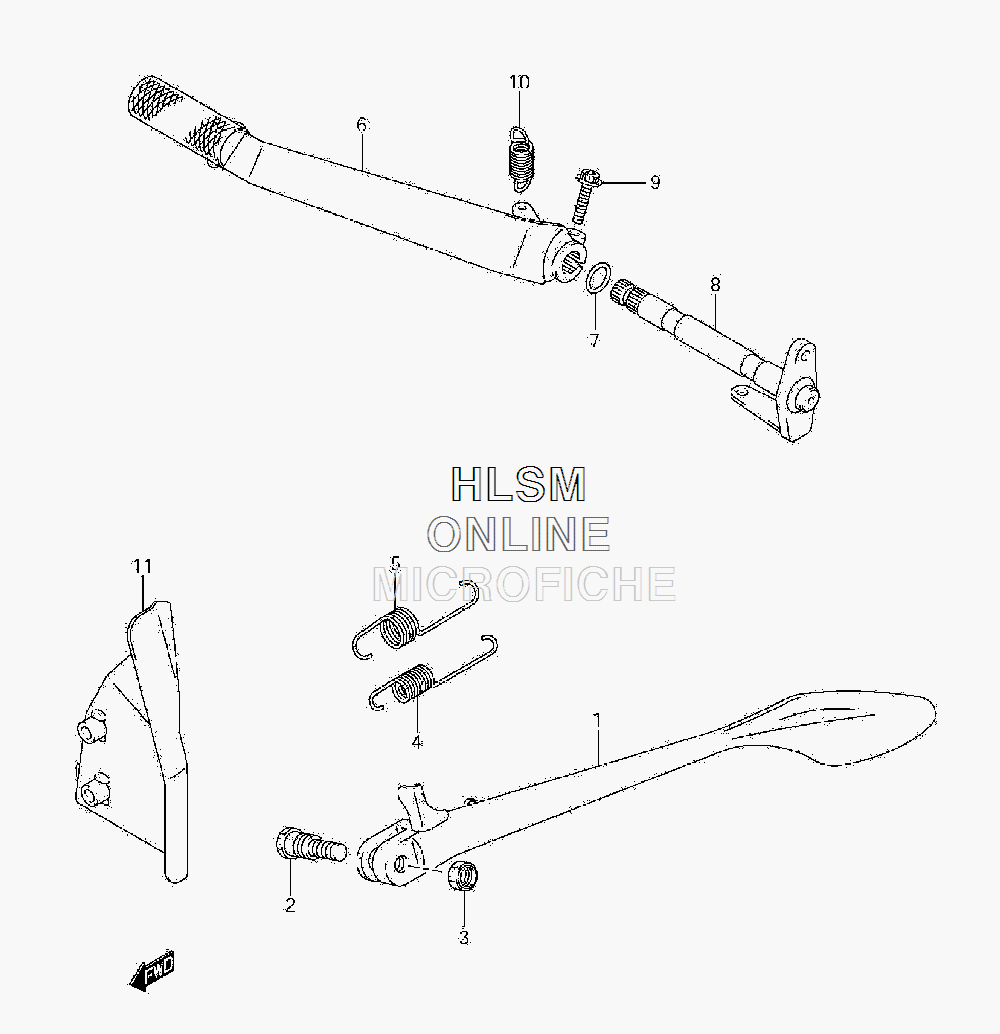

BRAKE PEDAL W/ STAND для Suzuki VZR1800Z L2 BOULEVARD LTD - 2012 года выпуска`
-
№АртикулНазвание
-
142310-48G00 STAND, PROPSTAND, PROP
-
209111-10058 BOLT (10X37.5)BOLT (10X37.5)
-
342321-03FK0 NUTNUT
-
409443-14069 SPRINGSPRING
-
509443-19012 SPRINGSPRING
-
643110-48G11 PEDAL, BRAKEPEDAL, BRAKE
-
709280-14011 O RING (D:2.5,ID:13.8)O RING (D:2.5,ID:13.8)
-
843120-48G10 ARM, BRAKE RODARM, BRAKE ROD
-
907120-0625A BOLTBOLT
-
1009443-11030 SPRINGSPRING
-
1143570-48G00 GUARD, REAR MASTERGUARD, REAR MASTER
