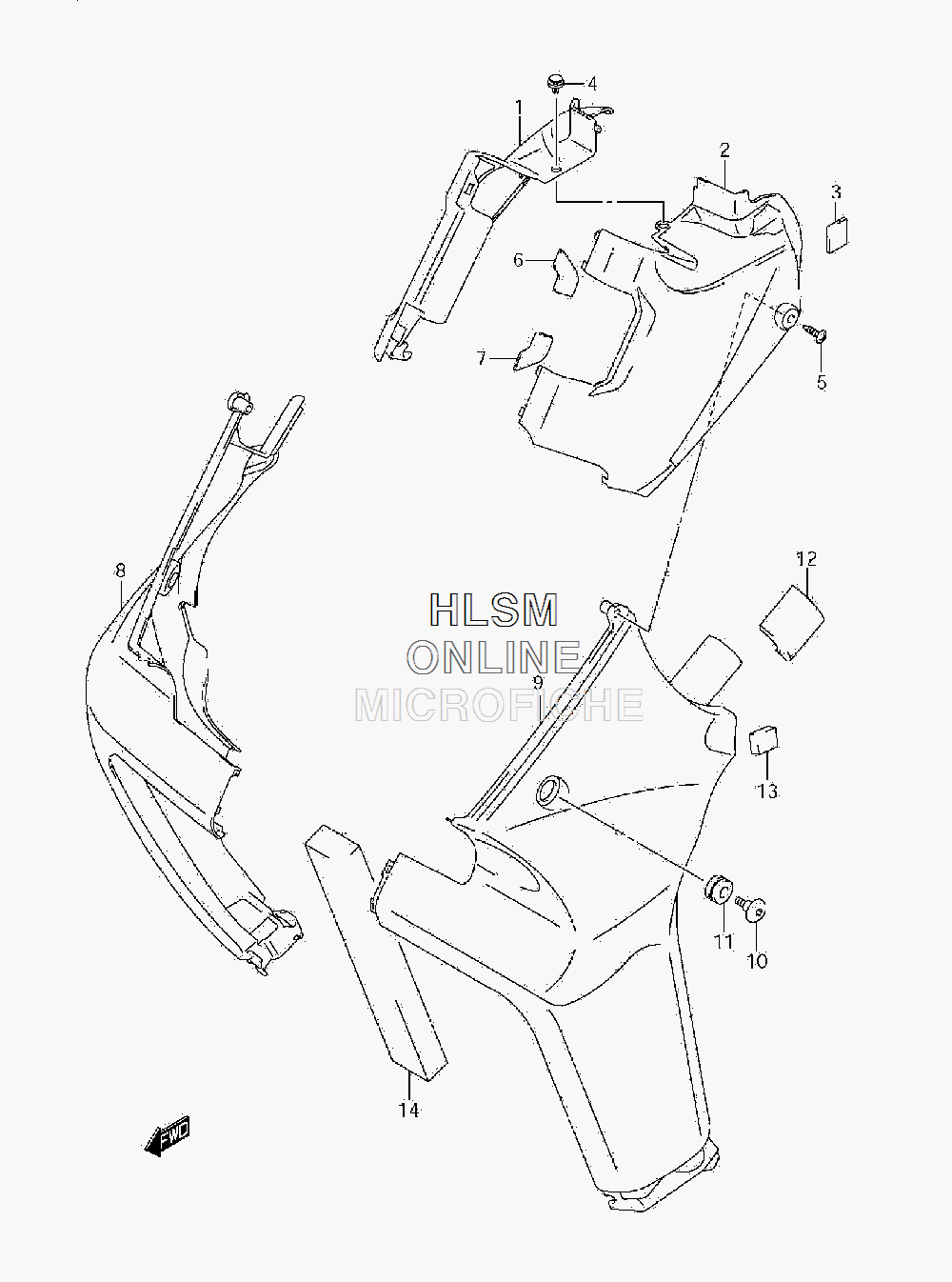

FRAME HEAD COVER для Suzuki VZR1800Z L2 BOULEVARD LTD - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    47350-48G50-YVB COVER, FRAME HEAD RIGHT HAND (YVB - BLACK FOR JBA)
    COVER, FRAME HEAD RIGHT HAND (YVB - BLACK FOR JBA)
  • 1
    47350-48G50-YSF COVER, FRAME HEAD RIGHT HAND (YSF - BLUE FOR GLR)
    COVER, FRAME HEAD RIGHT HAND (YSF - BLUE FOR GLR)
  • 2
    47361-48G50-YVB COVER, FRAME HEAD LEFT HAND (YVB - BLACK FOR JBA)
    COVER, FRAME HEAD LEFT HAND (YVB - BLACK FOR JBA)
  • 2
    47361-48G50-YSF COVER, FRAME HEAD LEFT HAND (YSF - BLUE FOR GLR)
    COVER, FRAME HEAD LEFT HAND (YSF - BLUE FOR GLR)
  • 3
    17798-39G00 CUSHION
    CUSHION
  • 4
    09409-06328 CLIP
    CLIP
  • 5
    03541-0516A SCREW
    SCREW
  • 6
    47352-48G00 TAPE, UPPER
    TAPE, UPPER
  • 7
    47353-48G01 TAPE, LOWER
    TAPE, LOWER
  • 8
    47551-48G50-YVB COVER, FRAME BODY RIGHT HAND (YVB - BLACK FOR JBA)
    COVER, FRAME BODY RIGHT HAND (YVB - BLACK FOR JBA)
  • 8
    47551-48G50-YSF COVER, FRAME BODY RIGHT HAND (YSF - BLUE FOR GLR)
    COVER, FRAME BODY RIGHT HAND (YSF - BLUE FOR GLR)
  • 9
    47561-48G50-YVB COVER, FRAME BODY LEFT HAND (YVB - BLACK FOR JBA)
    COVER, FRAME BODY LEFT HAND (YVB - BLACK FOR JBA)
  • 9
    47561-48G50-YSF COVER, FRAME BODY LEFT HAND (YSF - BLUE FOR GLR)
    COVER, FRAME BODY LEFT HAND (YSF - BLUE FOR GLR)
  • 10
    09139-06126 SCREW (6X20)
    SCREW (6X20)
  • 11
    09320-09016 CUSHION
    CUSHION
  • 12
    63191-25C00 CUSHION, UPPER
    CUSHION, UPPER
  • 13
    17798-39G00 CUSHION, CENTER
    CUSHION, CENTER
  • 14
    47552-48G00 CUSHION, LOWER RIGHT HAND
    CUSHION, LOWER RIGHT HAND
