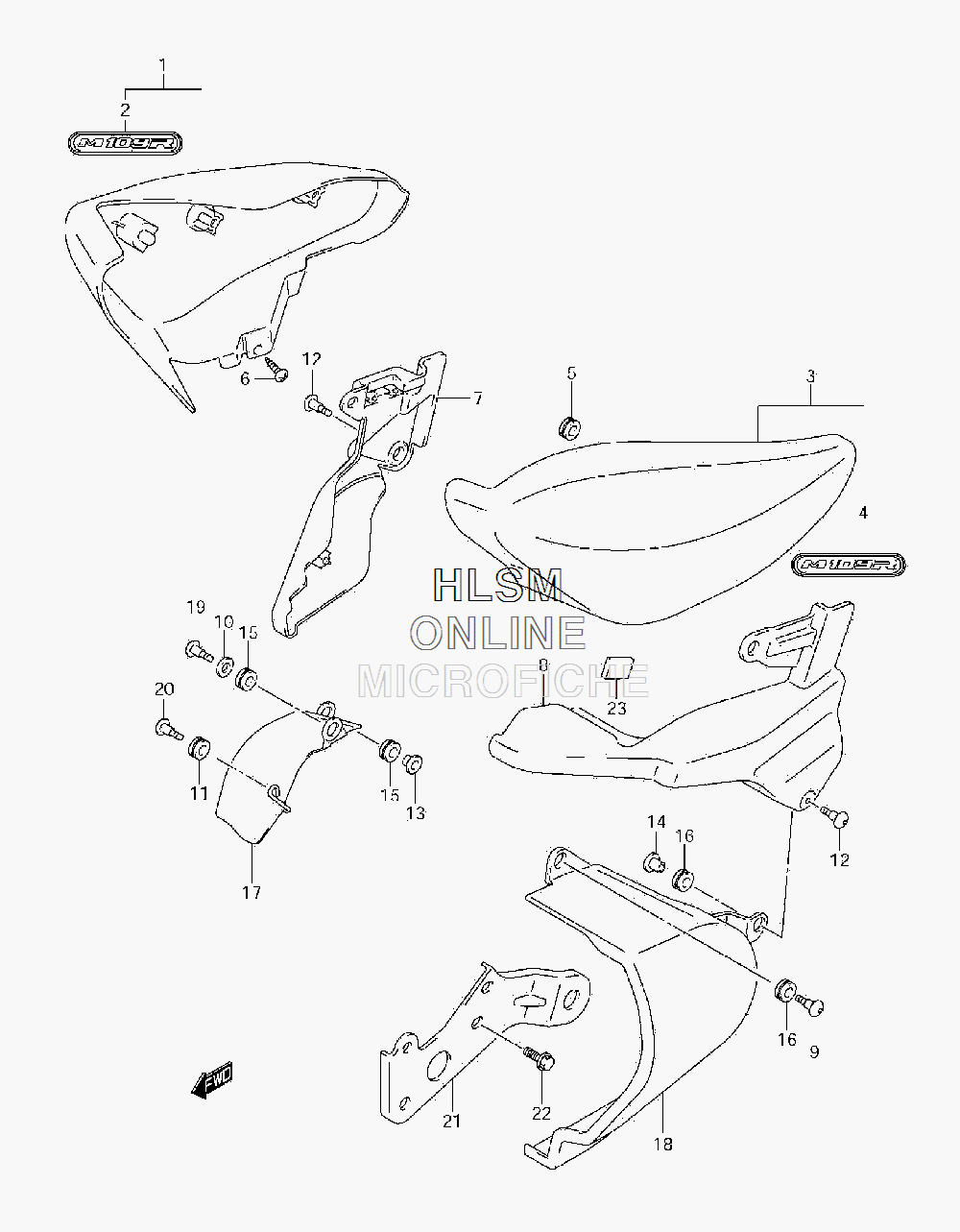

SIDE COVER для Suzuki VZR1800Z L2 BOULEVARD LTD - 2012 года выпуска

№

Артикул

Название
1

47110-48G50-YSF COVER, FRAME RIGHT HAND (INCL. 2) (YSF - BLUE FOR GLR)

COVER, FRAME RIGHT HAND (INCL. 2) (YSF - BLUE FOR GLR)
1

47110-48G50-YVB COVER, FRAME RIGHT HAND (INCL. 2) (YVB - BLACK FOR JBA)

COVER, FRAME RIGHT HAND (INCL. 2) (YVB - BLACK FOR JBA)
2

68131-48G00 EMBLEM ''M109R''

EMBLEM ''M109R''
3

47210-48G50-YSF COVER, FRAME LEFT HAND (INCL. 4) (YSF - BLUE FOR GLR)

COVER, FRAME LEFT HAND (INCL. 4) (YSF - BLUE FOR GLR)
3

47210-48G50-YVB COVER, FRAME LEFT HAND (INCL. 4) (YVB - BLACK FOR JBA)

COVER, FRAME LEFT HAND (INCL. 4) (YVB - BLACK FOR JBA)
4

68131-48G00 EMBLEM ''M109R''

EMBLEM ''M109R''
5

09320-08018 CUSHION

CUSHION
6

03541-0516A SCREW

SCREW
7

47121-48G00 COVER, SIDE LOWER RIGHT HAND

COVER, SIDE LOWER RIGHT HAND
8

47221-48G00 COVER, SIDE LOWER LEFT HAND

COVER, SIDE LOWER LEFT HAND
9

09139-06126 SCREW (6X20) LEFT HAND

SCREW (6X20) LEFT HAND
10

09160-10123 WASHER (10.5X20X2.3) RIGHT HAND

WASHER (10.5X20X2.3) RIGHT HAND
11

09320-09501 CUSHION RIGHT HAND

CUSHION RIGHT HAND
12

09139-06029 SCREW (6X25)

SCREW (6X25)
13

09180-06319 SPACER (6.5X10X11.6) RIGHT HAND

SPACER (6.5X10X11.6) RIGHT HAND
14

09169-06075 WASHER LEFT HAND

WASHER LEFT HAND
15

09320-08021 CUSHION RIGHT

CUSHION RIGHT
16

09320-08070 CUSHION LEFT HAND

CUSHION LEFT HAND
17

47130-48G00 COVER, LOWER RIGHT HAND

COVER, LOWER RIGHT HAND
18

47231-48GB0 COVER, LOWER LEFT HAND

COVER, LOWER LEFT HAND
19

09139-06126 SCREW (6X20) RIGHT HAND

SCREW (6X20) RIGHT HAND
20

09139-06126 SCREW (6X20) RIGHT HAND

SCREW (6X20) RIGHT HAND
21

47250-48G00 BRACKET, LOWER COVER LEFT HAND

BRACKET, LOWER COVER LEFT HAND
22

01550-0612A BOLT

BOLT
23

47161-19C00 CUSHION, SIDE COVER LEFT HAND

CUSHION, SIDE COVER LEFT HAND
