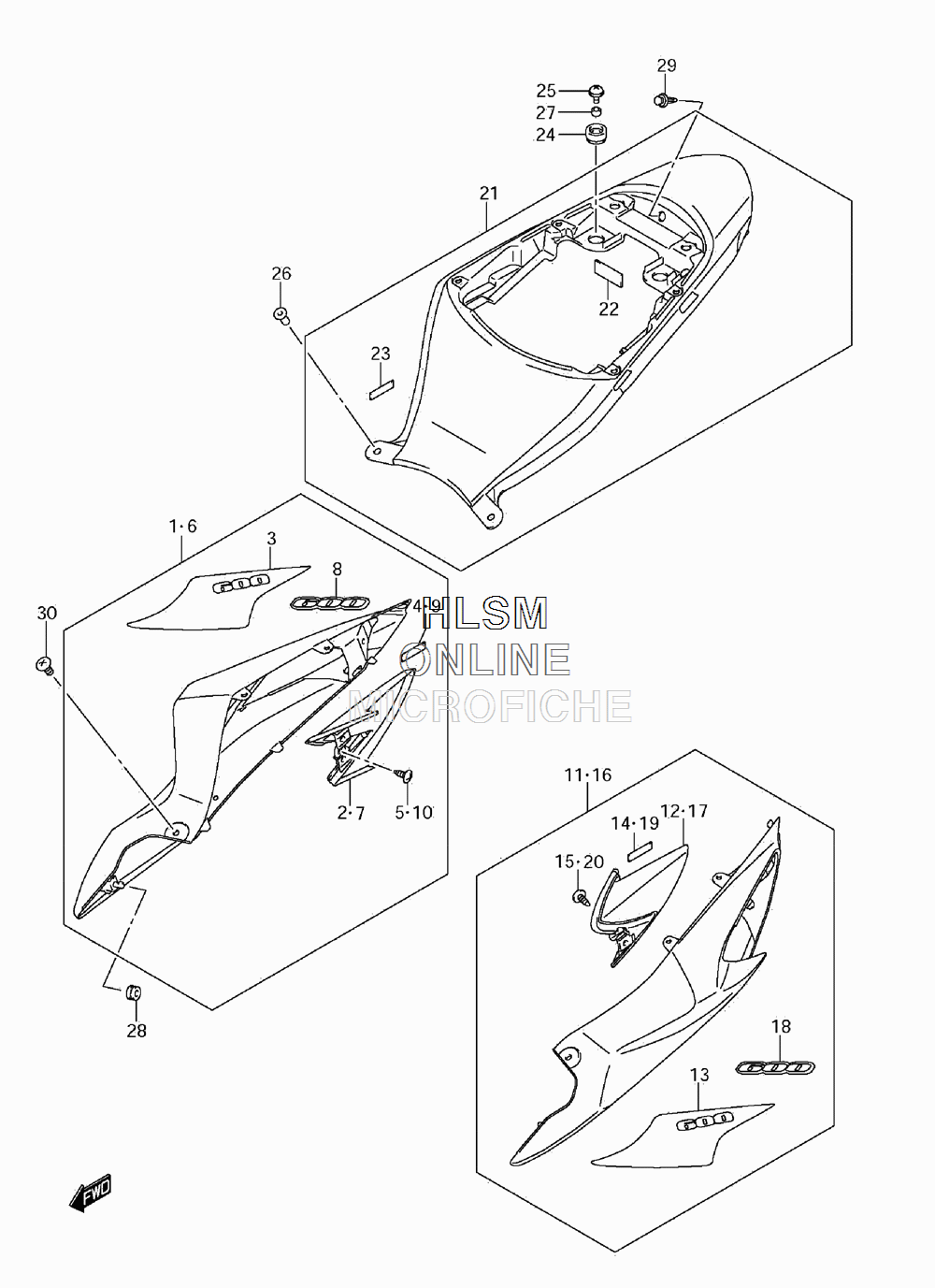

SIDE COVER для Suzuki GSX-R 600 L1 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    47100-14J00-YBD COVER, FRAME RIGHT HAND (INCL. 2 - 5, 8) (WHITE) (YBD FOR GLR)
    COVER, FRAME RIGHT HAND (INCL. 2 - 5, 8) (WHITE) (YBD FOR GLR)
  • 2
    47611-14J00 COVER, FRAME (FOR GLR)
    COVER, FRAME (FOR GLR)
  • 3
    68135-14J00-JSB TAPE, RIGHT HAND (JSB) (FOR GLR)
    TAPE, RIGHT HAND (JSB) (FOR GLR)
  • 4
    94443-06G00 TAPE (FOR GLR)
    TAPE (FOR GLR)
  • 5
    03541-0512A SCREW (FOR GLR)
    SCREW (FOR GLR)
  • 6
    47100-14J10-YPA COVER, FRAME RIGHT HAND (INCL. 7 - 10) (WHITE) (YPA FOR JDT)
    COVER, FRAME RIGHT HAND (INCL. 7 - 10) (WHITE) (YPA FOR JDT)
  • 6
    47100-14J10-YVB COVER, FRAME RIGHT HAND (INCL. 7 - 10) (BLACK) (YVB FOR YVB)
    COVER, FRAME RIGHT HAND (INCL. 7 - 10) (BLACK) (YVB FOR YVB)
  • 7
    47611-14J00 COVER, FRAME (FOR YVB, JDT)
    COVER, FRAME (FOR YVB, JDT)
  • 8
    68131-14J00-JSA EMBLEM ''600'' (FOR YPA)
    EMBLEM ''600'' (FOR YPA)
  • 8
    68131-14J00-GTT EMBLEM ''600'' (GRAY/BLACK) (FOR YVB)
    EMBLEM ''600'' (GRAY/BLACK) (FOR YVB)
  • 9
    94443-06G00 TAPE (FOR YVB, JDT)
    TAPE (FOR YVB, JDT)
  • 10
    03541-0512A SCREW (FOR YVB, JDT)
    SCREW (FOR YVB, JDT)
  • 11
    47200-14J00-YBD COVER, FRAME LEFT HAND (INCL. 12 - 15, 18) (WHITE) (YBD FOR GLR)
    COVER, FRAME LEFT HAND (INCL. 12 - 15, 18) (WHITE) (YBD FOR GLR)
  • 12
    47621-14J00 COVER, FRAME (FOR GLR)
    COVER, FRAME (FOR GLR)
  • 13
    68145-14J00-JSB TAPE, LEFT HAND (FOR GLR)
    TAPE, LEFT HAND (FOR GLR)
  • 14
    94443-06G00 TAPE (FOR GLR)
    TAPE (FOR GLR)
  • 15
    03541-0512A SCREW (FOR GLR)
    SCREW (FOR GLR)
  • 16
    47200-14J10-YPA COVER, FRAME LEFT HAND (INCL. 17 - 20) (WHITE) (YPA FOR JDT)
    COVER, FRAME LEFT HAND (INCL. 17 - 20) (WHITE) (YPA FOR JDT)
  • 16
    47200-14J10-YVB COVER, FRAME LEFT HAND (INCL. 17 - 20) (BLACK) (YVB FOR YVB)
    COVER, FRAME LEFT HAND (INCL. 17 - 20) (BLACK) (YVB FOR YVB)
  • 17
    47621-14J00 COVER, FRAME (FOR YVB, JDT)
    COVER, FRAME (FOR YVB, JDT)
  • 18
    68131-14J00-JSA EMBLEM ''600'' (FOR YPA)
    EMBLEM ''600'' (FOR YPA)
  • 18
    68131-14J00-GTT EMBLEM ''600'' (GRAY/BLACK) (FOR YVB)
    EMBLEM ''600'' (GRAY/BLACK) (FOR YVB)
  • 19
    94443-06G00 TAPE (FOR YVB, JDT)
    TAPE (FOR YVB, JDT)
  • 20
    03541-0512A SCREW (FOR YVB, JDT)
    SCREW (FOR YVB, JDT)
  • 21
    47300-14J00-YPA COVER, FRAME CENTER (INCL. 22 - 23) (WHITE) (YPA FOR JDT)
    COVER, FRAME CENTER (INCL. 22 - 23) (WHITE) (YPA FOR JDT)
  • 21
    47300-14J00-YSF COVER, FRAME CENTER (INCL. 22 - 23) (BLUE) (YSF FOR GLR)
    COVER, FRAME CENTER (INCL. 22 - 23) (BLUE) (YSF FOR GLR)
  • 21
    47300-14J00-YVB COVER, FRAME CENTER (INCL. 22 - 23) (BLACK) (YVB FOR YVB)
    COVER, FRAME CENTER (INCL. 22 - 23) (BLACK) (YVB FOR YVB)
  • 22
    48128-14FA0 CUSHION
    CUSHION
  • 23
    94443-06G00 TAPE
    TAPE
  • 24
    47312-37H00 CUSHION, CENTER
    CUSHION, CENTER
  • 25
    09136-06056 SCREW (6X16)
    SCREW (6X16)
  • 26
    09159-05019 NUT
    NUT
  • 27
    09180-06283 SPACER (6.5X10X7)
    SPACER (6.5X10X7)
  • 28
    09320-06504 CUSHION
    CUSHION
  • 29
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 30
    02142-1520B SCREW
    SCREW
