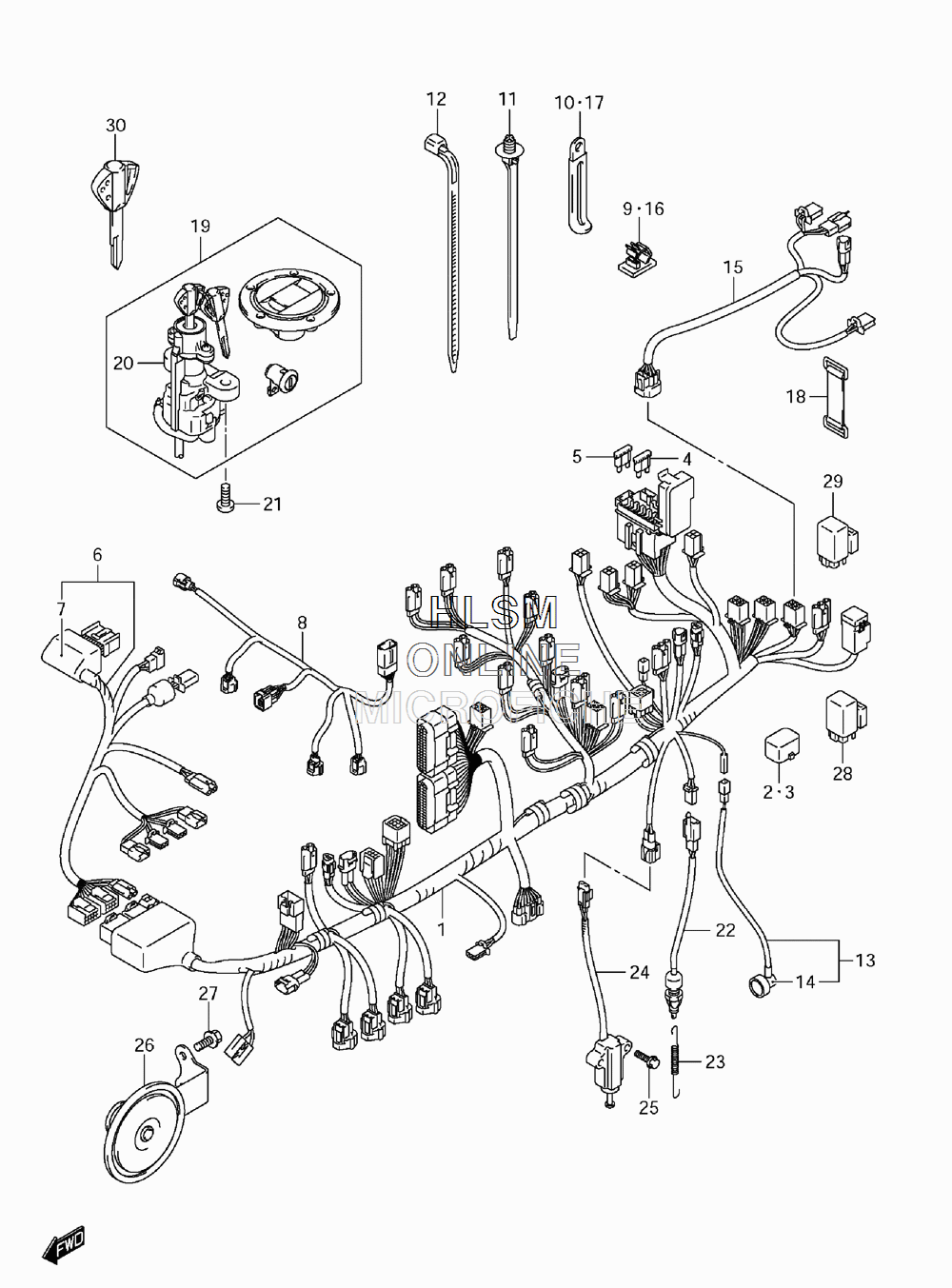

ELECTRICAL - WIRING HARNESS (CANADA) для Suzuki GSX-R 600 L1 - 2011 года выпуска`
-
№АртикулНазвание
-
136610-14J30 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
236654-06J00 CAP, TSCAP, TS
-
336654-06J10 CAP, CO ADJCAP, CO ADJ
-
409481-10501 FUSE (10A)FUSE (10A)
-
509481-15501 FUSE (15A)FUSE (15A)
-
636620-14J00 HARNESS, WIRING NO.2 (INC 7)HARNESS, WIRING NO.2 (INC 7)
-
736618-47H00 COVER, CONNECTORCOVER, CONNECTOR
-
836630-14J00 HARNESS, WIRING NO.3HARNESS, WIRING NO.3
-
909407-11401 CLAMP (L:95)CLAMP (L:95)
-
1009407-14407 CLAMP (L:145)CLAMP (L:145)
-
1109407-17403 CLAMP (L:154)CLAMP (L:154)
-
1209407-14403 CLAMP (L:125)CLAMP (L:125)
-
1336851-14J00 WIRE, OIL PRESSURE LEAD (INC 14)WIRE, OIL PRESSURE LEAD (INC 14)
-
1436618-43410 CAP, OIL PRESSURE SWITCHCAP, OIL PRESSURE SWITCH
-
1536859-14J00 WIRE, REAR COMBINATION LEADWIRE, REAR COMBINATION LEAD
-
1609403-07315 CLAMPCLAMP
-
1709404-06429 CLAMP (L:45)CLAMP (L:45)
-
1809462-00033 BANDBAND
-
1937000-17840 LOCK SET (INC 20)LOCK SET (INC 20)
-
2037100-41G11 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
2109139-08016 BOLT (8X20)BOLT (8X20)
-
2237740-14J00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2309443-06087 SPRINGSPRING
-
2437840-11X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2501550-0616A BOLTBOLT
-
2638500-14J00 HORN ASSYHORN ASSY
-
2701550-0616B BOLTBOLT
-
2838740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2938740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
3037146-41G00 KEY, BLANK (OPT)KEY, BLANK (OPT)
