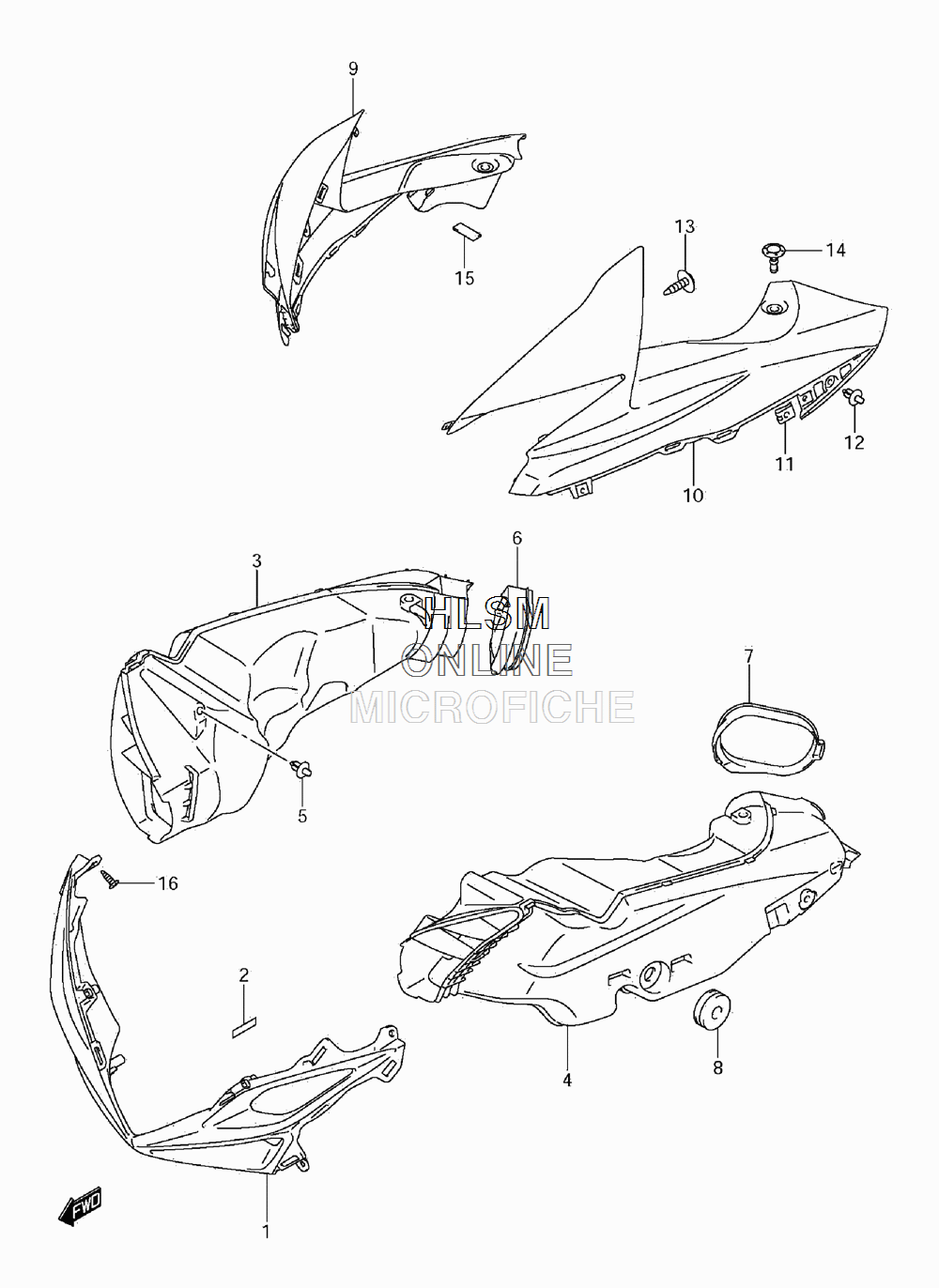

AIR INTAKE для Suzuki GSX-R 600 L1 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    94671-14J00-Y4P COVER, INTAKE FRONT (GRAY) (FOR YVB, JDT)
    COVER, INTAKE FRONT (GRAY) (FOR YVB, JDT)
  • 1
    94671-14J00-019 COVER, INTAKE FRONT (BLACK) (FOR GLR)
    COVER, INTAKE FRONT (BLACK) (FOR GLR)
  • 2
    94443-06G00 TAPE
    TAPE
  • 3
    94420-14J00 PIPE, INTAKE RIGHT HAND
    PIPE, INTAKE RIGHT HAND
  • 4
    94430-14J00 PIPE, INTAKE LEFT HAND
    PIPE, INTAKE LEFT HAND
  • 5
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 6
    94423-14J00 MOLDING RIGHT HAND
    MOLDING RIGHT HAND
  • 7
    94433-14J00 MOLDING LEFT HAND
    MOLDING LEFT HAND
  • 8
    09320-08028 CUSHION
    CUSHION
  • 9
    94672-14J00-YPA COVER, INTAKE SIDE RIGHT HAND (WHITE) (FOR JDT)
    COVER, INTAKE SIDE RIGHT HAND (WHITE) (FOR JDT)
  • 9
    94672-14J00-YSF COVER, INTAKE SIDE RIGHT HAND (BLUE) (FOR GLR)
    COVER, INTAKE SIDE RIGHT HAND (BLUE) (FOR GLR)
  • 9
    94672-14J00-YVB COVER, INTAKE SIDE RIGHT HAND (BLACK) (FOR YVB)
    COVER, INTAKE SIDE RIGHT HAND (BLACK) (FOR YVB)
  • 10
    94682-14J00-YPA COVER, INTAKE SIDE LEFT HAND (WHITE) (FOR JDT)
    COVER, INTAKE SIDE LEFT HAND (WHITE) (FOR JDT)
  • 10
    94682-14J00-YSF COVER, INTAKE SIDE LEFT HAND (BLUE) (FOR GLR)
    COVER, INTAKE SIDE LEFT HAND (BLUE) (FOR GLR)
  • 10
    94682-14J00-YVB COVER, INTAKE SIDE LEFT HAND (BLACK) (FOR YVB)
    COVER, INTAKE SIDE LEFT HAND (BLACK) (FOR YVB)
  • 11
    09148-05052 NUT
    NUT
  • 12
    09409-06314-5PK CLIP (BLACK)
    CLIP (BLACK)
  • 13
    09132-05050 SCREW (5X12)
    SCREW (5X12)
  • 14
    94479-35F00 CLIP, REAR
    CLIP, REAR
  • 15
    33652-29F00 CUSHION, INNER COVER
    CUSHION, INNER COVER
  • 16
    03541-0512A SCREW
    SCREW
