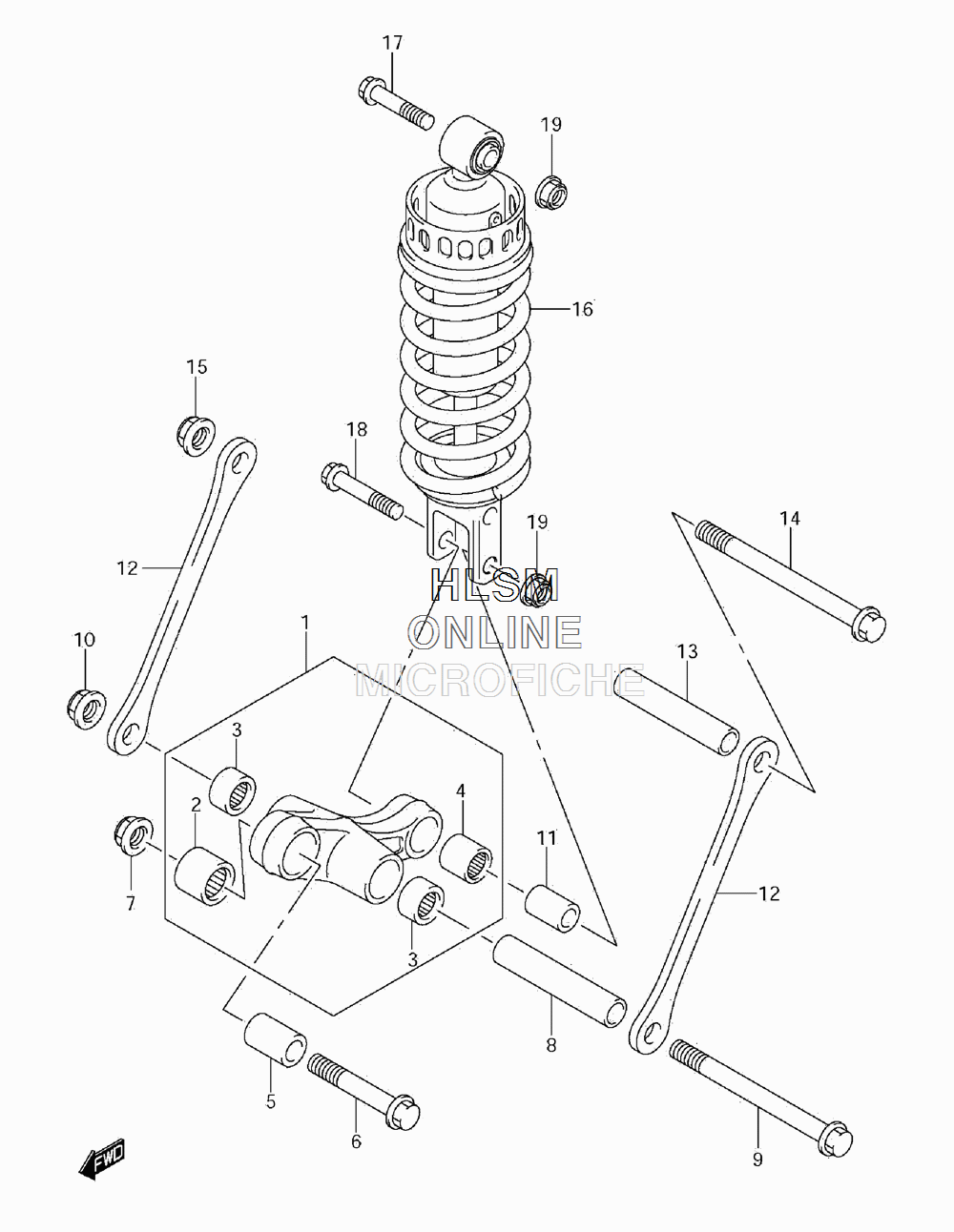

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX-1250 FA L1 (CANADA) - 2011 года выпуска`
-
№АртикулНазвание
-
162600-32860 LEVER SET, REAR CUSHION (INCL. 2 - 4)LEVER SET, REAR CUSHION (INCL. 2 - 4)
-
209263-20064 BEARING (20X27X26)BEARING (20X27X26)
-
309263-17037 BEARING (17X24X25)BEARING (17X24X25)
-
409263-17034 BEARING (17X24X26)BEARING (17X24X26)
-
562684-01D00 SPACER, FRONT (12X20X30)SPACER, FRONT (12X20X30)
-
662668-42A02 BOLT, FRONT (12X62)BOLT, FRONT (12X62)
-
709159-12056 NUTNUT
-
862626-33D00 SPACER, CENTERSPACER, CENTER
-
962621-33D10 BOLT, CENTERBOLT, CENTER
-
1009159-12056 NUTNUT
-
1162684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1262641-32F00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1362626-33D00 SPACER, RODSPACER, ROD
-
1462621-33D00 BOLT, RODBOLT, ROD
-
1509159-12056 NUTNUT
-
1662100-07J40 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1709103-10213 BOLT (10X52)BOLT (10X52)
-
1809103-10143 BOLT (10X55)BOLT (10X55)
-
1909159-10115 NUTNUT
