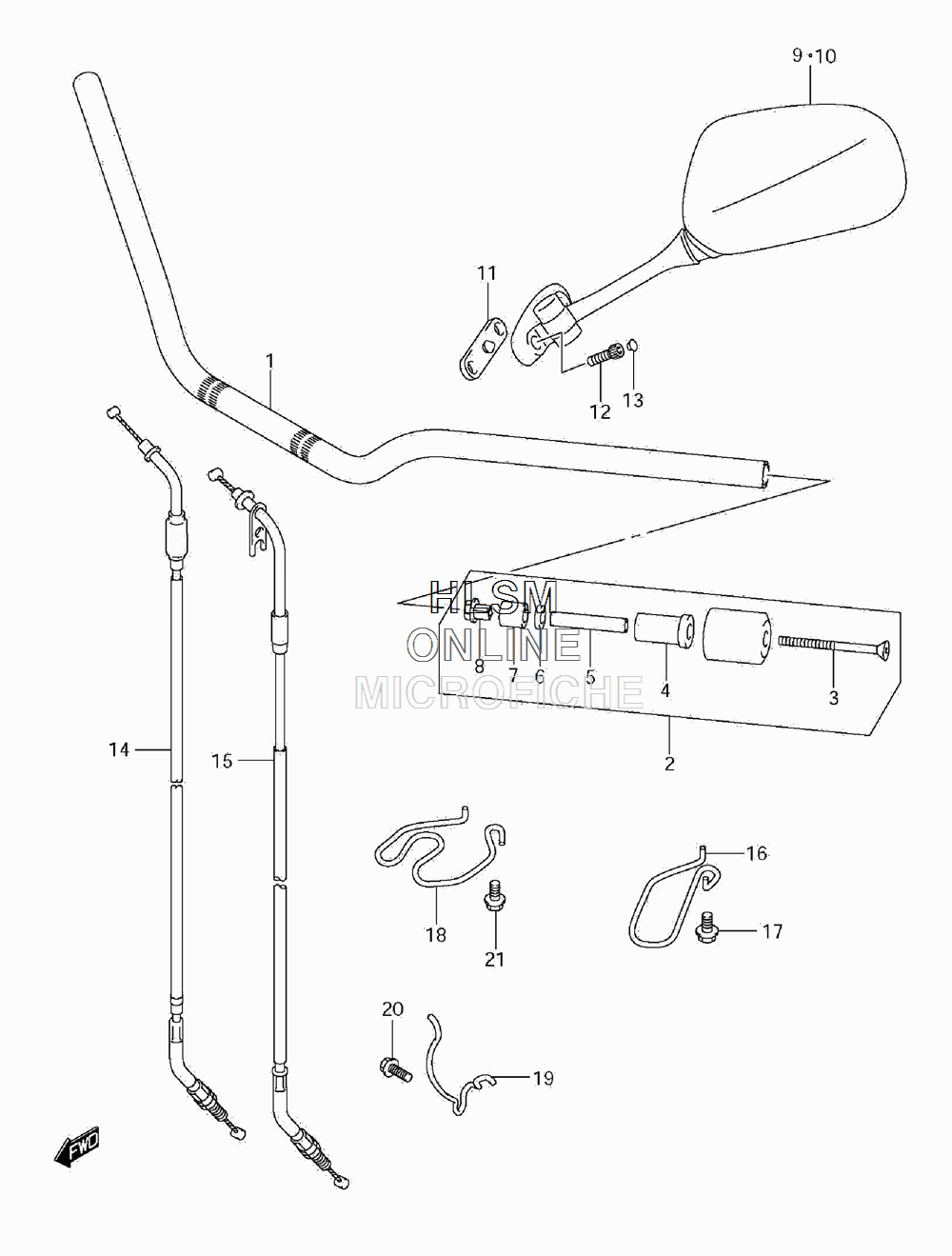

HANDLEBAR для Suzuki GSX-1250 FA L1 (CANADA) - 2011 года выпуска
-
№АртикулНазвание
-
156111-49G00 HANDLEBARHANDLEBAR
-
256200-38822 BALANCER SET, HANDLEBAR (INCL. 3 - 8)BALANCER SET, HANDLEBAR (INCL. 3 - 8)
-
309127-06018 SCREW (6X110)SCREW (6X110)
-
456272-19D00 EXPANDER, OUTEREXPANDER, OUTER
-
556276-17D00 SPACERSPACER
-
609160-06131 WASHER (6.5X16X4)WASHER (6.5X16X4)
-
756272-10G00 EXPANDER, INNEREXPANDER, INNER
-
856273-10G10 NUTNUT
-
956500-18H00 MIRROR, REAR VIEW RIGHT HANDMIRROR, REAR VIEW RIGHT HAND
-
1056600-18H00 MIRROR, REAR VIEW LEFT HANDMIRROR, REAR VIEW LEFT HAND
-
1194576-24F00 CUSHIONCUSHION
-
1207130-0616B BOLTBOLT
-
1309250-05009 CAP (OD:10)CAP (OD:10)
-
1458300-18H60 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1558300-18H30 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1658631-38G00 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1709125-05042 SCREW (5X10)SCREW (5X10)
-
1858621-18H00 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1958622-38G00 GUIDE, CABLEGUIDE, CABLE
-
2001550-0620A BOLTBOLT
-
2101550-0612A BOLTBOLT
