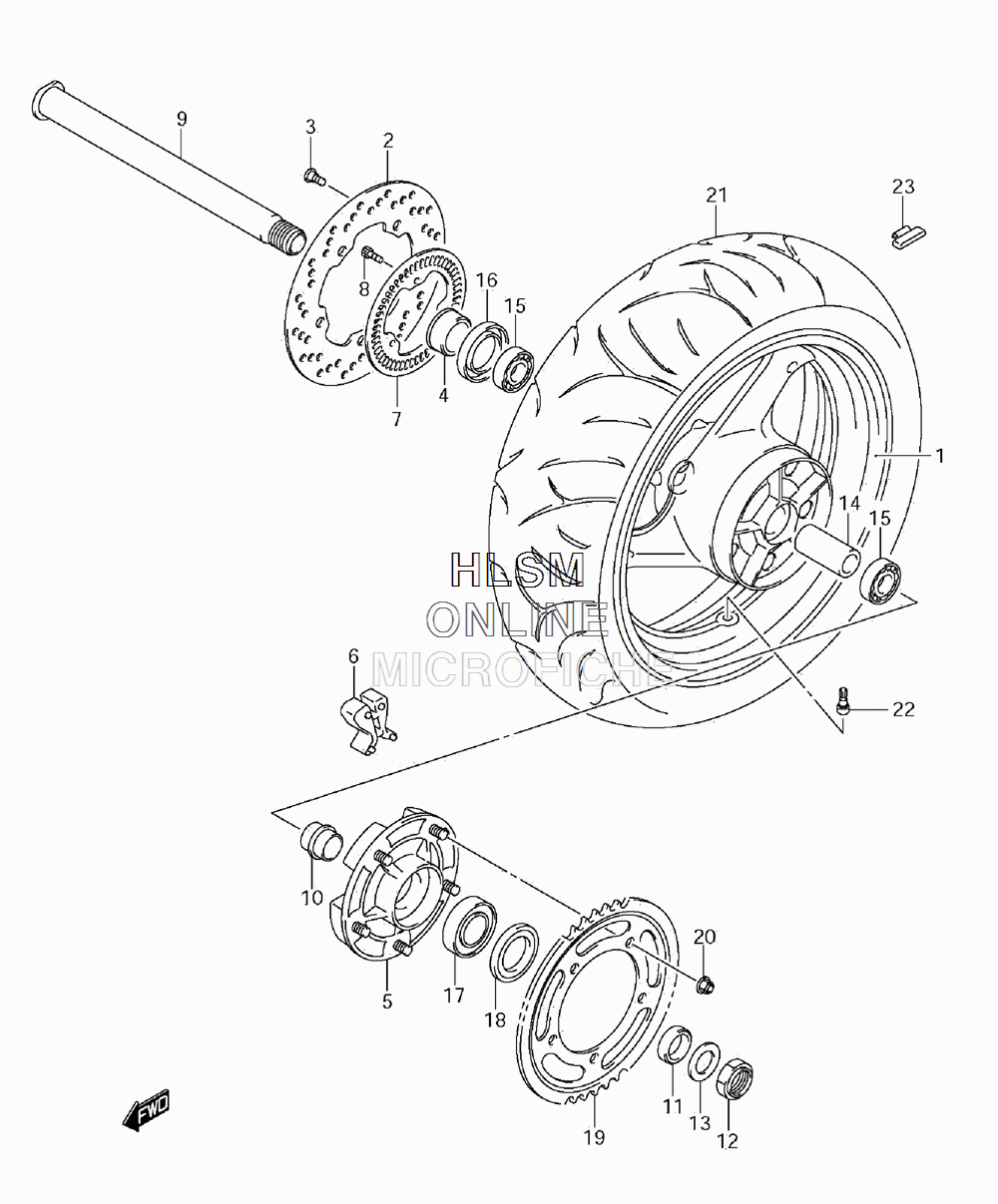

WHEEL - REAR для Suzuki GSX-1250 FA L1 (CANADA) - 2011 года выпуска

№

Артикул

Название
1

64111-49G10-019 WHEEL, REAR (17M/CXMT5.50) (BLACK)

WHEEL, REAR (17M/CXMT5.50) (BLACK)
2

69211-38G00 DISC, REAR BRAKE

DISC, REAR BRAKE
3

09106-08160 BOLT (8X21)

BOLT (8X21)
4

64741-49G00 SPACER, REAR AXLE RIGHT HAND

SPACER, REAR AXLE RIGHT HAND
5

64610-44G00 DRUM, SPROCKET MOUNTING

DRUM, SPROCKET MOUNTING
6

64651-44G00 ABSORBER, SHOCK REAR HUB

ABSORBER, SHOCK REAR HUB
7

54162-27G00 RING, SPEED SENSOR RR

RING, SPEED SENSOR RR
8

07130-0512A BOLT (8X21)

BOLT (8X21)
9

64711-49G00 AXLE, REAR

AXLE, REAR
10

64733-35F00 RETAINER, REAR SPROCKET DRUM

RETAINER, REAR SPROCKET DRUM
11

64751-49G00 SPACER, REAR AXLE LEFT HAND

SPACER, REAR AXLE LEFT HAND
12

09159-25003 NUT

NUT
13

09160-25070 WASHER (25.2X42X3.2)

WASHER (25.2X42X3.2)
14

64731-49G00 SPACER

SPACER
15

09262-28043 BEARING (28X52X12)

BEARING (28X52X12)
16

09284-37001 OIL SEAL (37X52X8)

OIL SEAL (37X52X8)
17

09262-32007 BEARING (32X65X17)

BEARING (32X65X17)
18

09285-39001 OIL SEAL (39X65X7)

OIL SEAL (39X65X7)
19

64511-40F50 SPROCKET, REAR

SPROCKET, REAR
20

08319-3110A NUT

NUT
21

65110-18H00 TIRE, REAR (180/55 ZR17M/C (73W))

TIRE, REAR (180/55 ZR17M/C (73W))
22

43130-24A00 VALVE ASSY, WHEEL RIM (TR412)

VALVE ASSY, WHEEL RIM (TR412)
23

55411-22H00 BALANCER, WHEEL NO.1

BALANCER, WHEEL NO.1
23

55412-22H00 BALANCER, WHEEL NO.2

BALANCER, WHEEL NO.2
23

55413-22H00 BALANCER, WHEEL NO.3

BALANCER, WHEEL NO.3
