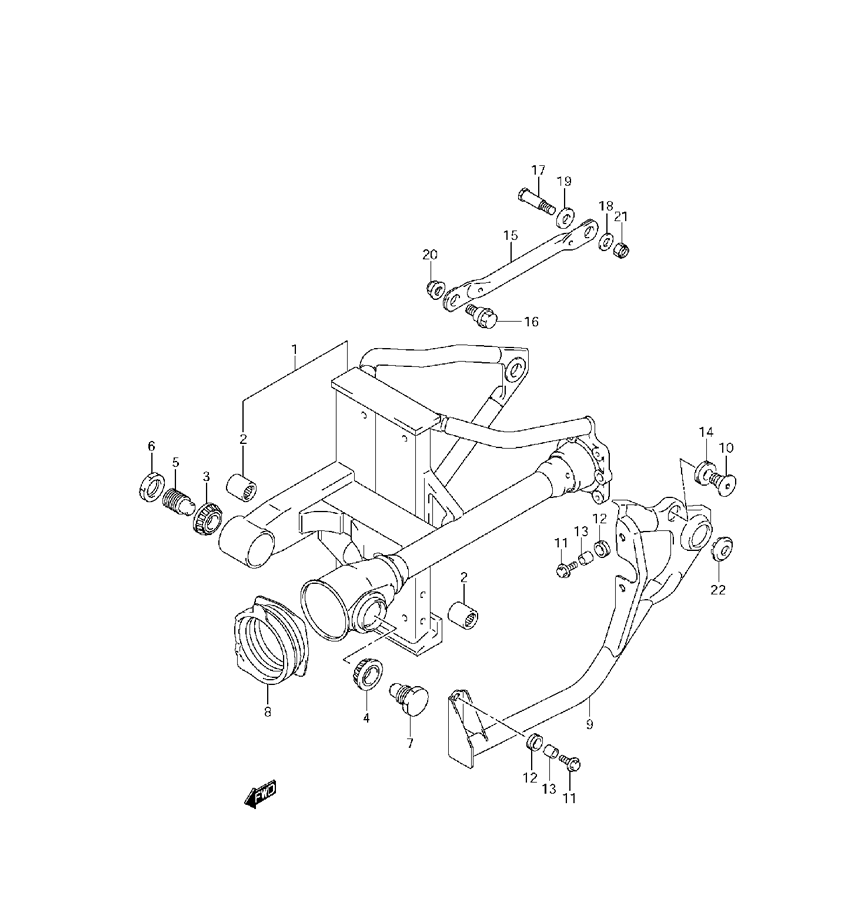

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki VZ800T K9 - 2009 года выпуска`
-
№АртикулНазвание
-
161101-41872-019 SWINGING ARM SET, REAR (BLACK) (INCLUDES ITEM(S) 2)SWINGING ARM SET, REAR (BLACK) (INCLUDES ITEM(S) 2)
-
209263-17037 BEARING, ROD (17X24X25)BEARING, ROD (17X24X25)
-
309265-17013 BEARING, PIVOT RIGHT HAND (17X40X13.25,WITHBEARING, PIVOT RIGHT HAND (17X40X13.25,WITH
-
409265-17012 BEARING, PIVOT LEFT HAND (17X40X13.25)BEARING, PIVOT LEFT HAND (17X40X13.25)
-
561213-24A00 BOLT, PIVOT RIGHT HANDBOLT, PIVOT RIGHT HAND
-
609140-24007 NUT, PIVOT RIGHT HANDNUT, PIVOT RIGHT HAND
-
761213-10F00 BOLT, PIVOT LEFT HANDBOLT, PIVOT LEFT HAND
-
861372-41F00 BOOT, SHAFTBOOT, SHAFT
-
961120-41F10-019 COVER, RR SWGARM LEFT HANDCOVER, RR SWGARM LEFT HAND
-
1061127-41F10 BOLT, RR SWGARM COVER, RRBOLT, RR SWGARM COVER, RR
-
1109116-06152 BOLT, RR SWGARM COVERBOLT, RR SWGARM COVER
-
1209320-10056 CUSHION, COVERCUSHION, COVER
-
1309180-06286 SPACER, COVERSPACER, COVER
-
1409320-22003 CUSHION, COVER RRCUSHION, COVER RR
-
1564310-41F00 TORQUE LINK, REARTORQUE LINK, REAR
-
1609111-10062 BOLT, FRONTBOLT, FRONT
-
1709111-10057 BOLT, REARBOLT, REAR
-
1809160-10142 WASHER,10X20X2.WASHER,10X20X2.
-
1909320-12501 CUSHION, REARCUSHION, REAR
-
2008319-3110B NUT, FRONTNUT, FRONT
-
2108319-2110A NUT, REARNUT, REAR
-
2241899-42F10 CAPCAP
