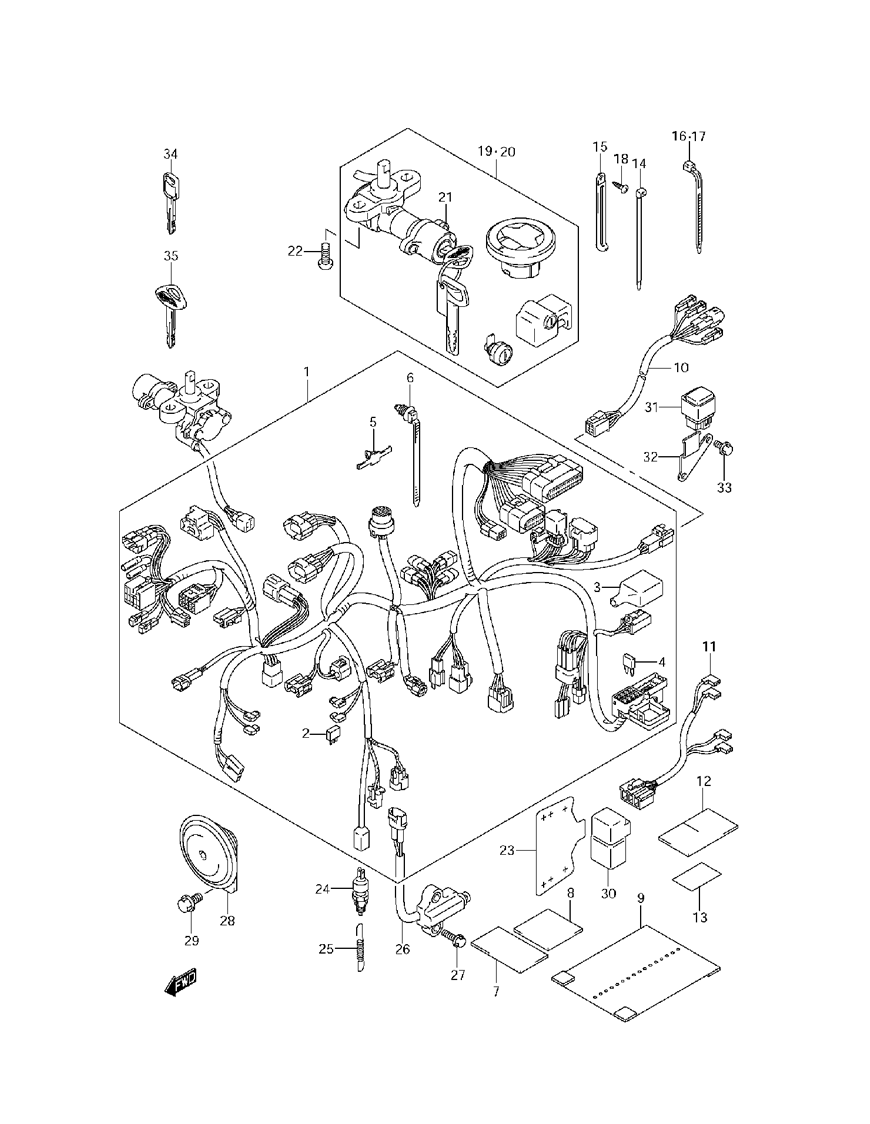

ELECTRICAL - WIRING HARNESS для Suzuki VZ800T K9 - 2009 года выпуска`
-
№АртикулНазвание
-
136610-39GB0 HARNESS, WIRING (US & CANADA) (INCLUDES ITEM(S) 2 - 6)HARNESS, WIRING (US & CANADA) (INCLUDES ITEM(S) 2 - 6)
-
136610-39GC0 HARNESS, WIRING (CALIF. ONLY) (INCLUDES ITEM(S) 2 - 6)HARNESS, WIRING (CALIF. ONLY) (INCLUDES ITEM(S) 2 - 6)
-
236611-38A00 DIODEDIODE
-
336717-41F00 BOOTBOOT
-
409481-10501 FUSE (10A)FUSE (10A)
-
409481-15501 FUSE (15A)FUSE (15A)
-
509407-05410 CLAMPCLAMP
-
609407-17403 CLAMPCLAMP
-
736611-16G00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
836611-41F00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
936618-15D20 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1036858-39G00 WIRE, REAR COMBWIRE, REAR COMB
-
1136854-39G00 WIRE, IGNITION COIL LEAD (CALIF. ONLY)WIRE, IGNITION COIL LEAD (CALIF. ONLY)
-
1236920-33C00 TAPE, WIRING HARNESSTAPE, WIRING HARNESS
-
1394474-17H00 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
1409407-14407 CLAMP (L:145)CLAMP (L:145)
-
1509404-06433 CLAMP (L:80)CLAMP (L:80)
-
1509404-06435 CLAMP (L:135)CLAMP (L:135)
-
1609407-18402 CLAMP (L:165)CLAMP (L:165)
-
1709407-19401 CLAMP (L:190)CLAMP (L:190)
-
1803541-0410B SCREWSCREW
-
1937101-41890 LOCK SET (US & CANADA) (INCLUDES ITEM(S) 21)LOCK SET (US & CANADA) (INCLUDES ITEM(S) 21)
-
2037102-41810 LOCK SET (CALIF. ONLY) (INCLUDES ITEM(S) 21)LOCK SET (CALIF. ONLY) (INCLUDES ITEM(S) 21)
-
2137100-41F70 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
2209139-08016 SCREW, STEERING LOCKSCREW, STEERING LOCK
-
2337187-41F10 PROTECTOR, IGNITION SWITCHPROTECTOR, IGNITION SWITCH
-
2437740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2509443-06073 SPRING, STOP LAMPSPRING, STOP LAMP
-
2637840-41F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
2709103-06279 BOLT (6X20)BOLT (6X20)
-
2838500-41F30 HORN ASSYHORN ASSY
-
2901550-0816B BOLTBOLT
-
3038740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
3138740-24A00 RELAY ASSY, HEAD LAMPRELAY ASSY, HEAD LAMP
-
3238741-39G00 BRACKET, HEAD LAMPBRACKET, HEAD LAMP
-
3301550-0612B BOLT, BRACKETBOLT, BRACKET
-
3437146-41F10 KEY, BLANKKEY, BLANK
-
3537146-41FA0 KEY, BLANK ''BOULEVARD''KEY, BLANK ''BOULEVARD''
