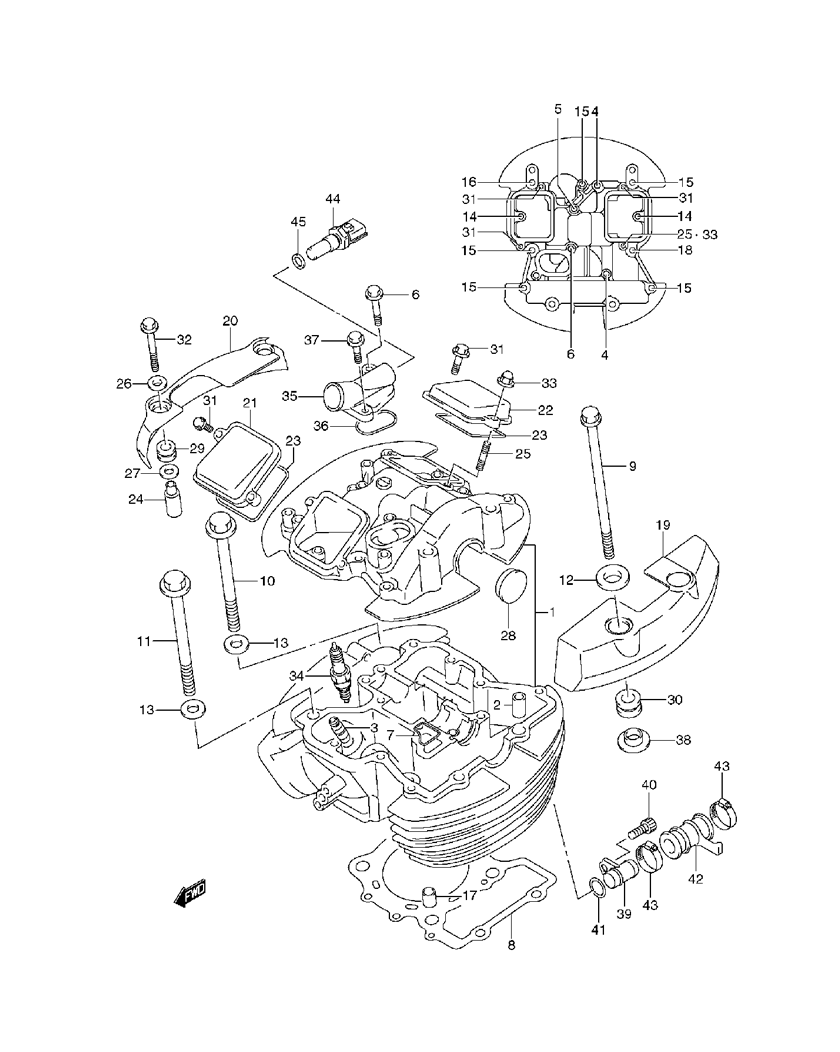

CYLINDER HEAD (FRONT) для Suzuki VZ800T K9 - 2009 года выпуска`
-
№АртикулНазвание
-
111101-39G10 HEAD ASSY, CYLINDER FRONT (INCLUDES ITEM(S) 2) (US & CANADA)HEAD ASSY, CYLINDER FRONT (INCLUDES ITEM(S) 2) (US & CANADA)
-
111101-39G00 HEAD ASSY, CYLINDER FRONT (INCLUDES ITEM(S) 2) (CALIF. ONLY)HEAD ASSY, CYLINDER FRONT (INCLUDES ITEM(S) 2) (CALIF. ONLY)
-
209206-11004 PIN (11X14)PIN (11X14)
-
311115-41F70 GUIDE, VALVE (OS 0.3) (OPT)GUIDE, VALVE (OS 0.3) (OPT)
-
409103-06304 BOLT (6X50)BOLT (6X50)
-
509103-06305 BOLT (6X55)BOLT (6X55)
-
607130-0680B BOLT (6X80)BOLT (6X80)
-
711123-38A00 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
811141-41F00 GASKET, CYLINDER HEAD FRONTGASKET, CYLINDER HEAD FRONT
-
909103-08370 BOLT (L:250)BOLT (L:250)
-
1009103-10133 BOLT (10X155)BOLT (10X155)
-
1109103-10134 BOLT (10X165)BOLT (10X165)
-
1209160-08130 WASHER (8.5X24X1.6)WASHER (8.5X24X1.6)
-
1309160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
-
1401550-0625A BOLT (L:25)BOLT (L:25)
-
1501550-0630A BOLT (L:30)BOLT (L:30)
-
1601550-0640A BOLT (L:40)BOLT (L:40)
-
1704211-13189 KNOCK PINKNOCK PIN
-
1807120-0630B BOLT (L:30)BOLT (L:30)
-
1911171-41FA0 CAP, CYLINDER HEAD COVER FLCAP, CYLINDER HEAD COVER FL
-
2011172-41F00 CAP, CYLINDER HEAD COVER FRCAP, CYLINDER HEAD COVER FR
-
2111175-38A11 CAP, INSPECTION INTAKECAP, INSPECTION INTAKE
-
2211176-38A11 CAP, INSPECTION EXHAUSTCAP, INSPECTION EXHAUST
-
2311177-38A00 GASKET, INSPECTION CAPGASKET, INSPECTION CAP
-
2411179-10F10 SPACER, HEAD COVER CAPSPACER, HEAD COVER CAP
-
2509108-06102 BOLT, INSPECTION CAP STUDBOLT, INSPECTION CAP STUD
-
2609160-06084 WASHER, HEAD COVER CAP UPPERWASHER, HEAD COVER CAP UPPER
-
2709160-09016 WASHER, HEAD COVER CAP LOWERWASHER, HEAD COVER CAP LOWER
-
2809241-30004 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
2909320-09016 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
3009320-13015 CUSHION, HEAD COVER BOLTCUSHION, HEAD COVER BOLT
-
3101547-0620A BOLT, INSPECTION CAPBOLT, INSPECTION CAP
-
3201547-06557 BOLT, HEAD COVER CAPBOLT, HEAD COVER CAP
-
3309159-06093 NUT, INSPECTION CAPNUT, INSPECTION CAP
-
3409482-00354 SPARK PLUG, DPR7EA-9 (NGK) (STD) (US & CANADA)SPARK PLUG, DPR7EA-9 (NGK) (STD) (US & CANADA)
-
3409482-00398 SPARK PLUG, DR7EA (NGK) (STD) (CALIF. ONLY)SPARK PLUG, DR7EA (NGK) (STD) (CALIF. ONLY)
-
3409482-00222 SPARK PLUG, X22ESR-U (ND) (STD) (CALIF. ONLY)SPARK PLUG, X22ESR-U (ND) (STD) (CALIF. ONLY)
-
3409482-00330 SPARK PLUG, DPR9EA-9 (NGK) (OPT) (US & CANADA)SPARK PLUG, DPR9EA-9 (NGK) (OPT) (US & CANADA)
-
3409482-00331 SPARK PLUG, X27EPR-U9 (ND) (OPT) (US & CANADA)SPARK PLUG, X27EPR-U9 (ND) (OPT) (US & CANADA)
-
3409482-00334 SPARK PLUG, DPR8EA-9 (NGK) (OPT) (US & CANADA)SPARK PLUG, DPR8EA-9 (NGK) (OPT) (US & CANADA)
-
3409482-00335 SPARK PLUG, X24EPR-U9 (ND) (OPT) (US & CANADA)SPARK PLUG, X24EPR-U9 (ND) (OPT) (US & CANADA)
-
3409482-00223 SPARK PLUG, X24ESR-U (ND) (OPT) (CALIF. ONLY)SPARK PLUG, X24ESR-U (ND) (OPT) (CALIF. ONLY)
-
3409482-00224 SPARK PLUG, X27ESR-U (ND) (OPT) (CALIF. ONLY)SPARK PLUG, X27ESR-U (ND) (OPT) (CALIF. ONLY)
-
3409482-00399 SPARK PLUG, DR8EA (NGK) (OPT) (CALIF. ONLY)SPARK PLUG, DR8EA (NGK) (OPT) (CALIF. ONLY)
-
3409482-00400 SPARK PLUG, DR9EA (NGK) (OPT) (CALIF. ONLY)SPARK PLUG, DR9EA (NGK) (OPT) (CALIF. ONLY)
-
3511181-41F00 UNION, CYLINDER HEAD OUTLETUNION, CYLINDER HEAD OUTLET
-
3611182-38A00 O RING, OUTLET UNIONO RING, OUTLET UNION
-
3707130-0620B BOLTBOLT
-
3809301-08007 BUSH, HEAD COVER BOLTBUSH, HEAD COVER BOLT
-
3917891-41F10 UNION, CYLINDER HEAD JOINTUNION, CYLINDER HEAD JOINT
-
4007130-0612B BOLT, JOINT UNIONBOLT, JOINT UNION
-
4109280-16005 O RINGO RING
-
4217854-41F01 HOSE, HEAD JOINTHOSE, HEAD JOINT
-
4309402-28513 CLAMP, JOINTCLAMP, JOINT
-
4413650-57F00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
4509168-12017 GASKETGASKET
