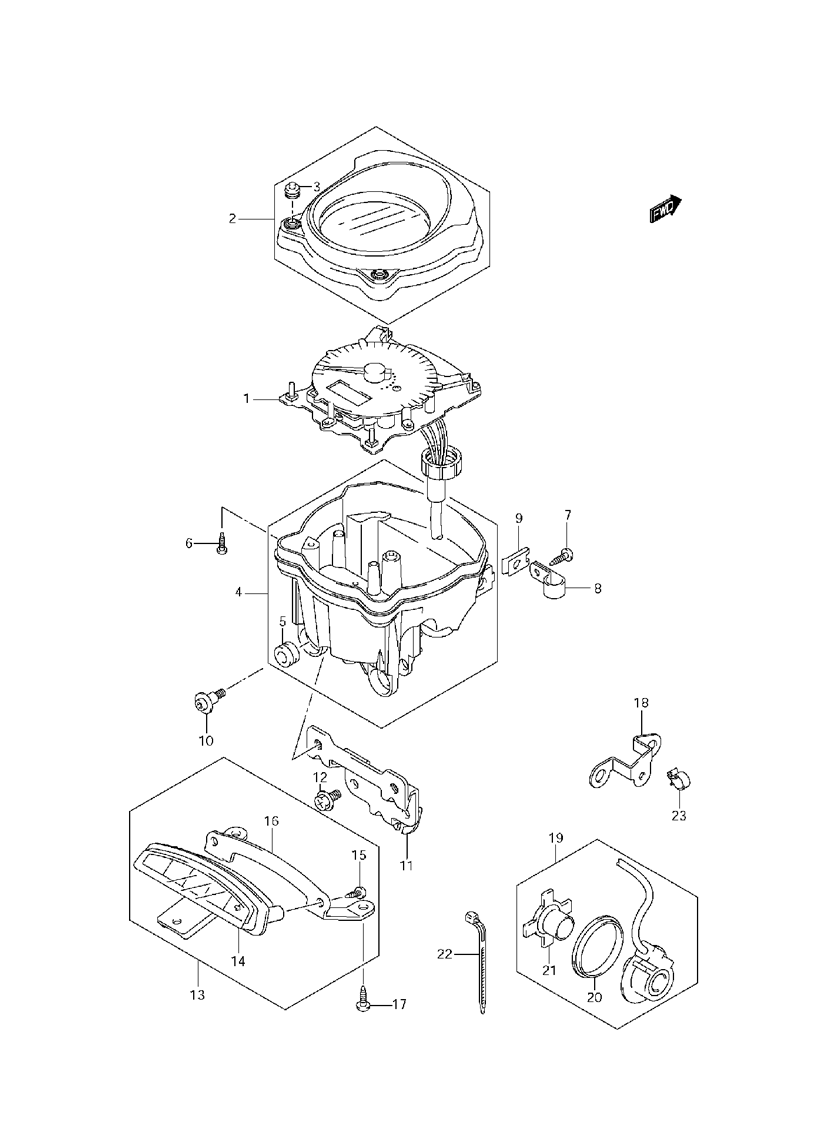

SPEEDOMETER для Suzuki VZ800T K9 - 2009 года выпуска`
-
№АртикулНазвание
-
134120-39GB0 SPEEDOMETER (VZ800Z) (US)SPEEDOMETER (VZ800Z) (US)
-
134120-39GA0 SPEEDOMETER (VZ800Z) (CANADA)SPEEDOMETER (VZ800Z) (CANADA)
-
234150-39G00 CASE ASSY, UPPER (INCLUDES ITEM(S) 3)CASE ASSY, UPPER (INCLUDES ITEM(S) 3)
-
334124-39G00 SWITCH, RUBBERSWITCH, RUBBER
-
434111-39G00 CASE ASSY, LOWER (INCLUDES ITEM(S) 5)CASE ASSY, LOWER (INCLUDES ITEM(S) 5)
-
534955-33E00 CUSHION, METERCUSHION, METER
-
634383-35F00 SCREW (3X16)SCREW (3X16)
-
703541-0412A SCREW (4X12)SCREW (4X12)
-
834176-19F20 CLAMPCLAMP
-
994484-24F00 NUT, SPRINGNUT, SPRING
-
1034149-18G00 SCREW, SPEEDOMETERSCREW, SPEEDOMETER
-
1134162-39G00 BRACKET, SPEEDOMETERBRACKET, SPEEDOMETER
-
1202162-0612B SCREW, BRACKETSCREW, BRACKET
-
1336380-39G10 BOX ASSY, PILOT LAMP (INCLUDES ITEM(S) 14 - 16)BOX ASSY, PILOT LAMP (INCLUDES ITEM(S) 14 - 16)
-
1436381-39G10 CASE UNITCASE UNIT
-
1503241-0512A SCREWSCREW
-
1636386-39G00 BRACKETBRACKET
-
1703511-0512B SCREW, PILOT BOXSCREW, PILOT BOX
-
1834938-39G10 GUIDE, SPEED SENSORGUIDE, SPEED SENSOR
-
1934990-39G00 SENSOR, SPEED (INCLUDES ITEM(S) 20 - 21)SENSOR, SPEED (INCLUDES ITEM(S) 20 - 21)
-
2009286-44001 SEALSEAL
-
2134983-27G00 MAGNETMAGNET
-
2209407-14407 CLAMP (L:145)CLAMP (L:145)
-
2309403-06410 CLIP, SENSOR LEADCLIP, SENSOR LEAD
