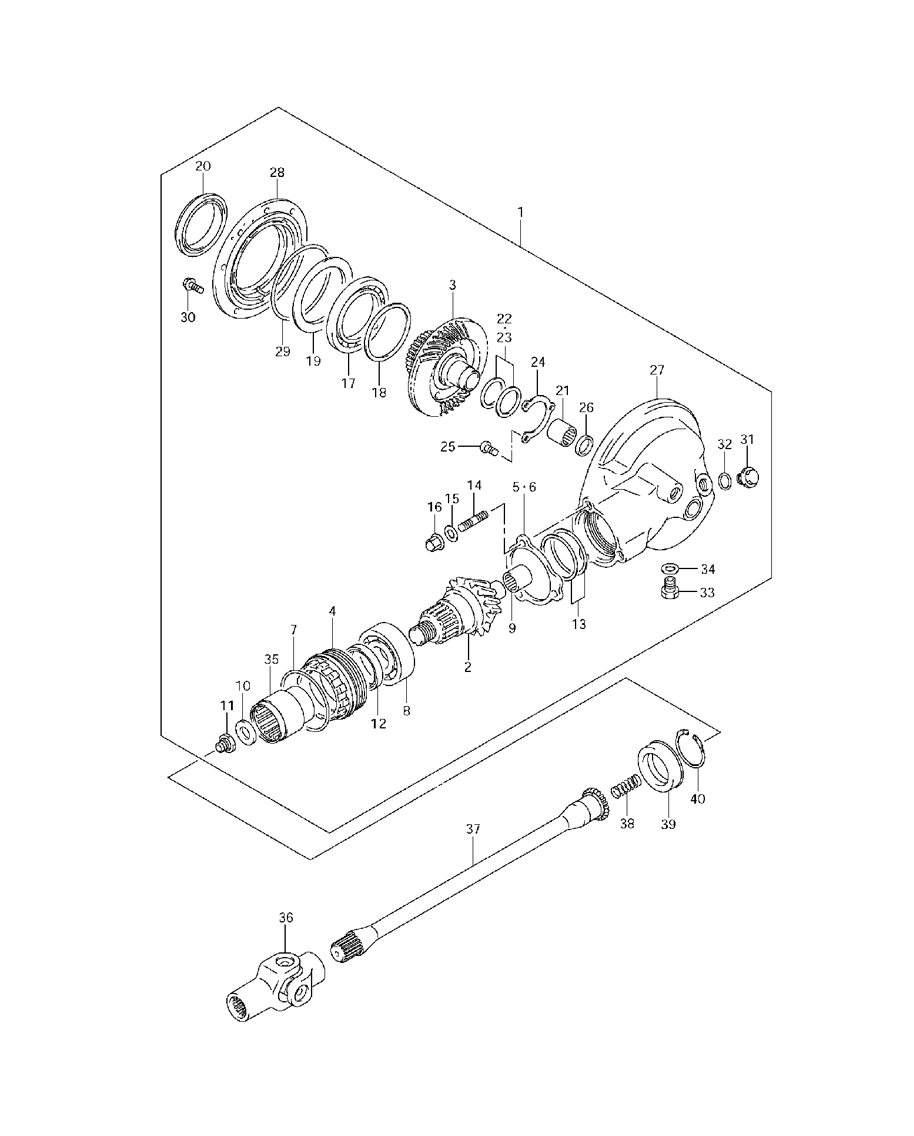

DRIVE SHAFT W/ FINAL DRIVE GEAR для Suzuki VZ800T K9 - 2009 года выпуска`
-
№АртикулНазвание
-
127300-38890 GEAR AND CASE SET, FINAL BEVEL (INCLUDES ITEM(S) 2 - 35)GEAR AND CASE SET, FINAL BEVEL (INCLUDES ITEM(S) 2 - 35)
-
227311-38A00 GEAR, FINAL DRIVE BEVELGEAR, FINAL DRIVE BEVEL
-
327320-45C01 GEAR, FINAL DRIVEN BEVELGEAR, FINAL DRIVEN BEVEL
-
427312-38A00 STOPPER, BEARINGSTOPPER, BEARING
-
527313-38A00 PLATEPLATE
-
627313-38A10 PLATEPLATE
-
709280-62002 O RING (D:1.9,ID:61.6)O RING (D:1.9,ID:61.6)
-
809267-30005 BEARING (30X62X23.8)BEARING (30X62X23.8)
-
909263-17028 BEARING (17X32X16)BEARING (17X32X16)
-
1009160-16029 WASHER (16X29X4)WASHER (16X29X4)
-
1109159-16010 NUTNUT
-
1209283-38009 OIL SEAL (38X54X6)OIL SEAL (38X54X6)
-
1327445-38810 SHIM SET, FINAL (T:0.3/0.35/0.4 0.5/0.6)SHIM SET, FINAL (T:0.3/0.35/0.4 0.5/0.6)
-
1409108-10095 STUD BOLTSTUD BOLT
-
1509164-10008 LOCK WASHERLOCK WASHER
-
1609159-10026 NUTNUT
-
1709262-70001 BEARING, RIGHT HAND (70X110X13)BEARING, RIGHT HAND (70X110X13)
-
1827327-34810 SHIM SET, DRIVE GEAR BEARING (T:0.35/0.4 0.5/0.6)SHIM SET, DRIVE GEAR BEARING (T:0.35/0.4 0.5/0.6)
-
1927328-34200 PLATEPLATE
-
2009289-70001 OIL SEAL, RIGHT HAND (70X96X16)OIL SEAL, RIGHT HAND (70X96X16)
-
2109263-32007 BEARING, LEFT HAND (32X46X17.7)BEARING, LEFT HAND (32X46X17.7)
-
2227326-34820 SHIM SET, FINAL DRIVE GEAR (T:1.05/1.1/1.2 1.25/1.35)SHIM SET, FINAL DRIVE GEAR (T:1.05/1.1/1.2 1.25/1.35)
-
2327326-34810 SHIM SET, FINAL DRIVE GEAR (T:1.40/1.45/1.50)SHIM SET, FINAL DRIVE GEAR (T:1.40/1.45/1.50)
-
2427329-34200 RETAINER, BEARINGRETAINER, BEARING
-
2502112-0612B SCREWSCREW
-
2609283-30028 OIL SEAL (30X42X7)OIL SEAL (30X42X7)
-
2727450-38A60 CASE, FINAL GEARCASE, FINAL GEAR
-
2827460-07A01 CASE, FINAL GEAR BEARINGCASE, FINAL GEAR BEARING
-
2909280-00015 O RING (D:3.5,ID:131.6)O RING (D:3.5,ID:131.6)
-
3001550-0825A BOLTBOLT
-
3109247-18001 PLUG, OIL FILLERPLUG, OIL FILLER
-
3209280-18004 O RING (D:2.4,ID:17.8)O RING (D:2.4,ID:17.8)
-
3309247-14002 PLUG, OIL DRAINPLUG, OIL DRAIN
-
3409168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
3527172-38A00 COUPLING, PROPELLER SHAFTCOUPLING, PROPELLER SHAFT
-
3627100-38A50 YOKE, UNIVERSAL JOINTYOKE, UNIVERSAL JOINT
-
3727151-41F00 SHAFT, PROPELLERSHAFT, PROPELLER
-
3809440-18019 SPRINGSPRING
-
3909283-30051 OIL SEAL (30X48X15)OIL SEAL (30X48X15)
-
4009381-40003 CIRCLIPCIRCLIP
