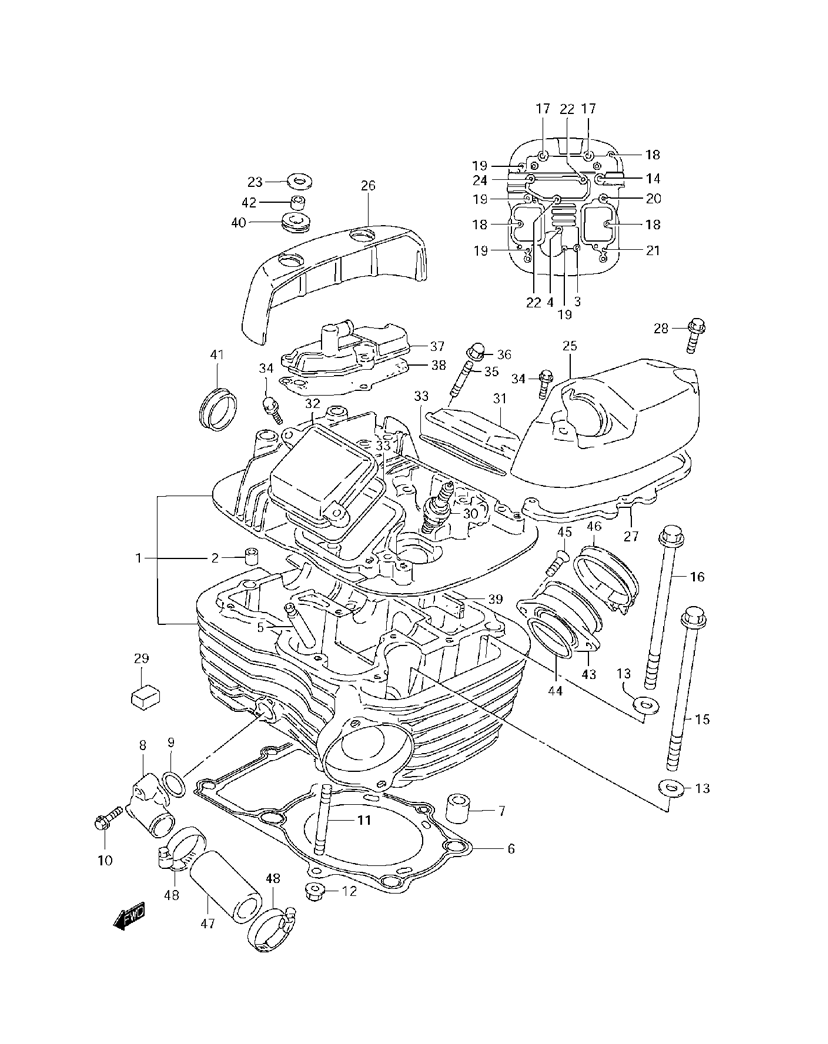

CYLINDER HEAD (REAR) для Suzuki VS800 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
111103-39A60 HEAD ASSY, CYLINDER REAR (INCLUDES ITEM(S) 2 - 4)HEAD ASSY, CYLINDER REAR (INCLUDES ITEM(S) 2 - 4)
-
209206-11004 PINPIN
-
309103-06101 BOLT (6X50)BOLT (6X50)
-
409103-06102 BOLT (6X55)BOLT (6X55)
-
511115-38A71 GUIDE, VALVE (OS:0.3)GUIDE, VALVE (OS:0.3)
-
611142-45C00 GASKET, CYLINDER HEAD REARGASKET, CYLINDER HEAD REAR
-
704211-13189 PINPIN
-
811169-45C10 UNION, CYLINDER HEAD WATERUNION, CYLINDER HEAD WATER
-
909280-18004 O RING (D:2.4,ID:17.8)O RING (D:2.4,ID:17.8)
-
1001547-0625B BOLTBOLT
-
1101421-0840A STUD BOLT (L:40)STUD BOLT (L:40)
-
1208316-1008B NUTNUT
-
1309160-10039 WASHERWASHER
-
1409103-08040 BOLT (8X140)BOLT (8X140)
-
1509103-10133 BOLT (10X155)BOLT (10X155)
-
1609103-10134 BOLT (10X165)BOLT (10X165)
-
1709103-08180 BOLT (8X245)BOLT (8X245)
-
1801550-0625B BOLTBOLT
-
1901550-0630B BOLTBOLT
-
2007120-0630B BOLTBOLT
-
2101550-0640B BOLTBOLT
-
2209103-06102 BOLT (6X55)BOLT (6X55)
-
2309160-08130 WASHERWASHER
-
2401550-0620B BOLTBOLT
-
2511173-38A03 CAP, HEAD COVER LEFT HANDCAP, HEAD COVER LEFT HAND
-
2611174-38A02 CAP, HEAD COVER RIGHT HANDCAP, HEAD COVER RIGHT HAND
-
2711273-38A01 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
2801244-06357 BOLTBOLT
-
2911152-38A00 PAD, RUBBERPAD, RUBBER
-
3009482-00334 SPARK PLUG (NGK,DPR8EA-9) (STD)SPARK PLUG (NGK,DPR8EA-9) (STD)
-
3009482-00335 SPARK PLUG (ND,X24EPR-U9) (STD)SPARK PLUG (ND,X24EPR-U9) (STD)
-
3009482-00354 SPARK PLUG (NGK,DPR7EA-9) (OPT)SPARK PLUG (NGK,DPR7EA-9) (OPT)
-
3009482-00355 SPARK PLUG (ND,X22EPR-U9) (OPT)SPARK PLUG (ND,X22EPR-U9) (OPT)
-
3009482-00330 SPARK PLUG (NGK,DPR9EA-9) (OPT)SPARK PLUG (NGK,DPR9EA-9) (OPT)
-
3009482-00331 SPARK PLUG (ND,X27EPR-U9) (OPT)SPARK PLUG (ND,X27EPR-U9) (OPT)
-
3111175-38A11 CAP, INSPECTION INCAP, INSPECTION IN
-
3211176-38A11 CAP, INSPECTION EXCAP, INSPECTION EX
-
3311177-38A00 GASKET, INSPECTION CAPGASKET, INSPECTION CAP
-
3401547-0620B BOLTBOLT
-
3509108-06102 STUD BOLTSTUD BOLT
-
3608313-2006B NUTNUT
-
3711186-38A02 COVER, BREATHERCOVER, BREATHER
-
3811187-38A02-H17 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
3911179-38A00 PLATE, HEAD COVERPLATE, HEAD COVER
-
4009320-13015 CUSHIONCUSHION
-
4109241-30004 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
4209301-08007 BUSHBUSH
-
4313102-45C00 PIPE, INTAKE REAR (INCLUDES ITEM(S) 44)PIPE, INTAKE REAR (INCLUDES ITEM(S) 44)
-
4409280-40010 O RING (D:2.4,ID:39.7)O RING (D:2.4,ID:39.7)
-
4501550-0616B BOLTBOLT
-
4609402-52501 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
4717854-38A00 HOSE, CYLINDER HEAD JOINTHOSE, CYLINDER HEAD JOINT
-
4809402-28511 CLAMPCLAMP
