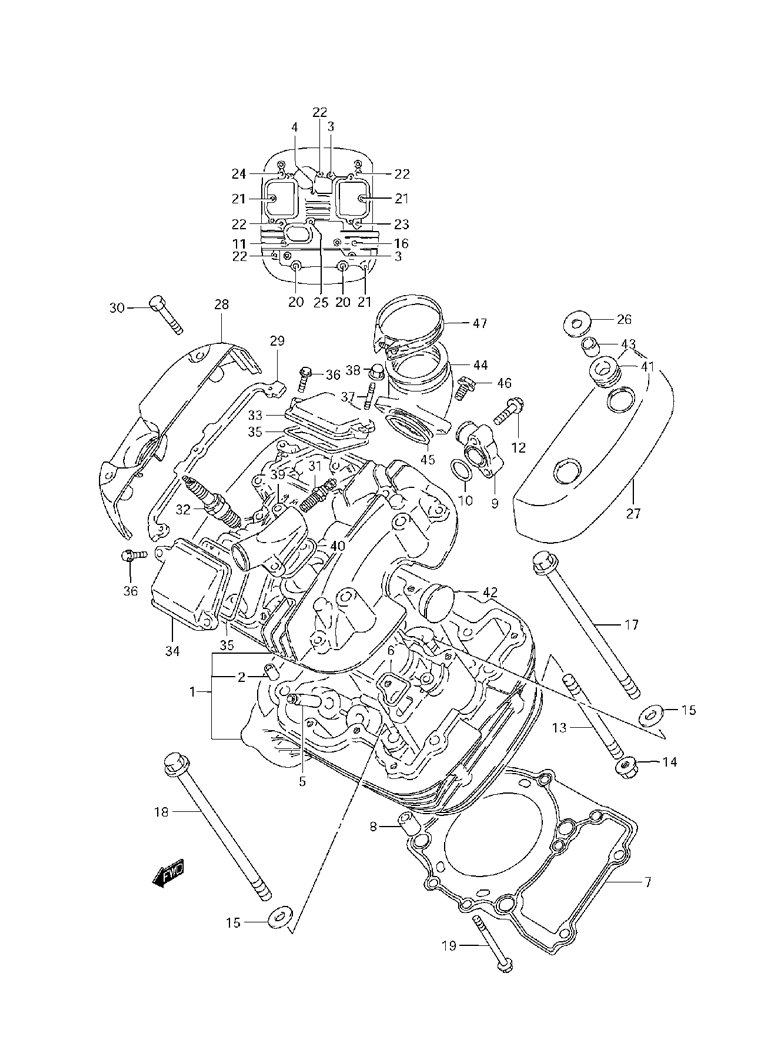

CYLINDER HEAD (FRONT) для Suzuki VS800 K9 - 2009 года выпуска`
-
№АртикулНазвание
-
111101-39A50 HEAD ASSY, CYLINDER FRONT (INCLUDES ITEM(S) 2 - 4)HEAD ASSY, CYLINDER FRONT (INCLUDES ITEM(S) 2 - 4)
-
111101-39A60 HEAD ASSY, CYLINDER FRONT (INCLUDES ITEM(S) 2 - 4)HEAD ASSY, CYLINDER FRONT (INCLUDES ITEM(S) 2 - 4)
-
209206-11004 PINPIN
-
309103-06101 BOLT (6X50)BOLT (6X50)
-
409103-06102 BOLT (6X55)BOLT (6X55)
-
511115-38A71 GUIDE, VALVE (OS:0.3)GUIDE, VALVE (OS:0.3)
-
611123-38A00 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
711141-45C00 GASKET, CYLINDER HEAD FRONTGASKET, CYLINDER HEAD FRONT
-
804211-13189 PINPIN
-
911169-45C10 UNION, CYLINDER HEAD WATERUNION, CYLINDER HEAD WATER
-
1009280-18004 O RING (D:2.4,ID:17.8)O RING (D:2.4,ID:17.8)
-
1101550-0620B BOLTBOLT
-
1201547-0625B BOLTBOLT
-
1301421-0840A STUD BOLT (L:40)STUD BOLT (L:40)
-
1408316-1008B NUTNUT
-
1509160-10039 WASHERWASHER
-
1609103-08040 BOLT (8X140)BOLT (8X140)
-
1709103-10133 BOLT (10X155)BOLT (10X155)
-
1809103-10134 BOLT (10X165)BOLT (10X165)
-
1901550-0640B BOLTBOLT
-
2009103-08180 BOLT (8X245)BOLT (8X245)
-
2101550-0625B BOLTBOLT
-
2201550-0630B BOLTBOLT
-
2307120-0630B BOLTBOLT
-
2401550-0640B BOLTBOLT
-
2509103-06102 BOLT (6X55)BOLT (6X55)
-
2609160-08130 WASHER (8.5X24X1.6)WASHER (8.5X24X1.6)
-
2711171-38A02 CAP, HEAD COVER LEFT HANDCAP, HEAD COVER LEFT HAND
-
2811172-38A03 CAP, HEAD COVER RIGHT HANDCAP, HEAD COVER RIGHT HAND
-
2911272-38A00 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
3001244-06407 BOLTBOLT
-
3134850-21E00 SENDING UNIT, WATER TEMPSENDING UNIT, WATER TEMP
-
3209482-00334 SPARK PLUG (NGK,DPR8EA-9) (STD)SPARK PLUG (NGK,DPR8EA-9) (STD)
-
3209482-00335 SPARK PLUG (ND,X24EPR-U9) (STD)SPARK PLUG (ND,X24EPR-U9) (STD)
-
3209482-00354 SPARK PLUG (NGK,DPR7EA-9) (OPT)SPARK PLUG (NGK,DPR7EA-9) (OPT)
-
3209482-00355 SPARK PLUG (ND,X22EPR-U9) (OPT)SPARK PLUG (ND,X22EPR-U9) (OPT)
-
3209482-00330 SPARK PLUG (NGK,DPR9EA-9) (OPT)SPARK PLUG (NGK,DPR9EA-9) (OPT)
-
3209482-00331 SPARK PLUG (ND,X27EPR-U9) (OPT)SPARK PLUG (ND,X27EPR-U9) (OPT)
-
3311175-38A11 CAP, INSPECTION INCAP, INSPECTION IN
-
3411176-38A11 CAP, INSPECTION EXCAP, INSPECTION EX
-
3511177-38A00 GASKET, INSPECTION CAPGASKET, INSPECTION CAP
-
3601547-0620B BOLTBOLT
-
3709108-06102 STUD BOLTSTUD BOLT
-
3808313-2006B NUTNUT
-
3911181-38A02 UNION, WATER OUTLETUNION, WATER OUTLET
-
4011182-38A00 GASKET, WATER UNIONGASKET, WATER UNION
-
4109320-13015 CUSHIONCUSHION
-
4209241-30004 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
4309301-08007 BUSHBUSH
-
4413101-38E00 PIPE, INTAKE FRONT (INCLUDES ITEM(S) 45)PIPE, INTAKE FRONT (INCLUDES ITEM(S) 45)
-
4509280-40010 O RING (D:2.4,ID:39.7)O RING (D:2.4,ID:39.7)
-
4602122-0620B BOLTBOLT
-
4709402-52501 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
